IXPE Foam Underlayment
IXPE Foam Underlayment
IXPE Foam Underlayment IXPE Foam Underlayment IXPE Foam Underlayment IXPE Foam Underlayment
Request a Quote

IXPE Foam Underlayment

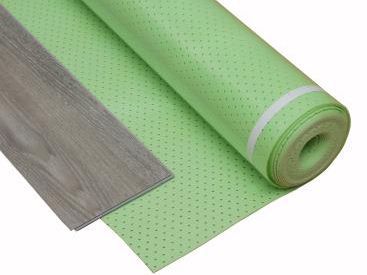

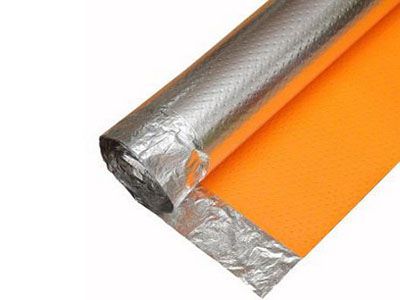

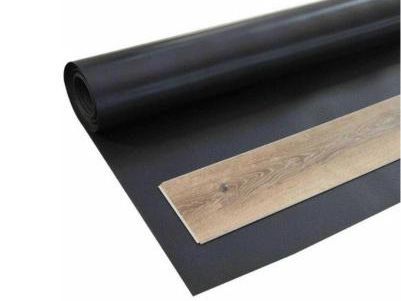

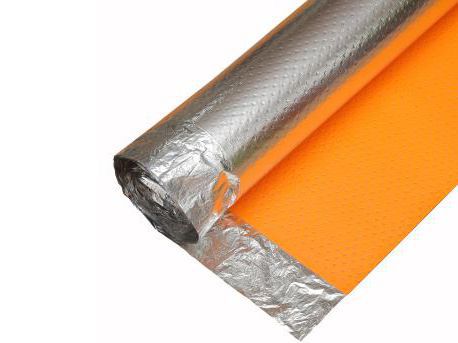

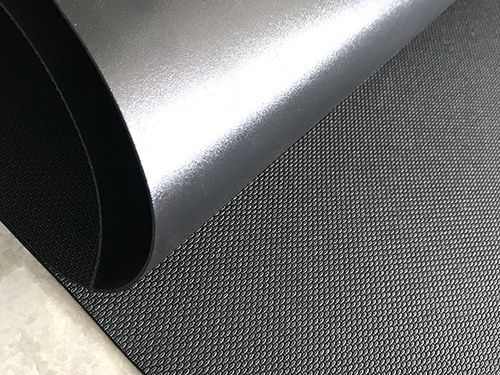

IXPE foam underlayment, or irradiation cross-linked polyethylene foam underlayment, is one of the best sound insulation and moisture resistant product for indoor subfloor installation. It is a cross-linked, closed-cell polyethylene foam underlayment with excellent performance in water resistance, noise reduction, thermal insulation, and helps prolong the service life of floor. IXPE foam underlayment is suitable for use under hardwood, bamboo, laminate, engineered wood, WPC, PVC, LVT, SPC and other floors. The underlayment surface can be coated with PE film, aluminum film and fireproof aluminum foil for enhancement, or added with anti-slip pattern.


Features
  • Superior compression/tension characteristics
  • Thermal absorption
  • Moisture resistance
  • Antibacterial
  • Sound reduction
Basic Information
  • Material: IXPE (irradiation cross-linked polyethylene)
  • Density: 10B (100kg/m³), 12B (80kg/m³), 15B (66kg/m³)
  • Width: 110-380mm (can be cut into rolls, customizable width)
  • Thickness: 1mm, 1.5mm, 2mm (customizable thickness)
  • Color: black, white, grey (customizable color)
  • Flame retardant: UL94 HF-1, GB8624-B1

Technical Data
Item Size in roll
Plain IXPE - Density: 33 kg/m³, Thickness: 2mm, 3mm
- Density: 65 kg/m³, Thickness: 1.0mm, 1.5mm, 2mm
- Density: 100kg/m³, Thickness: 1.5mm, 2mm
- Width:1.0 m, 1.1m, or as request
- Length: 200~300m, or as request
- Normal colors: gray and black
Embossed IXPE
Punched IXPE
Supreme IXPP
Damping mat - Density: 33kg/m³, Thickness: 5mm, black
·For use under: all laminated, all engineered, all wood flooring
·For installation on: all types of sub-flooring, concrete
