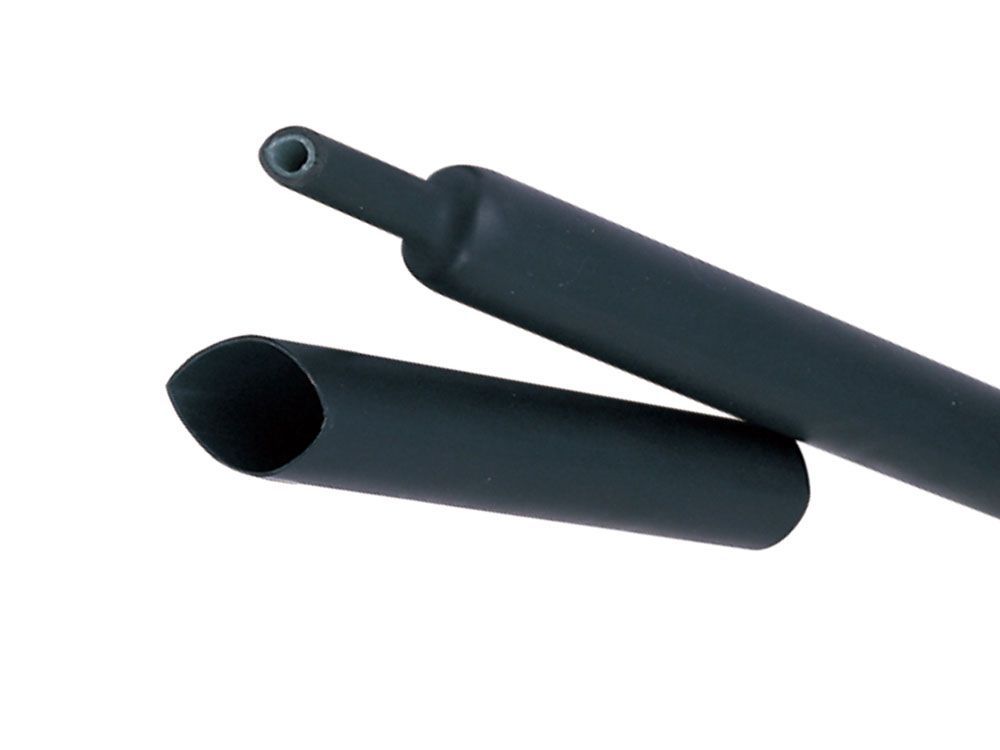

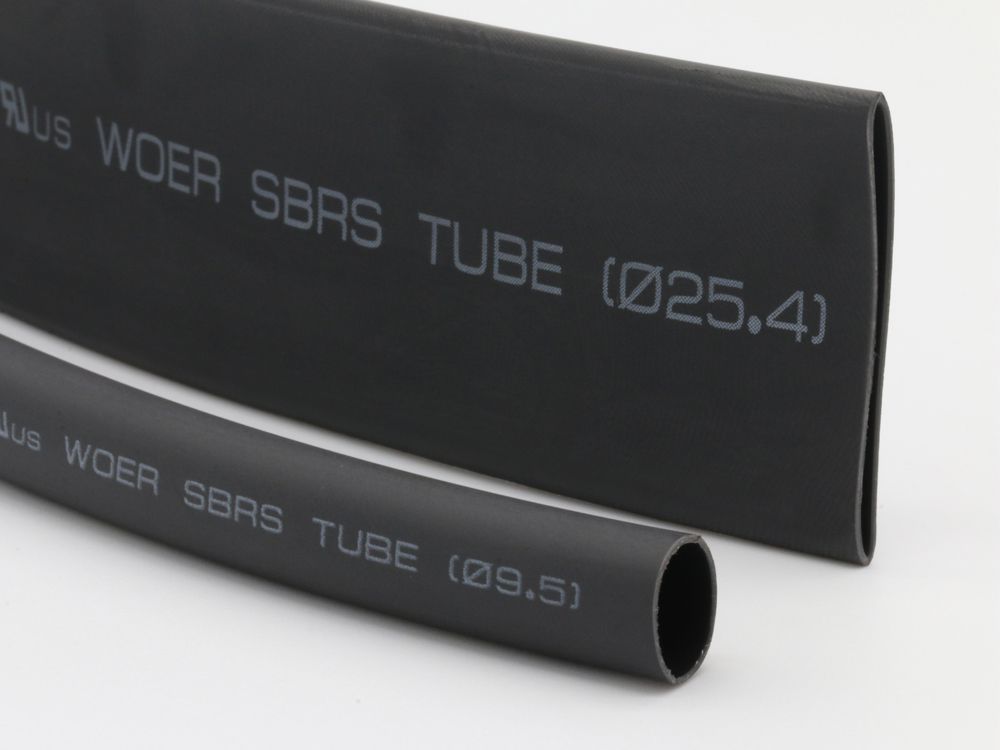

Dual Wall Heat Shrink Tubing
Model: SBRS-(3X)GLW
Flexible, thick wall, adhesive-lined heat shrinkable tubing
SBRS-(3X)GLW flexible, thick wall, adhesive-lined heat shrinkable tubing is made from polyolefin through co-extrusion process, and using hot-melt adhesive. This dual wall heat shrink tubing is designed for both insulation and sealing of complex parts, and protection of wire bundles and metal tubes against water and moisture.
Features
- Flexible
- Low longitudinal shrinkage
- Thick adhesive liner bonding to a wide variety of plastics, rubber and metals, forming an effective barrier against fluids and moisture
- Continuous operating temperature: -45℃～125℃
- Min shrink temperature: 110℃
- Shrink ratio: 3:1
| Property | Test Method | Standard Performance | Typical Performance |
| Tensile strength (MPa) | ASTM D 2671 | ≥10.4 | 11 |
| Elongation (%) | ASTM D 2671 | ≥300 | 450 |
| Tensile strength after aging (MPa) | UL224 158℃×168hr | ≥7.3 | 8.5 |
| Elongation after aging (%) | UL224 158℃×168hr | ≥200 | 350 |
| Dielectric strength (kV/mm) | IEC 60243 | ≥15 | 17.5 |
| Volume resistivity (Ω.cm) | IEC 60093 | ≥1×1014 | 2.5×1014 |
| Property | Test Method | Standard Performance |
| Water absorption | ASTM D 570 | ＜0.2% |
| Softening point (℃) | ASTM E 28 | 90±5 |
| Peel strength (PE) | ASTM D 1000 | 120N/25mm |
| Peel strength (AL) | ASTM D 1000 | 80N/25mm |
| Size | Expanded | After Recovery | Standard Package | |||
| inch | mm | Internal Diameter (mm) | Internal Diameter (mm) | Total Wall Thickness (mm) | Adhesive Thickness (mm) | Spool Length (m/spool) |
| 1/8 | 3.2 | 3.2 | 1.0 | 0.95±0.15 | 0.45±0.10 | 200 |
| 3/16 | 4.8 | 4.8 | 1.6 | 1.20±0.15 | 0.60±0.10 | 100 |
| 1/4 | 6.4 | 6.4 | 2.2 | 1.35±0.15 | 0.70±0.10 | 100 |
| 5/16 | 7.9 | 7.9 | 2.7 | 1.50±0.15 | 0.75±0.10 | 100 |
| 3/8 | 9.5 | 9.5 | 3.2 | 1.50±0.15 | 0.75±0.10 | 50 |
| 1/2 | 12.7 | 12.7 | 4.2 | 1.80±0.20 | 0.90±0.10 | 1.22 or 25m/roll |
| 5/8 | 15.0 | 15.0 | 5.2 | 1.80±0.20 | 0.90±0.10 | 1.22 or 25m/roll |
| 3/4 | 19.1 | 19.1 | 6.3 | 2.00±0.20 | 1.00±0.10 | 1.22 or 25m/roll |
| 1 | 25.4 | 25.4 | 8.5 | 2.10±0.20 | 1.05±0.10 | 1.22 or 25m/roll |
| 1-1/4 | 30.0 | 30.0 | 10.2 | 2.20±0.20 | 1.05±0.10 | 1.22 or 25m/roll |
| 1-1/2 | 38.1 | 38.1 | 13.5 | 2.40±0.20 | 1.15±0.10 | 1.22 or 25m/roll |
