Expandable Sleeving, WPET
Expandable Sleeving, WPET
Expandable Sleeving, WPET Expandable Sleeving, WPET
Request a Quote

Expandable Sleeving

Model: WPET

Non-heat shrinkable tubing

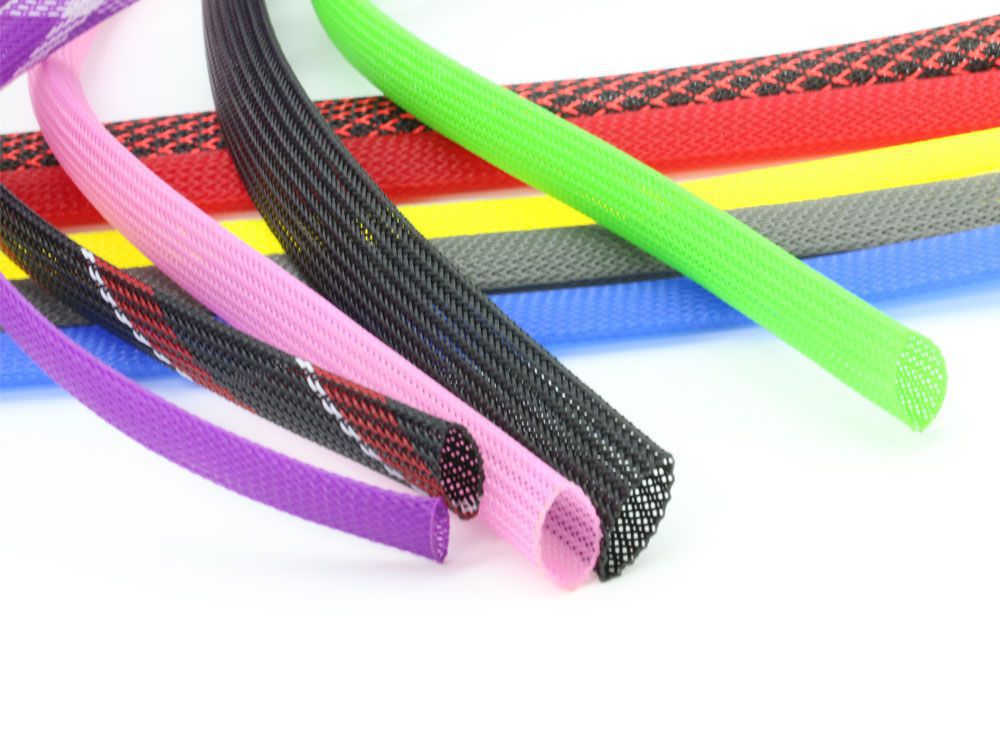

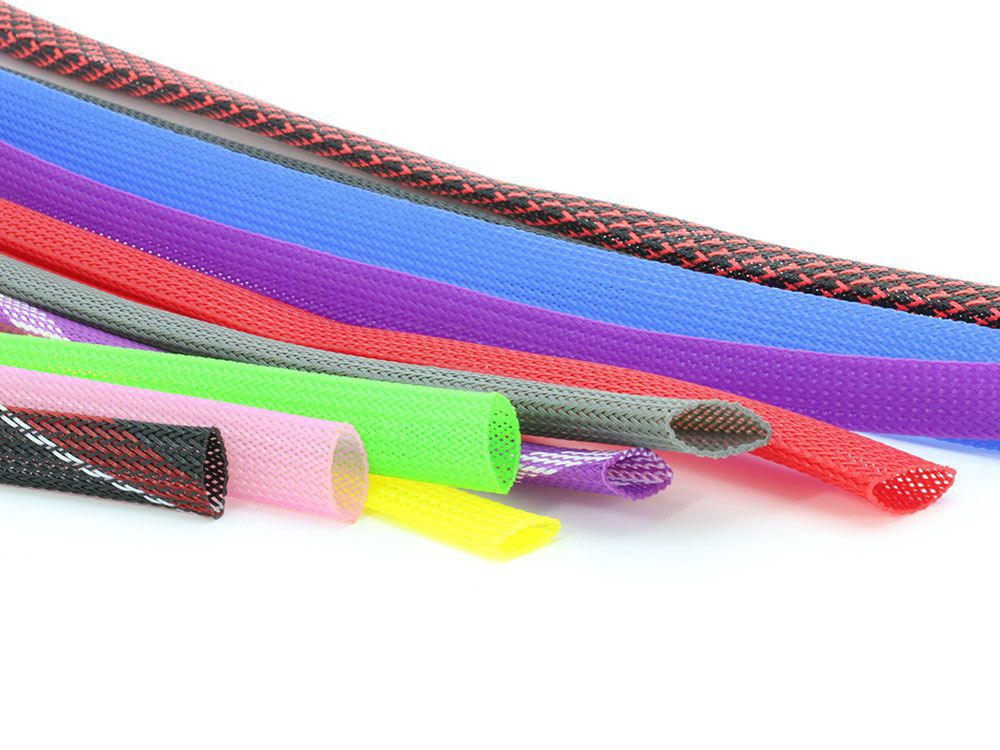

WPET expandable sleeving is made from polyethylene terephthalate (PET) material, it is primarily used to wrap and protect bundle of wires, wire harnesses and hoses. PET expandable sleeving is an ideal option for general purpose applications of wire management and bundling in industrial, automotive, and many other industries.


Features
  • Good flexibility, easy to bend
  • Excellent abrasion resistance
  • Convenient installation
  • Continuous operating temperature: -50℃~150℃
  • Fusing point: 240℃±10℃
  • Flame retardant rating: self-extinguish
  • Color: black or other colors upon request

Technical Data
Property Test Method Performance
Operating temperature range \ -50°C〜150°C
Flammability UL94 V-2
Tensile strength ASTM D-2256 >55000psi
Moisture adsorption ASTM D-570 < 0.08%
Melt temperature ASTM D2117 240±10C
Low temperature flexibility MILI 23053 -70 C
Environmental protection standard \ RoHS2.0, REACH
UL code \ E490480
WPET Specification selection

The type of the product should be selected according to 4 set of parameters (A, B, C, D):

  • A- Fiber number of each group
  • B- Diameter of single fiber
  • C- Number of group
  • D- The points of 1 inch flat tube (weave density)

Specification description: PET braided tube is made of 72 strands of three 0.25mm monofilaments, with braid density of 8

Dimensions
Specification Selection Sheet
Mode Normal Size (mm) Expansion Range (mm) Recommend Type Package (m/roll)
Min. Max.
WPET-02 2 1 5 1×0.20×24 500m/roll
WPET-03 3 1 6 1×0.20×32 500m/roll
1×0.25×24 500m/roll
WPET-04 4 2 8 1×0.20×40 500m/roll
1×0.25×32 500m/roll
3×0.20×24 500m/roll
WPET-05 5 3 10 1×0.20×48 500m/roll
1×0.25×40 500m/roll
WPET-06 6 4 12 1×0.20×56 500m/roll
1×0.25×48 500m/roll
3×0.20×32 500m/roll
WPET-07 7 5 14 1×0.20×64 500m/roll
1×0.25×56 500m/roll
WPET-08 8 6 15 1×0.25×64 500m/roll
3×0.25×24 500m/roll
WPET-10 10 7 20 3×0.20×40 500m/roll
3×0.25×32 500m/roll
WPET-12 12 8 24 3×0.20×48 500m/roll
3×0.25×40 250m/roll
WPET-14 14 10 28 3×0.20×56 500m/roll
3×0.25×48 250m/roll
WPET-16 16 11 26 4×0.25×48 250m/roll
WPET-18 18 12 32 3×0.20×64 500m/roll
3×0.25×56 250m/roll
WPET-20 20 12 38 3×0.20×72 250m/roll
3×0.25×64 250m/roll
4×0.20×64 250m/roll
WPET-25 25 14 39 3×0.20×96 250m/roll
3×0.25×72 250m/roll
4×0.20×72 200m/roll
4×0.25×64 200m/roll
WPET-28 28 15 42 3×0.20×120 250m/roll
3×0.25×80 200m/roll
4×0.25×72 100m/roll
WPET-32 32 16 46 3×0.25×96 150m/roll
4×0.20×96 200m/roll
WPET-35 35 18 50 5×0.25×72 100m/roll
WPET-38 38 20 57 3×0.25×120 100m/roll
WPET-40 40 22 60 4×0.25×96 100m/roll
WPET-45 45 25 70 4×0.25×120 100m/roll
5×0.25×96 100m/roll
WPET-50 50 30 85 5×0.25×120 100m/roll
WPET-60 60 35 95 6×0.25×120 50m/roll
WPET-70 70 40 110 4×0.38×120 50m/roll
7×0.25×120 50m/roll
Note:
  • Normal lay flat width is the data without force. The normal lay flat width data have deviations because of its expandable. So it cannot be used as a production parameter, only for reference.
  • Please inform us the outer diameter, tightness or other requirements of the sleeving. We would recommend the model as required.
