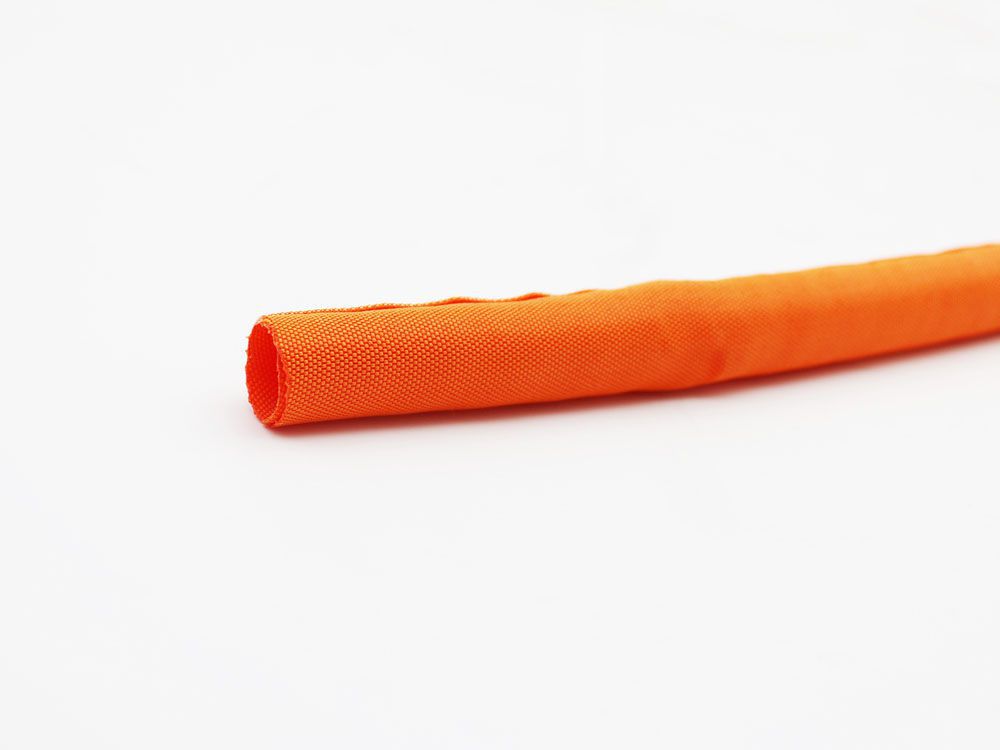

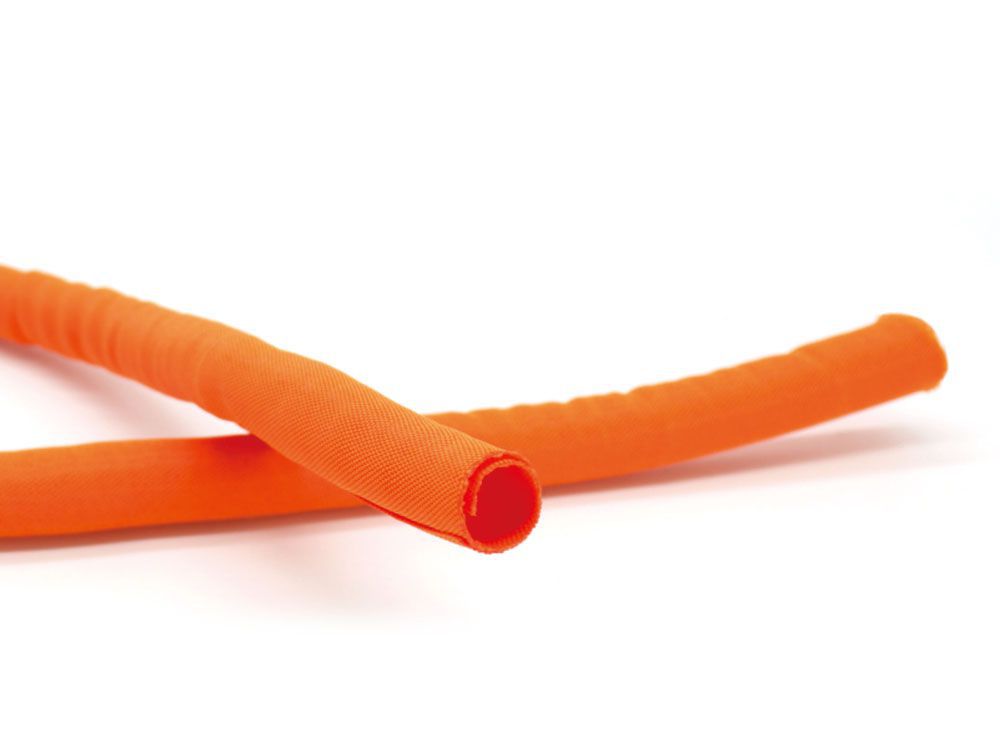

Self-Closing Sleeving
Model: WPET-SCG
Non-heat shrinkable tubing

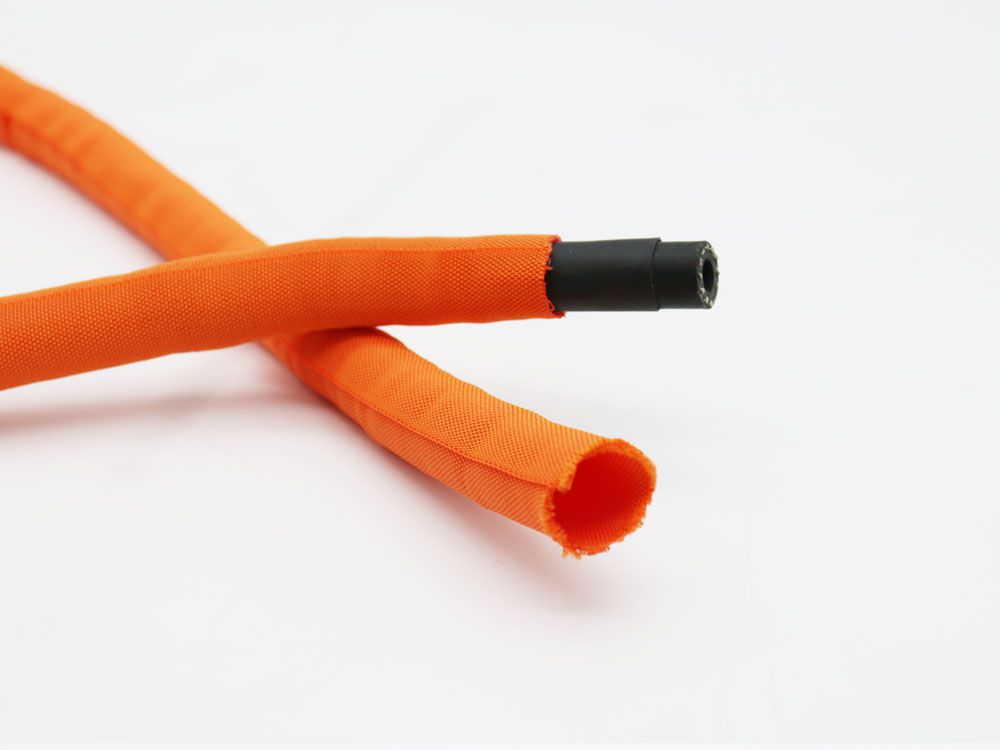

WPET-SCG self-closing sleeving is spun by polyester monofilament and polyester multifilament, offering excellent performance in fireproofing, abrasion resistance, softness and dust tightness. The open design of the self-closing sleeving can facilitate the replacement, reassembly and maintenance of the inner wires, and its high flexibility allows it to bend and coil to adapt to irregular wiring harnesses. This self-closing sleeving can be widely employed for protecting wires, cables and flexible tubing in high-speed train, automobile, automation equipment.
Technical Data
Property | Performance |
Material | Polyester monofilament + polyester multifilament |
Superposition | ≥25% |
Operating temperature | -50℃~+150℃ |
Melting point | 240±10℃ |
Fireproofing grade | EN45545-2 |
Abrasive resistance | ISO6722, 7N load, friction number ≥5000 |
Flame retardant grade | VW-1 |
Environmental standard | ROHS |
Color | Black, orange, and other color is available for requirement |
Cutting method | Hot-cutting |
Type | Inner Diameter (mm) | Max. Outer Diameter (mm) | Unfolding Width (mm) | Package (m/roll) |
5.0 | 6.0 | 28±2 | 100 | |
8.0 | 9.0 | 40±2 | 100 | |
10.0 | 11.0 | 50±5 | 100 | |
13.0 | 14.0 | 60±5 | 50 | |
16.0 | 17.0 | 80±5 | 25 | |
19.0 | 20.0 | 105±5 | 25 | |
25.0 | 27.0 | 125±8 | 25 | |
31.0 | 33.0 | 155±8 | 25 |
Note: thickness is 0.60±0.1mm and different cutting lengths are available.
