Special Purpose Heat Shrink Tubing

Model: RSFR-DR

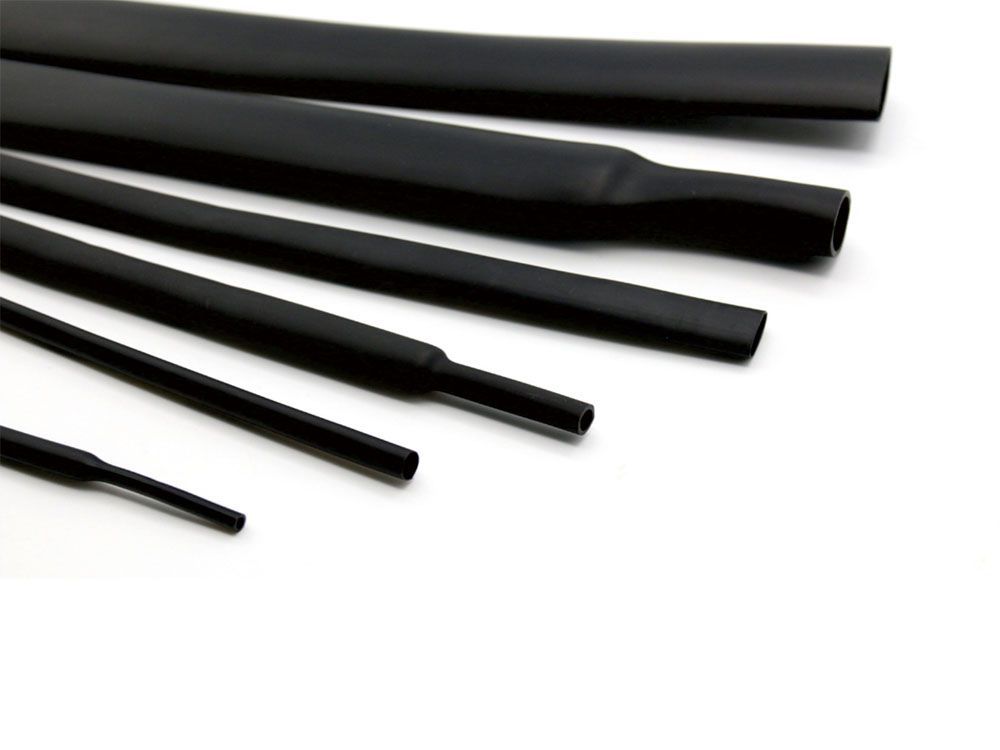

Diesel resistant flexible elastomeric heat shrinkable tubing

RSFR-DR diesel resistant elastomeric heat shrinkable tubing is flexible and flame retardant heat shrink tubing used in transportation and military applications to protect cables, wire harness and brake lines from diesel, oil, hydraulic fluids and other chemicals.

Features
  • 2:1 shrink ratio
  • Long term resistance to diesel, hydraulic fluids and chemicals
  • Flexible
  • Flame retardant
  • High abrasion and cut resistance
  • Continuous operating temperature: -75℃～150℃
  • Fully shrink temperature: 130℃
  • Meet 23053/16
Dimensions
Size Expanded Recovered Standard Package (m/roll) Round/Flat
inch mm Internal Diameter (mm) Internal Diameter (mm) Wall Thickness (mm)
1/8 3.2 3.2 1.6 0.76±0.15 200m/roll Round
3/16 4.8 4.8 2.4 0.84±0.15 100m/roll Round
1/4 6.4 6.4 3.2 0.89±0.15 100m/roll Round
3/8 9.5 9.5 4.8 1.02±0.20 50m/roll Round
1/2 12.7 12.7 6.4 1.22±0.20 25m/roll Round
3/4 19.1 19.1 9.5 1.45±0.28 25m/roll Round
1 25.4 25.4 12.7 1.78±0.28 25m/roll Round
1-1/2 38.1 38.1 19.0 2.41±0.41 25m/roll Round
2 50.8 50.8 25.4 2.79±0.41 25m/roll Round
3 76.0 76.0 38.0 3.18±0.50 1m/pc Flat

Note: 3:1 shrink ratio is available upon request

Technical Data
Property Test Method Standard Performance Typical Performance
Tensile strength (MPa) ASTM D2671 ≥10.4 11.5
Elongation (%) ASTM D2671 ≥400 450
Tensile strength after aging (MPa) Ul224 158℃×168hr ≥8.0 8.5
Elongation after aging (%) Ul224 158℃×168hr ≥220 350
Dielectric strength (kV/mm) IEC 60243 ≥15 17.5
Flammability UL224VW-1 Pass Pass
