Single Wall Heat Shrink Tubing

Model: RSFR-H(H)

Thin wall, halogen free, flexible heat shrinkable tubing

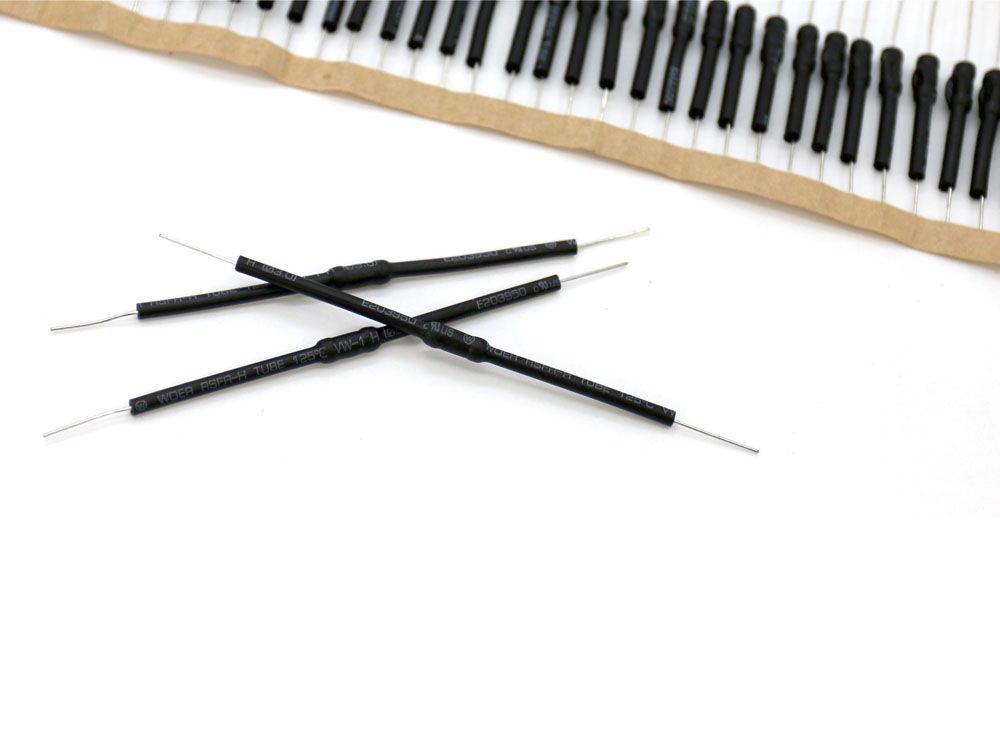

RSFR-H(H) single wall heat shrink tubing is cost effective ultra thin wall tubing that protects electronic components from moisture and corrosion. It is primarily suitable for space limited applications requiring high flexibility.

Features
  • Shrink ratio: 2:1
  • Ultra thin wall
  • Flexible
  • Halogen free
  • Flame retardant
  • low smoke generation if burning
  • Continuous operating temperature: -55℃ to 125℃
  • Fully shrink temperature: 125℃
  • RoHS and Sony compliant
Typical Applications
  • Electrical insulation
  • Electronic component protection
  • Strain relief for connectors and splices
  • Protection against mechanical damage and abrasion
  • Moisture and corrosion resistance
  • Wire bundling
  • Wire harnessing
Technical Data
Property Test Method Typical Performance
Tensile strength (MPa) ASTM D 2671 ≥10.4
Ultimate elongation (%) ASTM D 2671 ≥200
Tensile strength after heat aging (MPa) 158℃×168h ≥7.3
Ultimate elongation after heat aging (%) 158℃×168h ≥100
Longitudinal change (%) ASTM D 2671 -5% ～+5%
Flammability ASTM D 2671 C method VW-1
Dielectric strength (kV/mm) ASTM D 149 ≥15
Volume resistivity (Ω.cm) ASTM D 876 ≥1014
Dimensions
Size As Supplied After Recovery Standard Package
inch mm Internal Diameter (mm) Internal Diameter, Max (mm) Wall Thickness, Nom (mm) Spool Length (m/spool)
3/64 0.8 1.10±0.20 0.50 0.33±0.10 200
1/16 1.0 1.50±0.20 0.65 0.36±0.10 200
1.5 2.00±0.20 0.85 0.36±0.10 200
3/32 2.0 2.50±0.20 1.00 0.45±0.10 200
2.5 3.00±0.20 1.30 0.45±0.10 200
1/8 3.0 3.50±0.20 1.50 0.45±0.10 200
3.5 4.00±0.20 1.80 0.45±0.10 200
4.0 4.70±0.20 2.00 0.45±0.10 200
3/16 4.5 5.00±0.20 2.30 0.56±0.10 100
5.0 5.50±0.20 2.50 0.56±0.10 100
1/4 6.0 6.50±0.20 3.00 0.56±0.10 100
5/16 7.0 7.50±0.30 3.50 0.56±0.10 100
8.0 8.50±0.30 4.00 0.56±0.10 100
3/8 9.0 9.50±0.30 4.50 0.56±0.10 100
10 10.50±0.3 5.00 0.56±0.10 100
11 11.50±0.30 5.50 0.56±0.10 100
1/2 12 12.50±0.30 6.00 0.56±0.10 100
13 13.50±0.30 6.50 0.56±0.10 100
14 14.50±0.30 7.00 0.70±0.10 100
5/8 15 15.50±0.40 7.50 0.70±0.10 100
16 16.50±0.40 8.00 0.70±0.10 100
17 17.50±0.40 8.50 0.70±0.10 100
3/4 18 19.00±0.50 9.00 0.70±0.10 100
20 22.00±0.50 10.0 0.83±0.15 100
​ 22 24.00±0.50 11.0 0.83±0.15 100
25 26.00±0.50 12.5 0.90±0.15 50
28 29.00±0.50 14.0 0.90±0.15 50
1-1/4 30 31.50±1.00 15.0 1.00±0.15 50
35 36.50±1.00 17.5 1.00±0.15 50
1-1/2 40 41.50±1.00 20.0 1.00±0.15 50
45 46.50±1.50 22.5 1.00±0.15 25
2 50 ≥50 25.0 1.10±0.15 25
60 ≥60 31.0 1.20±0.15 25
70 ≥70 36.0 1.30±0.20 25
3 80 ≥80 41.0 1.30±0.20 25
90 ≥90 46.0 1.30±0.20 25
4 100 ≥100 51.0 1.30±0.20 25
5 120 ≥120 61.0 1.30±0.20 25
6 150 ≥150 76.0 1.30±0.20 25
7 180 ≥180 91.0 1.30±0.30 25
