Single Wall Heat Shrink Tubing
Model: RSFR-135G(3X)
Ultra thin wall, very flexible heat shrinkable tubing

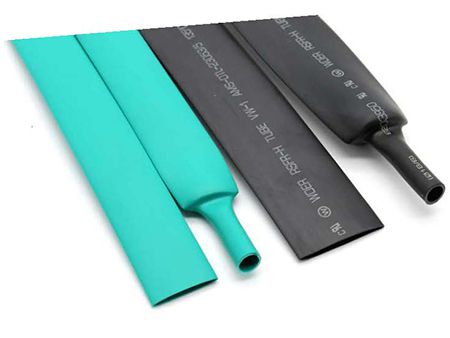

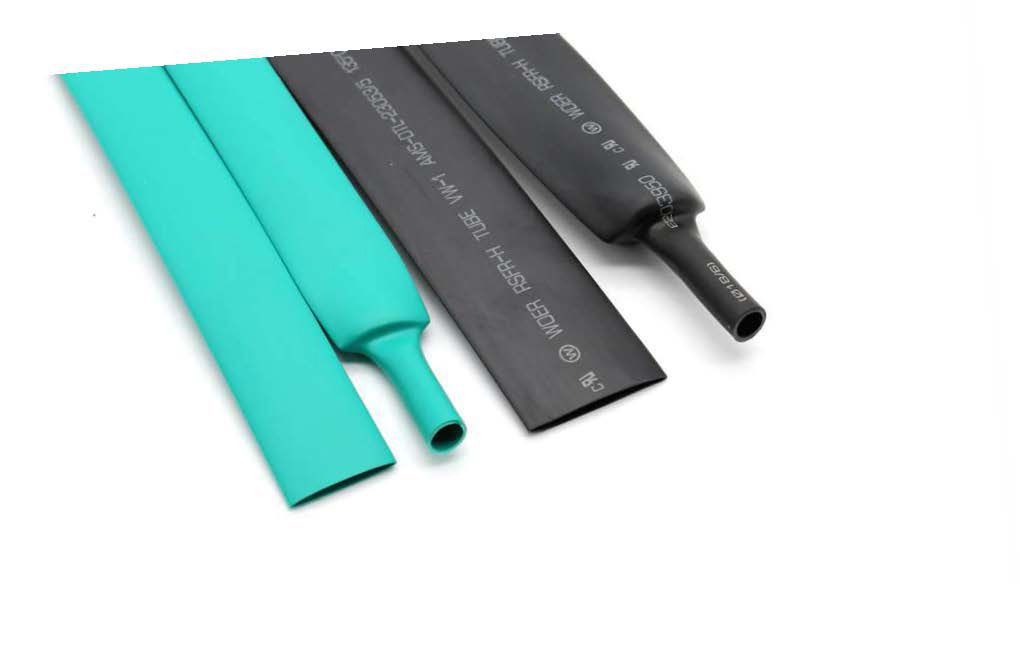

RSFR-135G(3X) single wall heat shrink tubing is very flexible, flame-retardant and rapidly shrinkable, offering the exclusive abrasion and moisture protection for wires and cables. Ultra thin wall allows the heat shrink tubing to fit into small spaces with ease.
Features
- Shrink ratio: 3:1
- Ultra thin wall
- Very flexible
- Flame retardant
- Continuous Operating Temperature: -55℃to135℃
- Fully shrink temperature: ≥120℃
- RoHS compliant
- Meet SAE-AMS-DTL-23053/5, Class 1 and 3

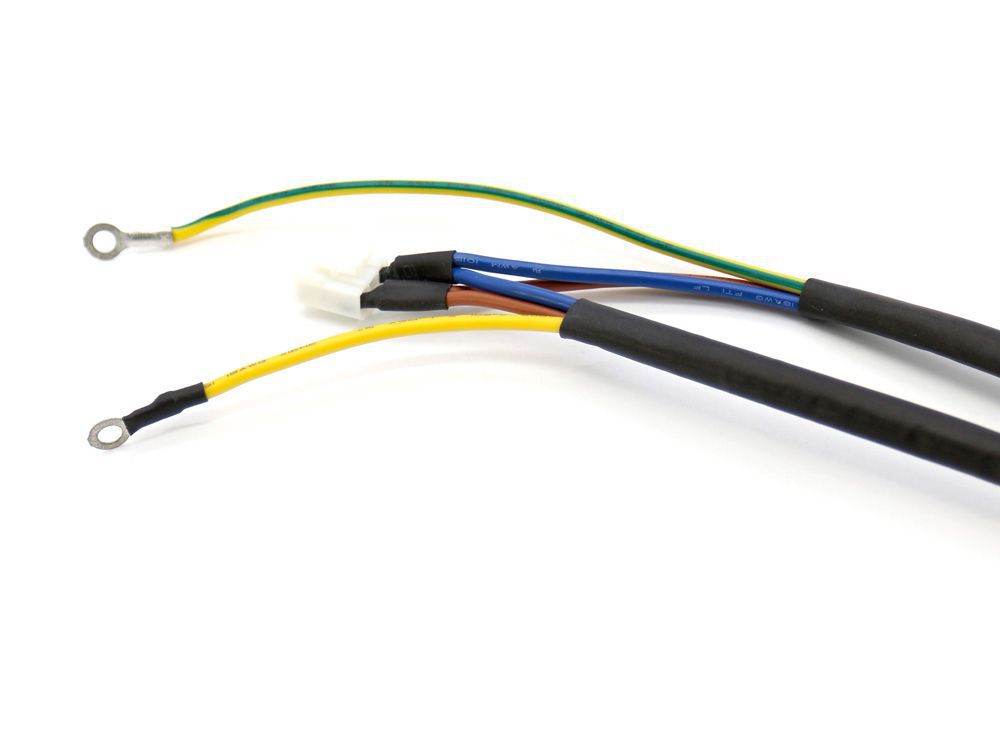

- Electrical insulation
- Electronic component protection
- Strain relief for connectors and splices
- Protection against mechanical damage and abrasion
- Moisture and corrosion resistance
- Wire bundling
- Wire harnessing
Property | Test Method | Typical Performance |
Tensile strength (MPa) | ASTM D 2671 | ≥10.4 |
Ultimate elongation (%) | ASTM D 2671 | ≥200 |
Tensile strength after heat aging (MPa) | 175℃×168h | ≥7.3MPa |
Ultimate elongation after heat aging (%) | 175℃×168h | ≥100 |
Longitudinal change (%) | ASTM D 2671 | -5%~+5% |
Flammability | ASTM D 2671 C method | VW-1 |
Voltage withstand | UL 224, 2500V, 60s | No breakdown |
Heat shock | UL 224,250℃×4h | No cracks, flowing or dripping |
Dielectric strength (kV/mm) | ASTM D 149 | ≥15 |
Volume resistivity (Ω.cm) | ASTM D 876 | ≥1014 |
Size | As Supplied | After Recovery | Standard Package | ||
inch | mm | Internal Diameter (mm) | Internal Diameter, Max (mm) | Wall Thickness, Nom (mm) | Spool Length (m/spool) |
1/16 | 1.5 | 1.5 | ≤0.5 | 0.45±0.10 | 200 |
1/8 | 3.0 | 3.0 | ≤1.0 | 0.55±0.10 | 200 |
3/16 | 4.5 | 4.5 | ≤1.5 | 0.60±0.10 | 100 |
1/4 | 6.0 | 6.0 | ≤2.0 | 0.65±0.10 | 100 |
3/8 | 9.0 | 9.0 | ≤3.0 | 0.75±0.15 | 50 |
1/2 | 12 | 12.0 | ≤4.0 | 0.75±0.15 | 50 |
5/8 | 15 | 15.0 | ≤5.0 | 0.80±0.15 | 50 |
3/4 | 18 | 18.0 | ≤6.0 | 0.85±0.15 | 50 |
1 | 24 | 24.0 | ≤8.0 | 1.00±0.20 | 25 |
1-1/4 | 30 | 30.0 | ≤10.0 | 1.15±0.20 | 25 |
1-1/2 | 39 | 39.0 | ≤13.0 | 1.50±0.20 | 25 |
2 | 50 | 50 | ≤16.0 | 2.50±0.20 | 25 |
60 | 60 | ≤20.0 | 2.60±0.20 | 25 | |
70 | 70 | ≤23.0 | 2.60±0.20 | 25 | |
3 | 80 | 80 | ≤26.0 | 2.60±0.20 | 25 |
90 | 90 | ≤30.0 | 2.60±0.20 | 25 | |
4 | 100 | 100 | ≤33.0 | 2.60±0.20 | 25 |
