Single Wall Heat Shrink Tubing
Model: RSFR-(2X)125V0
V0 flame retardant orange heat shrinkable tube for electric vehicle

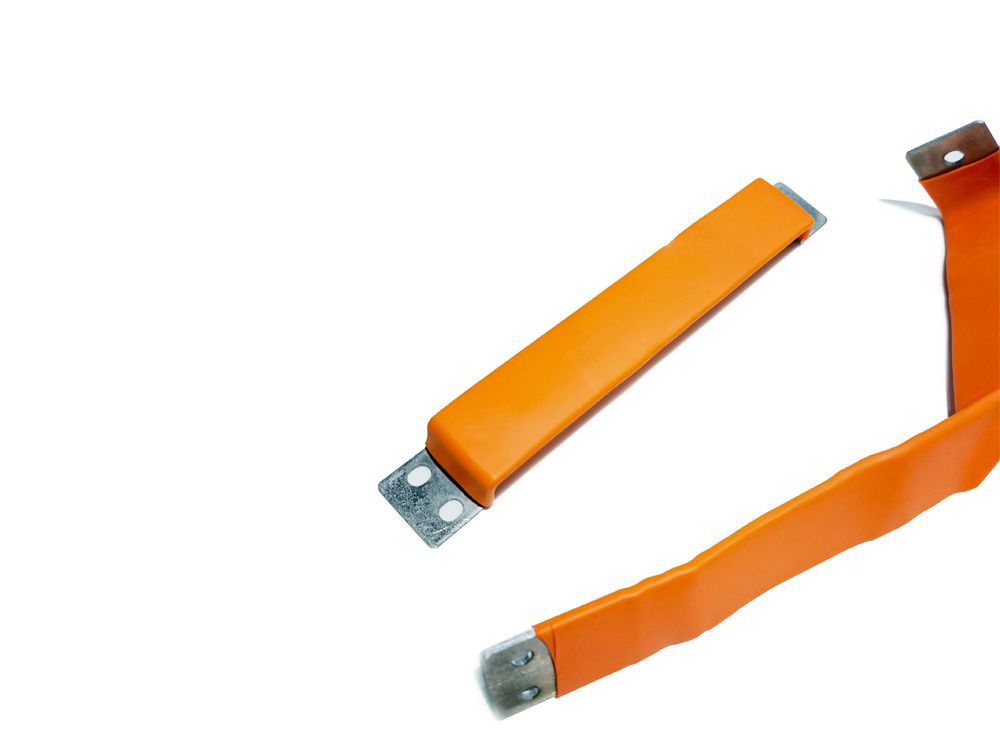

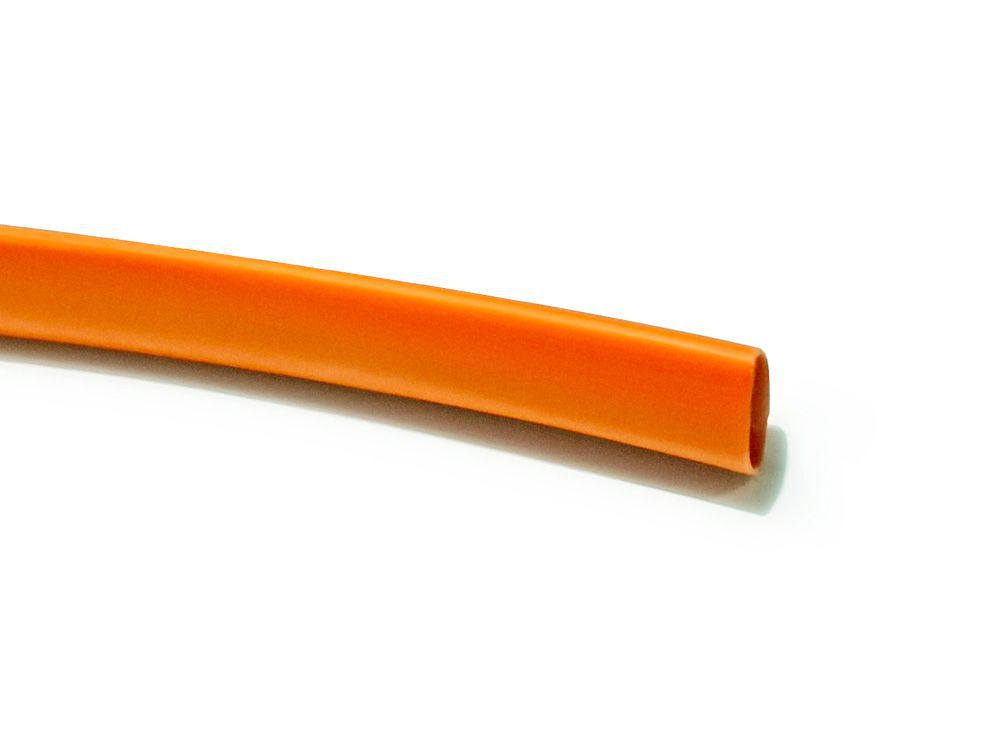

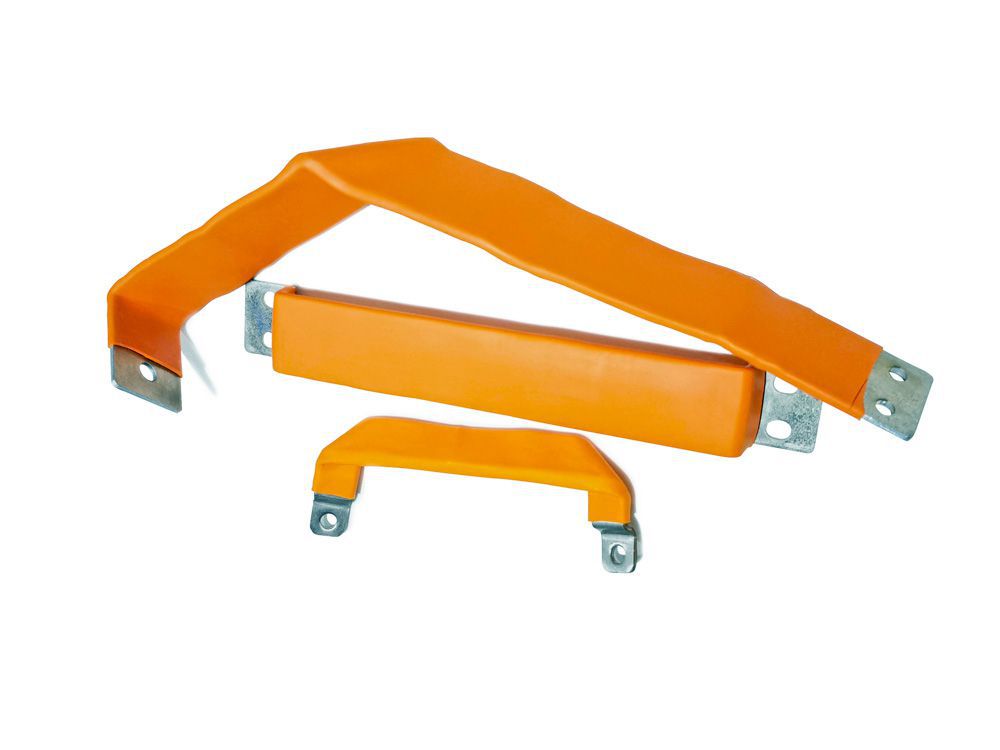

RSFR-(2X)125V0 single wall heat shrink tubing is flame-retardant heat shrinkable tube specially developed for new energy electric vehicles, it reaches flame retardant class of V0. Made from radiation cross-linked polyolefin with excellent physical, chemical and electrical properties, this single wall heat shrink tubing is suitable for insulation and protection of laminated busbars of electric vehicles.
Features
- 2:1 shrink ratio
- Can be used in acid and alkali conditions
- Standard color: orange
- Continuous operating temperature: -55℃～125℃
- Fully shrink temperature: ≥125℃
| Item | Testing Method | Requirement | ||
| Physical | Tensile strength (MPa) | UL224 | ≥10.4 | |
| Elongation (%) | UL224 | ≥200 | ||
| Tensile strength after aging (MPa) | UL224;158℃×168hr | ≥7.3 | ||
| Elongation after aging (%) | UL224;158℃×168hr | ≥100 | ||
| Heat shock | UL224; | No viscidity, no cracking | ||
| Cold blend | UL224;-30℃×1hr | No cracking | ||
| Electrical | Dielectric withstand | 300V | UL224;1500V 1min | Without breakdown |
| 600V | UL224;2500V 1min | Without breakdown | ||
| Dielectric strength (kV/mm) | UL224 | ≥15 | ||
| Volume resistance (Ω.cm) | UL224 | ≥1×1014 | ||
| Chemical | Copper stability | UL224; 158℃×168hr | Pass | |
| Anti corrosion | UL224; 158℃×168hr | Pass | ||
| Flammability | UL94 V0 | Pass (3.0mm) | ||
| Size (mm) | As Supplied (mm) | After Shrinkage (mm) | Packaging (m/spool) | Application (mm) | ||
| I.D | W.T | I.D | W.T | |||
| Ø16 | 16.5±0.4 | 0.35±0.10 | ≤8.00 | 0.70±0.10 | 100 | 8.3～15.0 |
| Ø16 | 16.6±0.4 | 0.70±0.20 | ≤8.00 | 1.30±0.15 | 100 | 8.3～15.0 |
| Ø18 | 19.0±0.5 | 0.35±0.10 | ≤9.00 | 0.70±0.10 | 100 | 9.3～17.0 |
| Ø18 | 19.0±0.5 | 0.70±0.20 | ≤9.00 | 1.35±0.15 | 100 | 9.3～17.0 |
| Ø20 | 22.0±0.5 | 0.40±0.10 | ≤10.00 | 0.83±0.10 | 100 | 10.4～19.0 |
| Ø20 | 22.0±0.5 | 0.70±0.20 | ≤10.00 | 1.40±0.15 | 40 | 10.4～19.0 |
| Ø22 | 24.0±0.5 | 0.40±0.12 | ≤11.00 | 0.83±0.15 | 100 | 11.4～21.0 |
| Ø22 | 24.0±0.5 | 0.60±0.15 | ≤11.00 | 1.25±0.15 | 50 | 11.4～21.0 |
| Ø22 | 24.0±0.5 | 0.70±0.20 | ≤11.00 | 1.40±0.15 | 40 | 11.4～21.0 |
| Ø25 | 26.0±0.5 | 0.45±0.12 | ≤12.50 | 0.90±0.15 | 50 | 12.8～24.0 |
| Ø25 | 26.0±0.5 | 0.70±0.20 | ≤12.50 | 1.40±0.15 | 40 | 12.8～24.0 |
| Ø28 | 29.0±0.5 | 0.45±0.12 | ≤14.00 | 0.90±0.15 | 50 | 14.4～27.0 |
| Ø28 | 29.0±0.5 | 0.60±0.20 | ≤14.00 | 1.25±0.15 | 50 | 14.5～27.0 |
| Ø28 | 29.0±0.5 | 0.70±0.20 | ≤14.00 | 1.40±0.15 | 40 | 14.5～27.0 |
| Ø30 | 31.5±1.0 | 0.45±0.12 | ≤15.00 | 1.00±0.15 | 50 | 16～29.0 |
| Ø30 | 31.5±1.5 | 0.70±0.20 | ≤15.00 | 1.40±0.15 | 40 | 16.0～28.0 |
| Ø30 | 31.5±1.5 | 1.00±0.30 | ≤15.00 | 2.00±0.20 | 25 | 16.0～28.0 |
| Ø35 | 36.5±1.0 | 0.45±0.12 | ≤17.50 | 1.00±0.15 | 50 | 18～34.0 |
| Ø40 | 41.5±1.0 | 0.50±0.12 | ≤20.00 | 1.00±0.15 | 50 | 21～39.0 |
| Ø40 | 41.5±1.5 | 0.70±0.20 | ≤20.00 | 1.50±0.15 | 40 | 21～39.0 |
