Specialty Heat Shrink Tubing
Model: HSS63

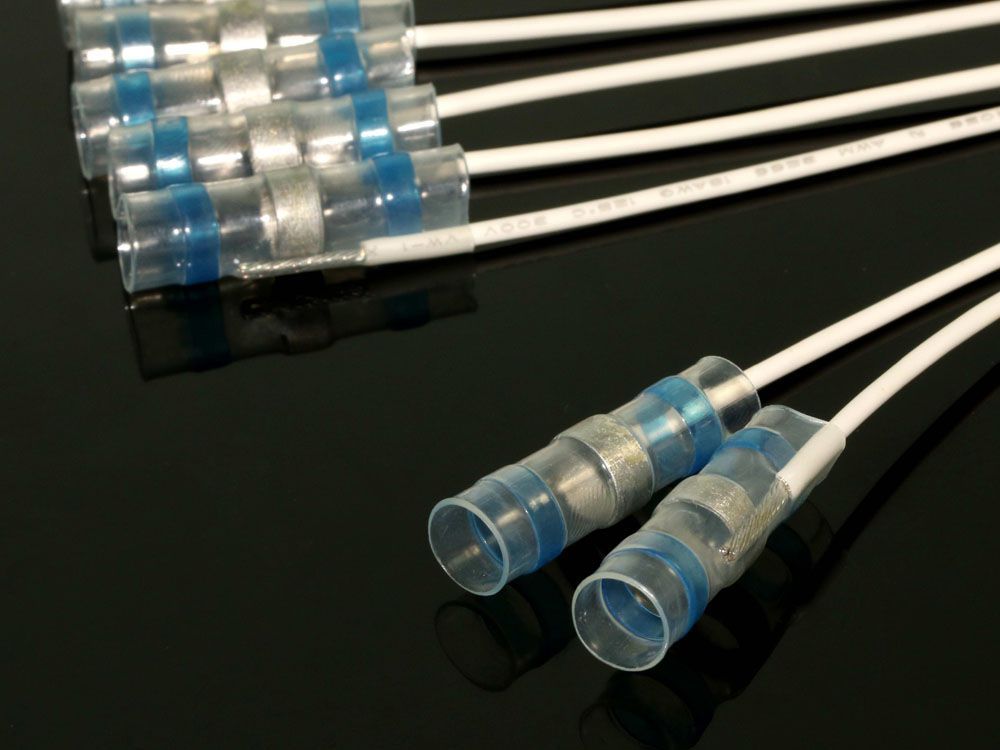

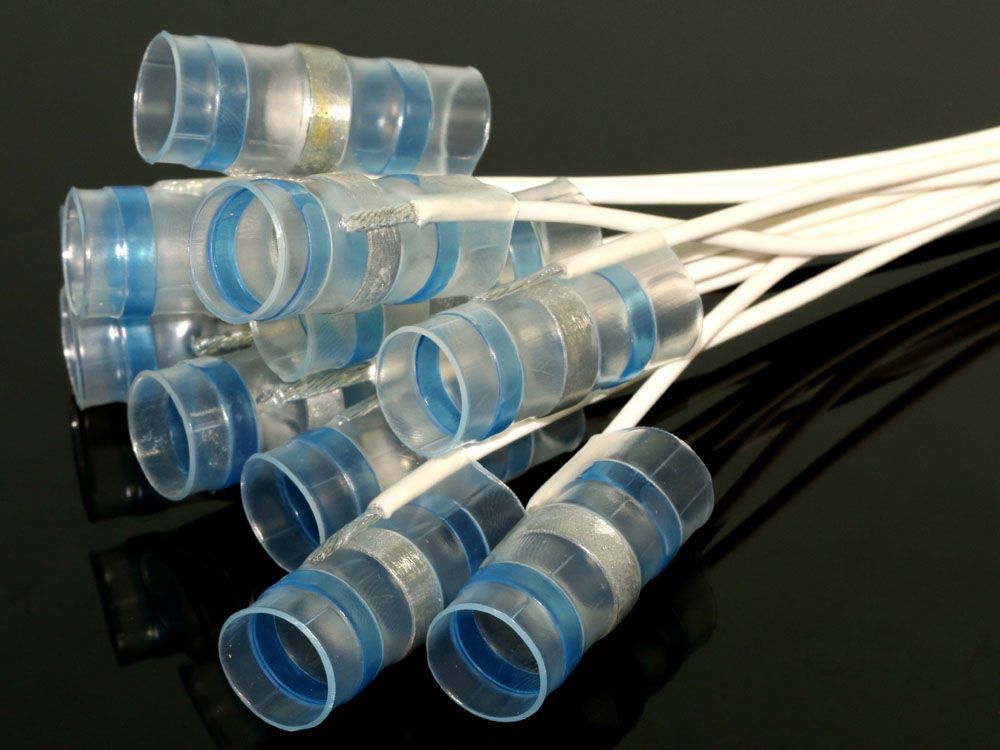

Heat shrinkable tube with tin ring
HSS63 heat shrinkable tube with tin ring is suitable for handling shielded wire terminals and splices, providing connection protection with simple and easy installation.
- 2:1 shrink ratio
- Flame retardant
- Excellent resistance to abrasion and chemical corrosion
- Transparent tube offers optimal clarity for visual inspection
- Welding robustness: ≥100N
- Continuous operating temperature: -55℃~150℃
- Shrink temperature: started at 140˚C, full recovery at 170˚C
| Order Code | Heat Shrink Tube (mm) | Hot Melt Rubber Ring (mm) | Tin Ring (mm) | Shielding wire (mm) | Color | |||
| Internal Diameter (ØC) | Internal Diameter (ØB) | Length (A) | Spacing (H) | Width | A.W.G | Length | ||
| HSS63-1-55-22-90 | ≥2.60 | ≥1.90 | 17.0±0.5 | 9.00±0.2 | 3.0±0.1 | 22 | 165±5 | Blue |
| HSS63-2-55-22-90 | ≥3.20 | ≥2.60 | 17.0±0.5 | 9.00±0.2 | 3.0±0.1 | 22 | 165±5 | Blue |
| HSS63-3-55-22-90 | ≥4.30 | ≥5.10 | 17.0±0.5 | 9.00±0.2 | 3.0±0.1 | 22 | 165±5 | Blue |
| HSS63-4-55-22-90 | ≥6.50 | ≥6.0 | 19.0±0.5 | 9.00±0.2 | 3.0±0.1 | 22 | 165±5 | Blue |
| HSS63-5-55-22-90 | ≥7.60 | ≥7.0 | 19.0±0.5 | 9.00±0.2 | 3.0±0.1 | 22 | 165±5 | Blue |
If you have questions about our products or want to request a quotation, please feel free to contact us at any time.
As an experienced manufacturer of heat shrink tubing and non-shrink tubing, WOER has a clear understanding of the industries requiring tubing and sleeving products used for electrical insulation, cable identification, wire bundling, environmental sealing and electronic component protection purposes. Whether you need electrical insulating tubing, wire harness tubing, heat shrink cable accessories, or other electrical application tubing products and cable identification products, we are a qualified source for your needs of heat shrinkable tubing products. WOER also provides superior value-added services such as cutting, printing and packaging to save your time and cost, so you can get your heat shrink tubes custom cut, printed and packaged.
