PVDF Heat Shrinkable Tubing
Medical grade heat shrink tubing
Model: RSFR-MT-PVDF
RSFR-MT-PVDF is a medical grade heat shrink tubing made from eco-friendly cross-linked polyvinylidene fluoride (PVDF), offering characteristics of excellent chemical and abrasion resistance, high dielectric strength and good tensile strength. The consistency and high performance of the medical grade heat shrink tubing are a result of the homogeneous structure of PVDF, enabling the product essentially free from defects, pinholes, seams, cracks or flaws.
Our medical grade PVDF heat shrinkable tubing is more flexible, and can be used in medical and surgical instruments for abrasion protection.
Features
- Shrink rate: 2:1
- Operating temperature: -55°C ~140°C
- Initial shrink temperature: ≥100℃
- Superior electrical insulation
- Compliant with ISO 10993-1 for GAMMA, ETO and dry heat sterilization
- Environmental standard: RoHS

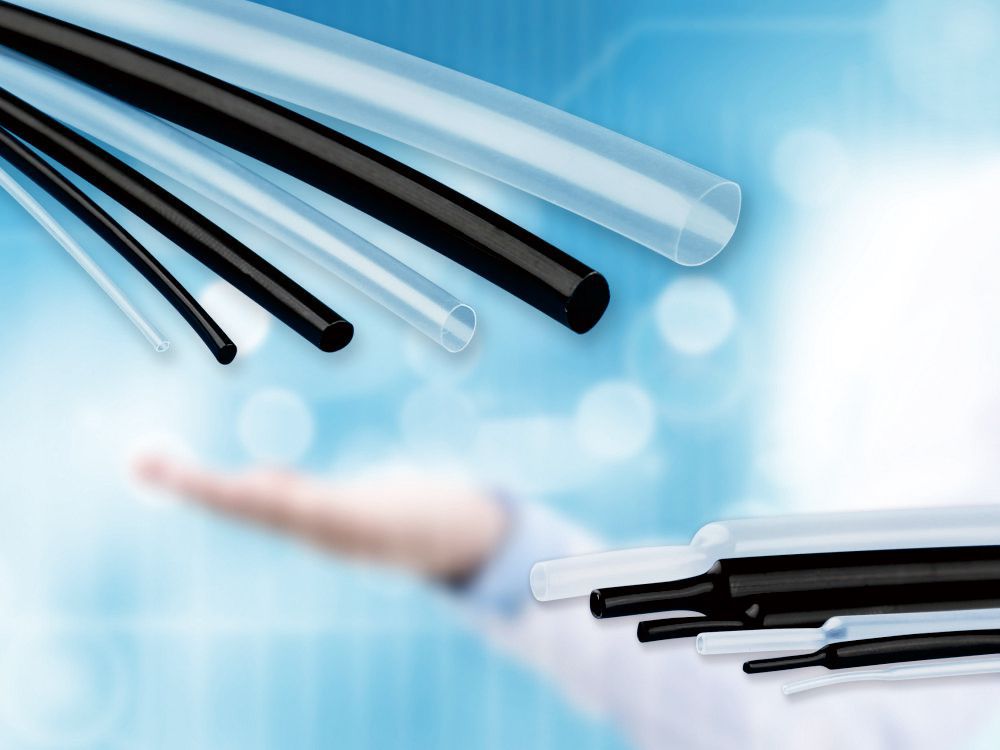

- Standard color: transparent, black (other colors can be customized)
Properties
| Performance | Test Standard | Standard Performance |
| Tensile strength (MPa) | ASTM D 2671 | ≥24.3 |
| Elongation at break (%) | ASTM D 2671 | ≥300 |
| Voltage resistance test (V) | ASTM D 149 | 4000V, 1min, no breakdown |
| Volume resistivity (Ω.cm) | IEC 60093 | ≥1011 |
| Flame retardant | ASTM D 2671 C method | Pass |
| Water absorption (%) (23°C, 24h) | ASTM D 2671 | ≤0.5 |
| Part No. | As Supplied Inside Diameter, Min (D) | Recovered Size | ||||
| inch (in) | (mm) | Inside Diameter, Max (d) | Wall Thickness (W) | |||
| inch (in) | (mm) | inch (in) | (mm) | |||
| RSFR-MT-PVDF-2X-1.2-* | 3/64 | 1.20 | 0.023 | 0.60 | 0.010±0.002 | 0.31±0.06 |
| RSFR-MT-PVDF-2X-1.6-* | 1/16 | 1.60 | 0.031 | 0.80 | 0.010±0.002 | 0.31±0.06 |
| RSFR-MT-PVDF-2X-2.4-* | 3/32 | 2.40 | 0.046 | 1.20 | 0.010±0.002 | 0.31±0.06 |
| RSFR-MT-PVDF-2X-3.2-* | 1 / 8 | 3.20 | 0.062 | 1.60 | 0.010±0.002 | 0.31±0.06 |
| RSFR-MT-PVDF-2X-4.8-* | 3/16 | 4.80 | 0.093 | 2.40 | 0.010±0.002 | 0.31±0.06 |
| RSFR-MT-PVDF-2X-6.4-* | 1 / 4 | 6.40 | 0.125 | 3.20 | 0.012±0.003 | 0.38±0.06 |
| RSFR-MT-PVDF-2X-9.5-* | 3 / 8 | 9.50 | 0.187 | 4.80 | 0.012±0.003 | 0.38±0.07 |
| RSFR-MT-PVDF-2X-12.7-* | 1/2 | 12.70 | 0.250 | 6.40 | 0.012±0.003 | 0.38±0.07 |
If you have questions about our products or want to request a quotation, please feel free to contact us at any time.
