Dual Wall Heat Shrink Tubing, SBRS-(3X,4X)GF
Dual Wall Heat Shrink Tubing, SBRS-(3X,4X)GF
Dual Wall Heat Shrink Tubing, SBRS-(3X,4X)GF Dual Wall Heat Shrink Tubing, SBRS-(3X,4X)GF Dual Wall Heat Shrink Tubing, SBRS-(3X,4X)GF
Request a Quote

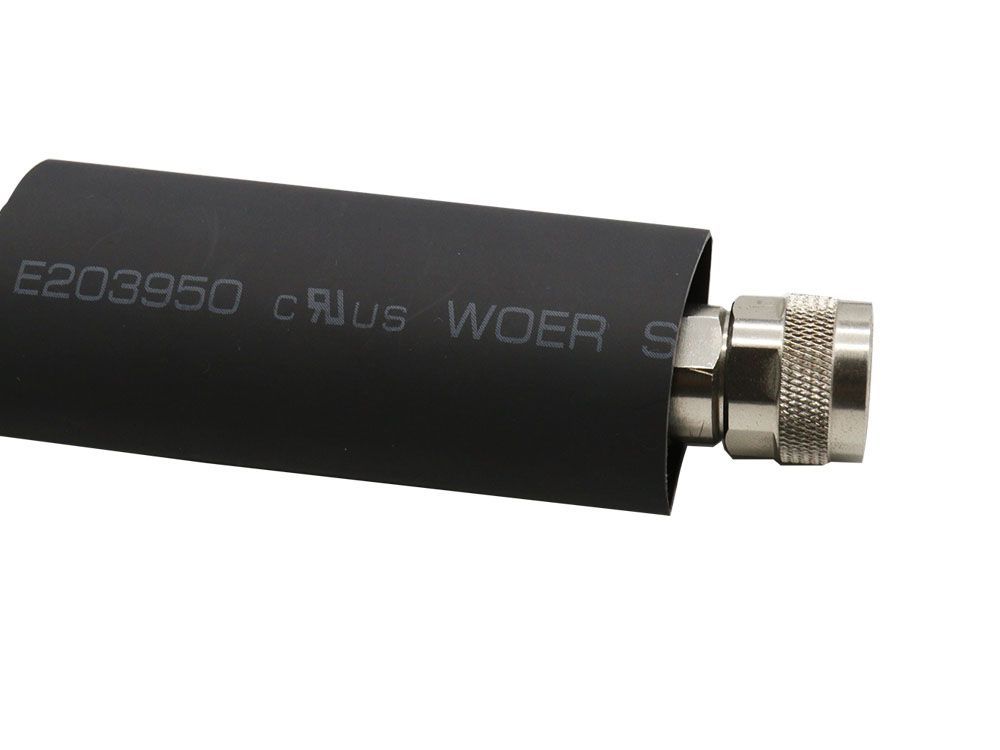

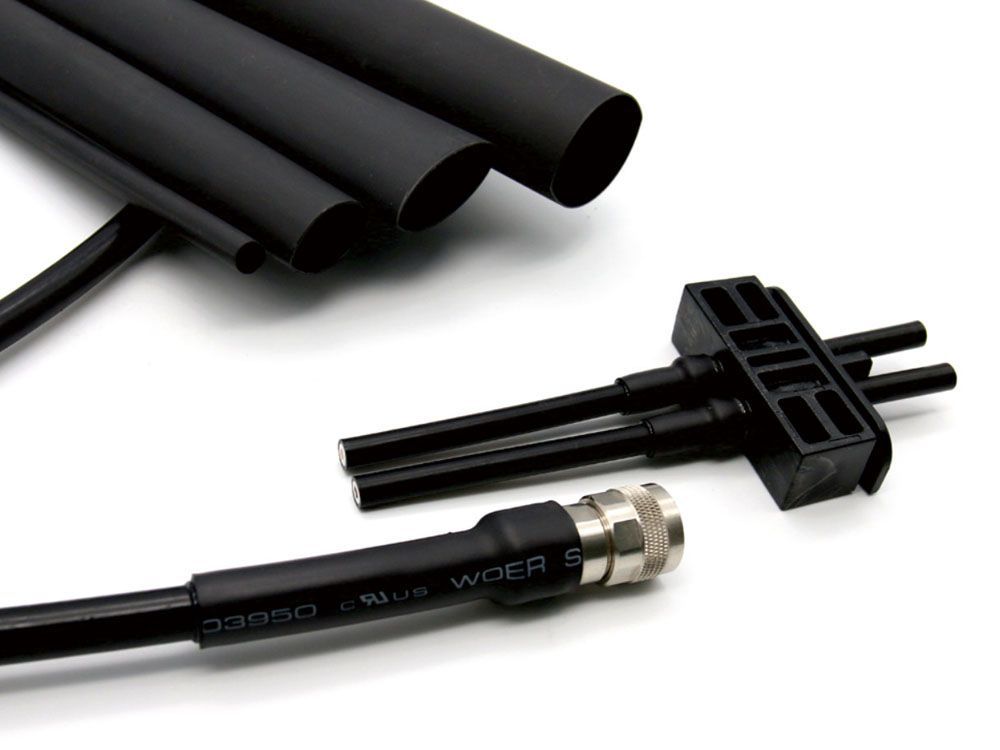

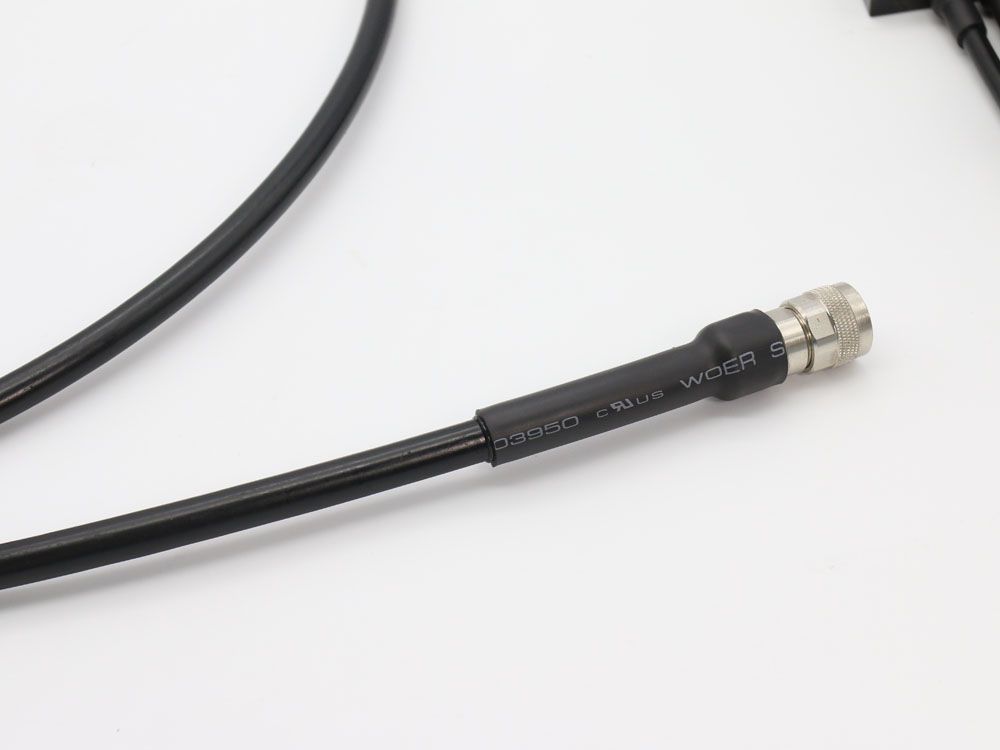

Dual Wall Heat Shrink Tubing

Model: SBRS-(3X,4X)GF

Adhesive-lined cross-linked polyolefin heat shrinkable tubing

SBRS-(3X,4X)GF adhesive lined heat shrink tubing is dual wall heat shrink tubing made from cross-linked polyolefin. This heat shrink tubing is ideal for insulation and protection of electrical splices and terminations where maximum flame retardancy and exceptional environmental sealing capabilities are required.


Features
  • 3:1&4:1 shrink ratio
  • Highly flame retardant
  • High shrink ratio allows for covering irregularly shaped connectors and components
  • Superior sealing against water, moisture and other contaminants
  • Continuous operating temperature: -55℃~135℃
  • Fully shrink temperature: ≥125℃
  • Meet MIL-DTL-23053/4
Dimensions

SBRS-(3X)GF Dual Wall Heat Shrink Tubing

Size Expanded After Recovery Standard Package
inch mm Internal Diameter (mm) Internal Diameter (mm) Total Wall Thickness (mm) Adhesive Thickness (mm) Spool Length (m/spool)
1/8 3.2 3.2 1.0 0.95±0.15 0.40±0.10 200
3/16 4.8 4.8 1.6 1.10±0.15 0.40±0.10 100
1/4 6.4 6.4 2.2 1.20±0.15 0.45±0.10 100
5/16 7.9 7.9 2.7 1.35±0.15 0.50±0.10 100
3/8 9.5 9.5 3.2 1.45±0.15 0.50±0.10 50
1/2 12.7 12.7 4.2 1.70±0.20 0.50±0.15 1.22 or 25m/roll
5/8 15.0 15.0 5.2 1.80±0.20 0.55±0.15 1.22 or 25m/roll
3/4 19.1 19.1 6.3 2.00±0.20 0.60±0.20 1.22 or 25m/roll
1 25.4 25.4 8.5 2.10±0.25 0.60±0.20 1.22 or 25m/roll
1-1/4 30 30 10.2 2.20±0.25 0.65±0.20 1.22 or 25m/roll
1-1/2 39 39 13.5 2.40±0.25 0.75±0.20 1.22 or 25m/roll
2 50 50 17.0 2.70±0.25 0.80±0.20 1.22 or 25m/roll

SBRS-(4X)GF Dual Wall Heat Shrink Tubing

Size Expanded After Recovery Standard Package
inch mm Internal Diameter (mm) Internal Diameter (mm) Total Wall Thickness (mm) Adhesive Thickness (mm) Spool Length (m/spool)
5/32 4.0 4.0 1.0 1.00±0.15 0.40±0.15 200
1/4 6.0 6.0 1.5 1.10±0.15 0.40±0.15 100
5/16 8.0 8.0 2.0 1.50±0.15 0.50±0.25 50
1/2 12.0 12.0 3.0 1.70±0.15 0.60±0.15 1.22 or 25m/roll
5/8 16.0 16.0 4.0 2.00±0.15 0.60±0.15 1.22 or 25m/roll
25/32 20.0 20.0 5.0 2.30±0.25 0.60±0.15 1.22 or 25m/roll
1 24.0 24.0 6.0 2.60±0.25 0.70±0.15 1.22 or 25m/roll
1-1/4 32.0 32.0 8.0 3.00±0.30 0.70±0.15 1.22 or 25m/roll
2 52.0 52.0 13.0 3.30±0.30 0.70±0.15 1.22 or 25m/roll
