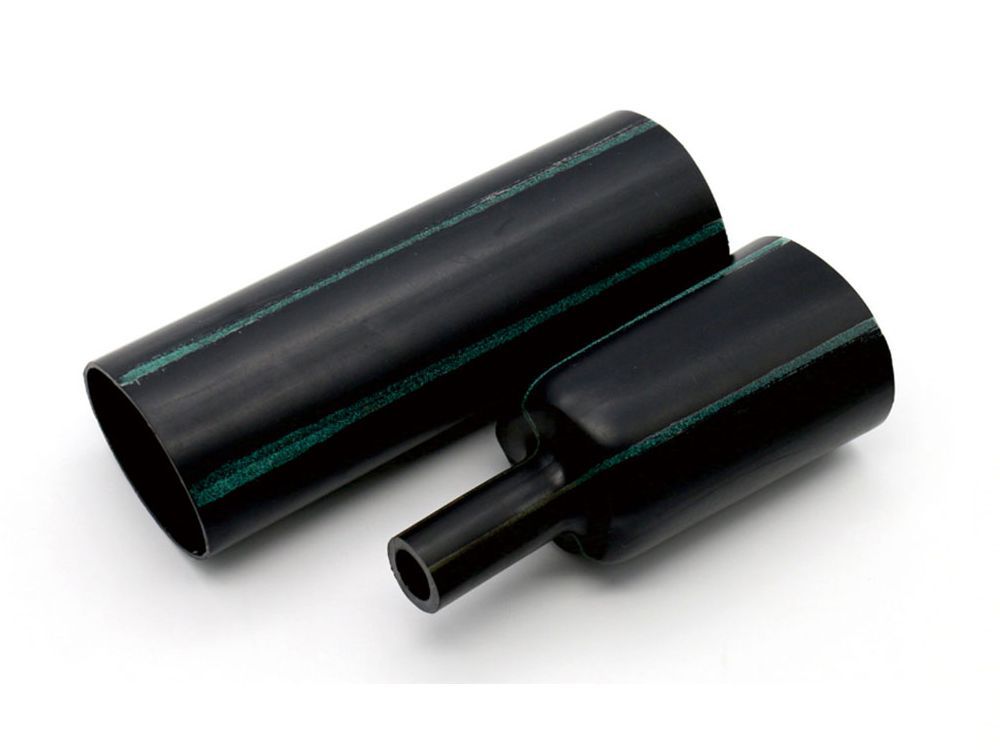

Medium Wall Heat Shrink Tubing
Model: SBRSTV
Adhesive-lined heat variable heat shrink tubing
SBRSW-NF medium wall heat shrink tubing is adhesive-lined heat variable heat shrink tubing specially engineered to meet the needs of CATV industry for splice and connector protection.
Features
- 3:1 shrink ratio
- Flame retardant
- Excellent resistance to weathering, moisture contamination and adverse environmental conditions
- Heat indicating lines
- Adhesive liner for complete environmental protection and insulation
- Resistant to common fluids and solvents
- Continuous operating temperature: -45℃～110℃
- Fully shrink temperature: 125℃
| Size (mm) | Expanded | After Recovery | Standard Package (m/pc) | |||
| Internal Diameter (mm) | Internal Diameter (mm) | Jacket Thickness (mm) | Adhesive Thickness (mm) | Total Wall Thickness (mm) | ||
| 10.2/3.8 | 10.2 | 3.8 | 1.40±0.20 | 0.50±0.10 | 1.90±0.25 | 1.22 |
| 19.0/5.6 | 19.0 | 5.6 | 1.80±0.20 | 0.60±0.15 | 2.40±0.30 | 1.22 |
| 28.0/6.0 | 28.0 | 6.0 | 2.40±0.30 | 0.95±0.20 | 3.30±0.35 | 1.22 |
| 33.0/8.0 | 33.0 | 8.0 | 2.50±0.30 | 0.80±0.15 | 3.30±0.35 | 1.22 |
| 38.1/12.0 | 38.1 | 12.0 | 2.40±0.30 | 0.80±0.15 | 3.30±0.35 | 1.22 |
| 43.2/12.7 | 43.2 | 12.7 | 2.40±0.30 | 0.80±0.15 | 3.30±0.35 | 1.22 |
| 55.0/16.0 | 55.0 | 16.0 | 2.40±0.30 | 0.80±0.15 | 3.30±0.35 | 1.22 |
| 70.0/25.4 | 70.0 | 25.4 | 2.80±0.30 | 0.60±0.15 | 3.40±0.40 | 1.22 |
| Property | Test Method | Standard Performance | Typical Performance |
| Tensile strength (MPa) | ASTM D2671 | ≥10.4 | 11.5 |
| Elongation (%) | ASTM D2671 | ≥300 | 450 |
| Tensile strength after aging (MPa) | UL224 158℃×168hr | ≥7.3 | 8.5 |
| Elongation after aging (%) | UL224 158℃×168hr | ≥200 | 350 |
| Dielectric strength (kV/mm) | IEC 60243 | ≥15 | 17.5 |
| Volume resistivity (Ω.cm) | IEC 60093 | ≥1×1014 | 2.5×1014 |
| Property | Test Method | Standard Performance |
| Water absorption | ASTM D570 | ＜0.2% |
| Softening point (℃) | ASTM E28 | 95±5 |
| Peel strength (PE) | ASTM D 1000 | 120N/25mm |
| Peel strength (AL) | ASTM D 1000 | 80N/25mm |
