Special Purpose Heat Shrink Tubing, RSFR-TFE
Special Purpose Heat Shrink Tubing, RSFR-TFE
Request a Quote

Special Purpose Heat Shrink Tubing

Model: RSFR-TFE

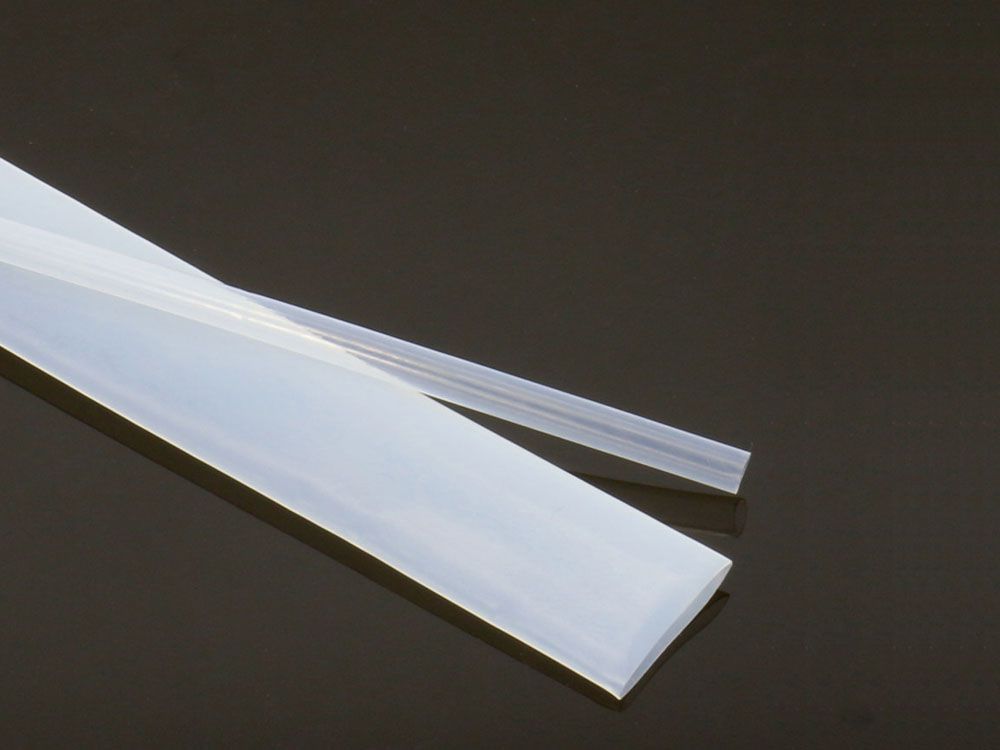

Teflon PTFE heat shrinkable tubing

RSFR-TFE Teflon PTFE heat shrinkable tubing is ideal for science and technology applications that require insulation and protection against high temperature and chemical resistance. This Teflon PTFE heat shrinkable tubing is widely used in various industries such as chemical, mechanical, aerospace, vehicle, transformer and communication.


Features
  • High performance for corrosion resistance (anti-acid/alkali/chemical/oil)
  • High voltage resistance
  • Operating temperature: -65℃~200℃
  • Standard color: clear
  • Shrink ratio: 1.7:1
  • Shrink temperature: >350℃
Dimensions
Size (mm) Expanded Recovered Standard Package (m/spool) Round/Flat
Internal Diameter (mm) Internal Diameter (mm) Wall Thickness (mm)
1.0 1.0±0.2 ≤ 0 . 6 0.20±0.05 200 Round
1.5 1.5±0.2 ≤ 0 . 9 0.20±0.05 200 Round
2.0 2.0±0.2 ≤ 1 . 3 0.20±0.05 200 Round
2.5 2.5±0.2 ≤ 1 . 5 0.20±0.05 200 Round
3.0 3.0±0.2 ≤ 1 . 8 0.20±0.05 200 Round
3.5 3.5±0.2 ≤ 2 . 0 0.20±0.05 100 Round
4.0 4.0±0.3 ≤ 2 . 5 0.25±0.05 100 Round
4.5 4.5±0.3 ≤ 2 . 8 0.25±0.05 100 Round
5.0 5.0±0.3 ≤ 3 . 0 0.25±0.05 100 Round
6.0 6.0±0.3 ≤ 3 . 8 0.25±0.05 100 Round
7.0 7.0±0.3 ≤ 4 . 0 0.25±0.05 100 Round
8.0 8.0±0.3 ≤ 4 . 8 0.25±0.05 1 Flat
9.0 9.0±0.3 ≤ 5 . 0 0.30±0.05 1 Flat
10.0 10.0±0.3 ≤ 5 . 8 0.30±0.05 1 Flat
11.0 11.0±0.3 ≤ 6 . 4 0.30±0.05 1 Flat
12.0 12.0±0.3 ≤ 7 . 0 0.30±0.05 1 Flat
13.0 13.0±0.3 ≤ 7 . 5 0.35±0.05 1 Flat
14.0 14.0±0.3 ≤ 8.0 0.35±0.05 1 Flat
15.0 15.0±0.3 ≤ 8.5 0.40±0.05 1 Flat
16.0 16.0±0.3 ≤ 9.0 0.40±0.05 1 Flat
Technical Data
Property Method Test Typical Performance
Tensile strength (MPa) ASTMD 2671 19
Elongation (%) ASTMD 2671 200
Cold impact (-65℃) ASTMD 2671 Method C No cracking
Flammability ASTMD 2671 VW-1
Dielectric strength (kV/mm) VDE 0303 Part2 26
Volume resistivity (Ω) VDE 0303 Part2 1.0×1014
