Single Wall Heat Shrink Tubing, RSFR-(2X.3X)YG
Single Wall Heat Shrink Tubing, RSFR-(2X.3X)YG
Single Wall Heat Shrink Tubing, RSFR-(2X.3X)YG Single Wall Heat Shrink Tubing, RSFR-(2X.3X)YG
Request a Quote

Single Wall Heat Shrink Tubing

Model: RSFR-(2X.3X)YG

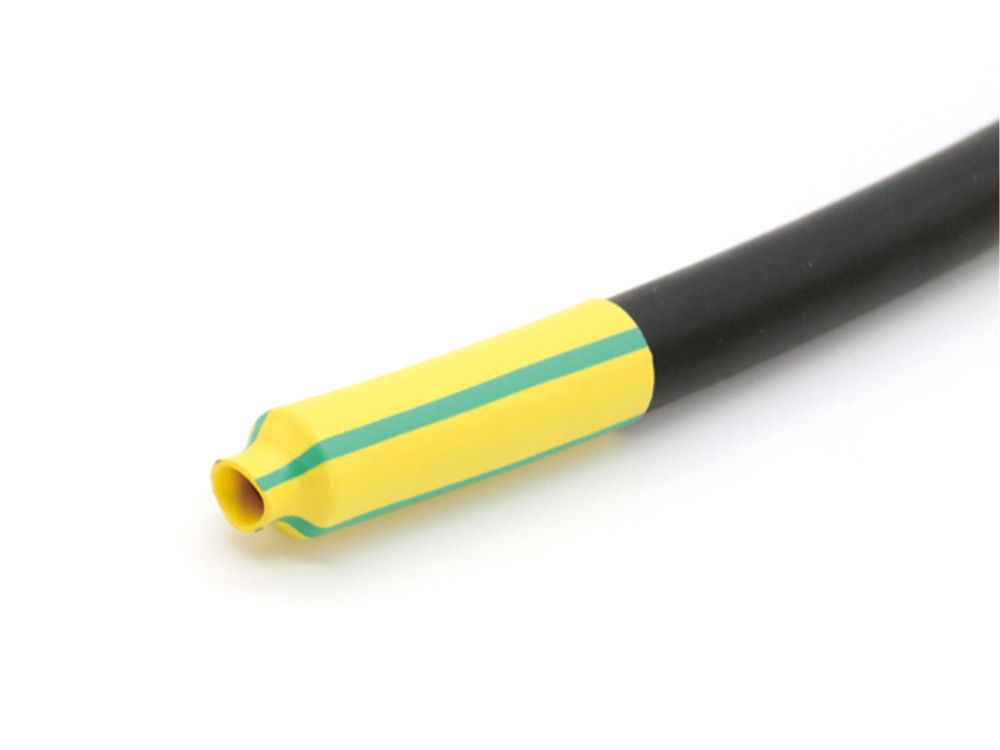

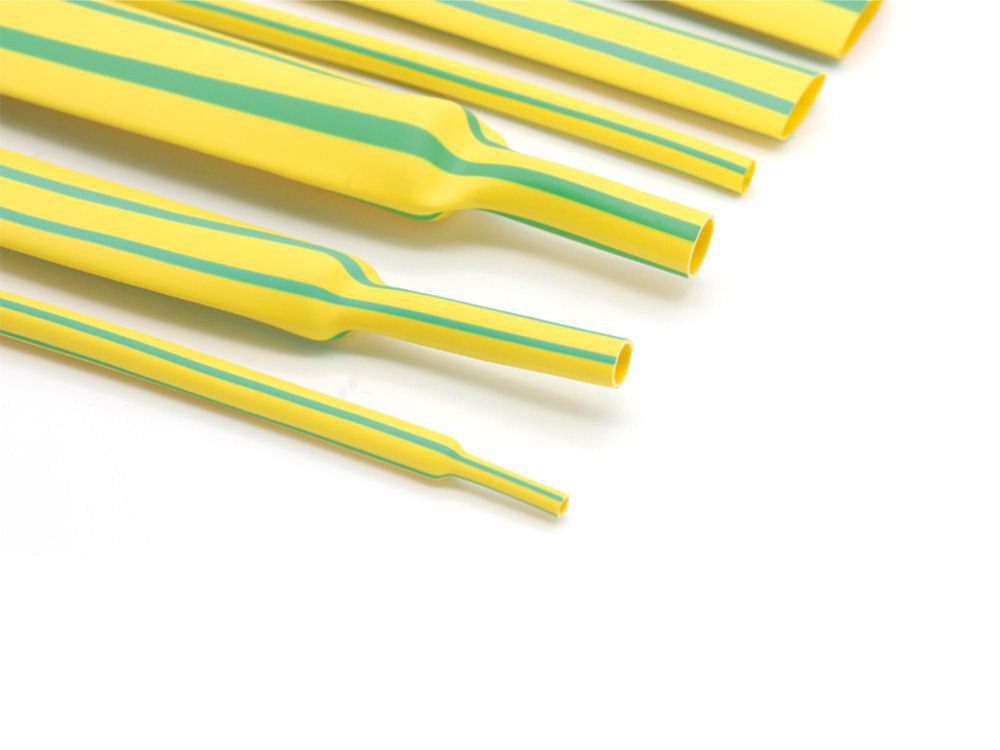

Yellow/Green striped, flexible, flame-retardant heat shrinkable tubing

The RSFR-(2X.3X)YG single wall heat shrink tubing has a unique yellow/green striped color, it is especially used on grounding cables and earthing conductors. This heat shrink tubing is highly flame-retardant and has excellent physical and electrical properties.


Features
  • Shrink ratio: 2:1&3:1
  • Stripped color combination designates international electrical grounding
  • Flame retardant
  • Flexible
  • Resists common fluids and solvents
  • Continuous operating temperature: -55℃- 125℃
  • Shrink Temperature: 90℃
Typical Applications
  • Electrical insulation
  • Identification of grounding cables
  • Protection against mechanical damage and abrasion
  • Moisture and corrosion resistance
Technical Data
Property Test Method Standard Performance Typical Performance
Tensile strength (MPa) ASTM D 2671 ≥10.4 11.5
Ultimate elongation (%) ASTM D 2671 ≥300 450
Tensile strength after heat aging (MPa) UL224 158℃×168h ≥7.3 8.5
Elongation after heat aged (%) UL224 158℃×168h ≥200 350
Dielectric strength (kV/mm) IEC60243 ≥15 17.5
Volume resistivity (Ω.cm) ASTM D 876 ≥1×1014 2.5×1014
RSFR-(2X)YG
Size As Supplied After Recovery Round/Flat Standard Package (m/spool)
mm Internal Diameter, Min (mm) Internal Diameter, Max (mm) Wall Thickness (mm)
1.0 1.5±0.3 0.70 0.28±0.10 Round 200
1.5 2.0±0.3 0.90 0.30±0.10 Round 200
2.0 2.5±0.3 1.00 0.35±0.10 Round 200
2.5 3.0±0.3 1.30 0.36±0.10 Round 200
3.0 3.5±0.4 1.50 0.38±0.10 Round 200
3.5 4.0±0.4 1.80 0.40±0.10 Round 200
4.0 4.5±0.4 2.00 0.45±0.10 Round 200
4.5 5.0±0.4 2.30 0.45±0.10 Round 100
5.0 5.5±0.4 2.5 0.45±0.10 Round 100
6.0 6.5±0.4 3.0 0.50±0.10 Round 100
7.0 7.5±0.4 3.5 0.50±0.10 Flat 100
8.0 8.5±0.5 4.0 0.55±0.10 Flat 100
9.0 9.5±0.5 4.5 0.55±0.10 Flat 100
10.0 10.5±0.5 5.0 0.55±0.10 Flat 100
11.0 11.5±0.5 5.5 0.60±0.10 Flat 100
12.0 12.5±0.5 6.0 0.60±0.10 Flat 100
13.0 13.5±0.5 6.5 0.60±0.10 Flat 100
14.0 14.5±0.5 7.0 0.65±0.10 Flat 100
15.0 15.5±0.6 7.5 0.70±0.10 Flat 100
16.0 17.0±0.6 8.0 0.70±0.10 Flat 100
17.0 17.5±0.6 8.5 0.70±0.10 Flat 100
18.0 19.0±0.7 9.0 0.70±0.15 Flat 100
20.0 22.0±0.7 10.0 0.75±0.15 Flat 100
22.0 24.0±0.7 11.0 0.80±0.15 Flat 100
25.0 26.0±0.7 12.5 0.90±0.15 Flat 50
28.0 29.0±0.7 14.0 0.90±0.15 Flat 50
30.0 31.5±0.7 15.0 0.95±0.15 Flat 50
35.0 36.5±0.7 17.5 0.95±0.15 Flat 50
40.0 41.5±0.7 20.0 1.00±0.20 Flat 50
45.0 46.5±0.7 22.5 1.00±0.20 Flat 25
50.0 46.5±0.7 25.0 1.00±0.20 Flat 25
60.0 ≥60.0 30.0 1.10±0.20 Flat 25
70.0 ≥70.0 35.0 1.20±0.20 Flat 25
80.0 ≥80.0 40.0 1.30±0.20 Flat 25
90.0 ≥90.0 45.0 1.50±0.20 Flat 25
100.0 ≥100.0 50.0 1.65±0.20 Flat 25
120.0 ≥120.0 60.0 1.70±0.20 Flat 15
150.0 ≥150.0 75.0 1.70±0.20 Flat 15
180.0 ≥180.0 90.0 1.75±0.20 Flat 15
RSFR-(3X)YG
Size As Supplied After Recovery Round/Flat Standard Package (m/spool)
mm Internal Diameter, Min (mm) Internal Diameter, Max (mm) Wall Thickness (mm)
3.2 3.2 1.0 0.55±0.15 Round 200
4.8 4.8 1.5 0.60±0.15 Round 100
6.4 6.4 2.0 0.65±0.15 Round 100
9.5 9.5 3.0 0.75±0.15 Flat 50
12.7 12.7 4.0 0.75±0.20 Flat 50
19.1 19.1 6.0 0.85±0.20 Flat 50
25.4 25.4 8.0 1.00±0.20 Flat 50
39 39 13.0 1.50±0.20 Flat 50
