Dual Wall Heat Shrink Tubing, SBRS-(2X)QF
Dual Wall Heat Shrink Tubing, SBRS-(2X)QF
Dual Wall Heat Shrink Tubing, SBRS-(2X)QF Dual Wall Heat Shrink Tubing, SBRS-(2X)QF
Request a Quote

Dual Wall Heat Shrink Tubing

Model: SBRS-(2X)QF

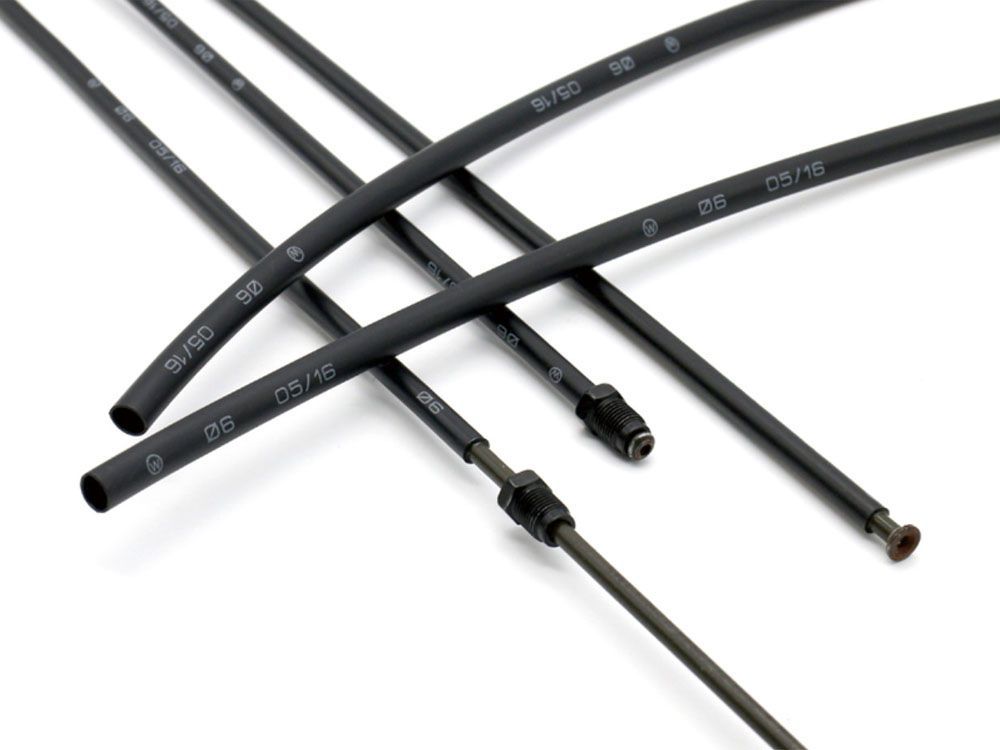

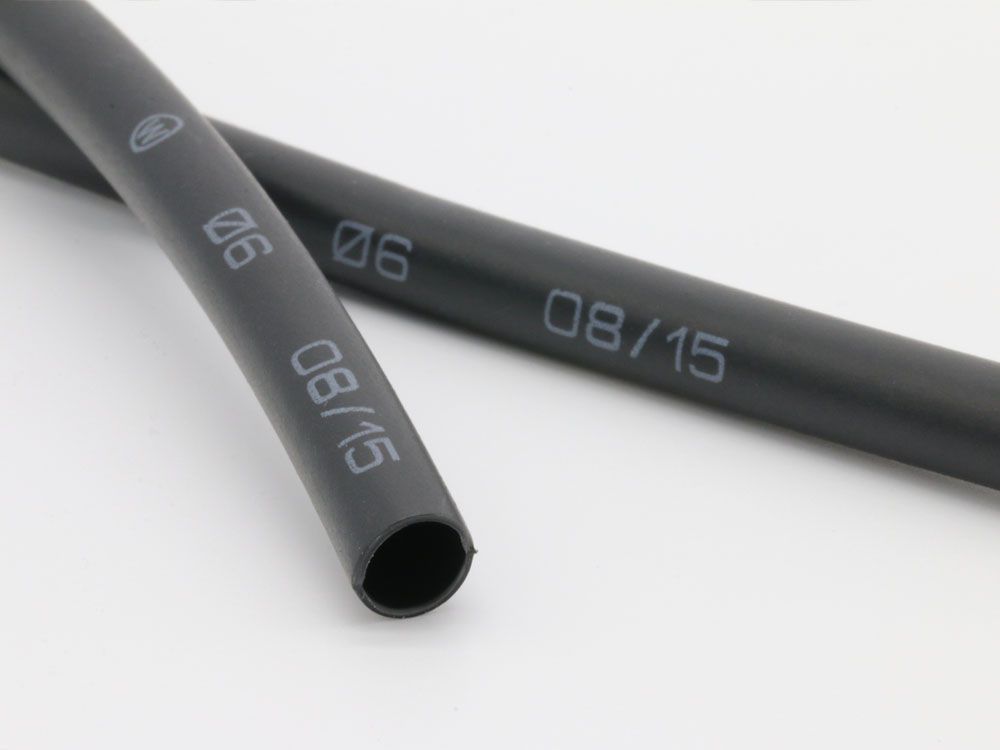

Adhesive-lined heat shrinkable tubing for automotive oil-pipe protection

SBRS-(2X)QF adhesive-lined heat-shrinkable tubing is specially created for protecting automotive oil pipes. This dual wall heat shrink tubing provides preventive protection of automobile brake line, fuel line, hydraulic line and other metal pipes which are vulnerable to bending or clamping during manufacturing, installation, or operation.


Features
  • Shrink ratio: 2:1
  • Semi-rigid outer jacket for protection against mechanical damage
  • Adhesive inner layer for sealing against moisture and corrosion
  • Easy installation
  • High strength bonding, the adhesive layer is hard to be peeled off from pipeline
  • Continuous operating temperature: -45℃~105℃
  • Fully shrink temperature: ≥125℃
Technical Data
Property Test Method Standard Performance
Tensile strength (MPa) ASTM D 2671 ≥12
Elongation (%) ASTM D 2671 ≥300
Longitudinal change ASTM D 2671 -10%~+10%
Tensile strength after aging (MPa) 120℃×24h ≥12
Non-deformability 140℃, 10min, 2kg/cm² , loaded 5min ≤60%
Low-temperature impact ASTM D 746 -35℃, no cracking
Impact resistance to fall Room temperature & -40℃×30min, impacted by a weight of 200g, 0.5m high No cracking
Stress-crack resistance ASTM D 1693 No cracking
Chemical reagents resistance: 0.1mol/L H2SO4,0.1mol/L NaOH, Brake fluid, Engine oil, Gasoline No abnormal in appearance 20℃, 120hr
Adhesive
Property Test Method Standard Performance
Water absorption ASTM D 570 <0.5%
Softening point (℃) ASTM E 28 105±3℃
Peel strength (Al) ASTMD 1000 120N/25mm
Peel strength (PE) ASTMD 1000 80N/25mm
Dimensions
Size (mm) Expanded After Recovery Standard Package
Internal Diameter(mm) Internal Diameter (mm) Total Wall Thickness (mm) Adhesive Thickness (mm) Spool Length (m/spool)
Ø4.5 5 3.2 1.20±0.20 0.20±0.10 300
Ø6.0 6 4.5 1.20±0.20 0.20±0.10 300
Ø8.0 8 6.1 1.30±0.20 0.20±0.10 200
Ø11 11 7.1 1.30±0.20 0.20±0.10 200
Ø13 13 9.8 1.30±0.20 0.20±0.10 100
Ø15 15 11.5 1.30±0.20 0.20±0.10 100
