FEP Heat Shrinkable Tubing
Medical grade heat shrink tubing
Model: RSFR-MT-FEP

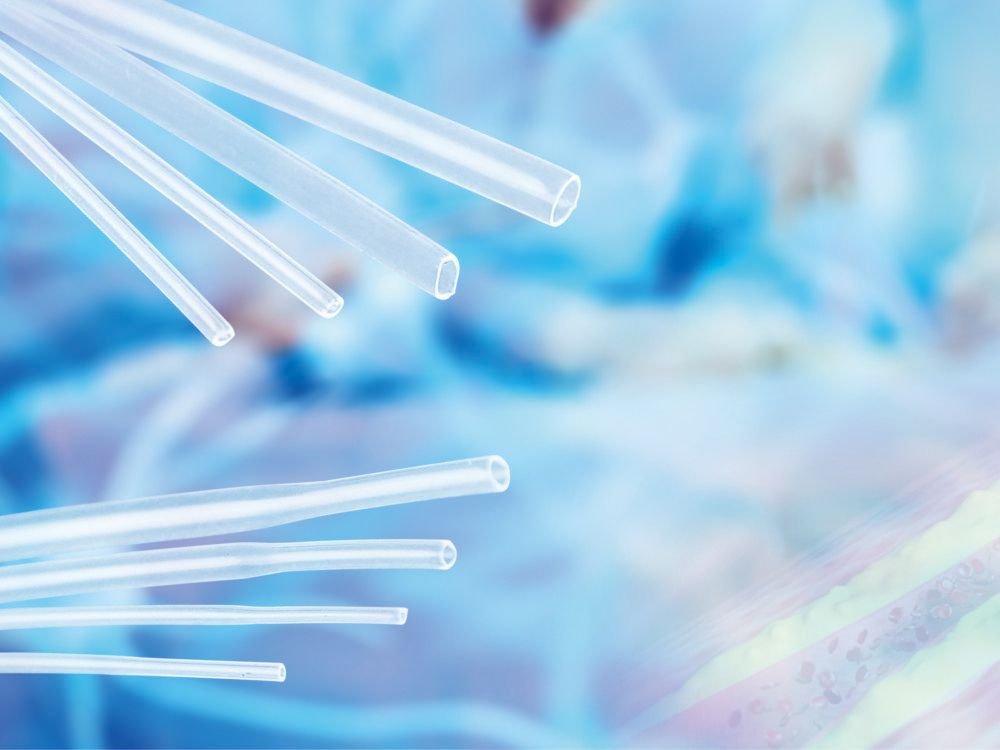

RSFR-MT-FEP FEP heat shrinkable tubing is a medical grade heat shrink tube manufactured from fluorinated ethylene propylene (FEP). Our FEP heat shrinkable tubing has a great deal of transparency and outstanding resistance to high temperature, enabling it to be shrunk in high temperature environments without causing damage while giving a bright and shiny surface. This FEP heat shrinkable tubing can be specifically used for medical devices including drug delivery devices, surgical and vascular instrument, catheters and microcatheters.
Features
- Shrink rate: 1.3:1, 1.6:1
- Operating temperature: -65°C〜200°C
- Shrink temperature: 200℃~230℃
- Superior electrical insulation, physiologically inert
- Compliant with ISO 10993-1
- Meet ethylene oxide (ET0), GAMMA sterilization
- Environmental standard: RoHS
- Standard color: transparent
Properties
| Performance | Test Standard | Standard Performance |
| Longitudinal change rate (%) | ASTM D 2671 | ±10 |
| Tensile strength (MPa) | ASTM D 638 | ≥13.8 |
| Elongation at break (%) | ASTM D 638 | ≥200 |
| Low temperature flexibility | AMS-DTL-23053 | -65°C, 4h, no cracking |
| Dielectric strength (kV/mm) | ASTM D 2671 | ≥19.7 |
| Insulation withstand voltage | ASTM D 149 | 4000V, 60s, no breakdown |
| Part No. | As Supplied Inside Diameter, Min (D) | Recovered Size | ||||
| inch (in) | (mm) | Inside Diameter, Max (d) | Wall Thickness (W) | |||
| inch (in) | (mm) | inch (in) | (mm) | |||
| 0.031 | 0.79 | 0.027 | 0.69 | 0.008±0.002 | 0.20±0.05 | |
| 0.036 | 0.91 | 0.032 | 0.81 | 0.008±0.002 | 0.20±0.05 | |
| 0.045 | 1.14 | 0.039 | 0.99 | 0.008±0.002 | 0.20±0.05 | |
| 0.060 | 1.52 | 0.049 | 1.25 | 0.008±0.002 | 0.20±0.05 | |
| 0.075 | 1.91 | 0.061 | 1.55 | 0.009±0.002 | 0.23±0.05 | |
| 0.092 | 2.34 | 0.072 | 1.83 | 0.009±0.002 | 0.23±0.05 | |
| 0.115 | 2.92 | 0.089 | 2.26 | 0.009±0.002 | 0.23±0.05 | |
| 0.141 | 3.58 | 0.114 | 2.90 | 0.010±0.003 | 0.25±0.08 | |
| 0.158 | 4.01 | 0.124 | 3.15 | 0.010±0.003 | 0.25±0.08 | |
| 0.180 | 4.57 | 0.143 | 363 | 0.010±0.003 | 0.25±0.08 | |
| 0.197 | 5.00 | 0.158 | 4.01 | 0.011±0.004 | 0.28±0.10 | |
| Part No. | As supplied Inside Diameter, Min (D) | Recovered Size | ||||
| inch (in) | (mm) | Inside Diameter, Max (d) | Wall Thickness (W) | |||
| inch (in) | (mm) | inch (in) | (mm) | |||
| 0.031 | 0.80 | 0.020 | 0.50 | 0.008±0.002 | 0.20±0.05 | |
| 0.044 | 1.12 | 0.028 | 0.70 | 0.008±0.002 | 0.20±0.05 | |
| 0.067 | 1.70 | 0.039 | 1.00 | 0.010±0.002 | 0.25±0.05 | |
| 0.075 | 1.91 | 0.047 | 1.20 | 0.010±0.002 | 0.25±0.05 | |
| 0.085 | 2.15 | 0.051 | 1.30 | 0.010±0.002 | 0.25±0.05 | |
| 0.093 | 2.36 | 0.056 | 1.42 | 0.010±0.002 | 0.25±0.05 | |
| 0.098 | 2.50 | 0.059 | 1.50 | 0.010±0.002 | 0.25±0.05 | |
| 0.108 | 2.75 | 0.067 | 1.70 | 0.010±0.003 | 0.25±0.08 | |
| 0.112 | 2.85 | 0.071 | 1.80 | 0.010±0.003 | 0.25±0.08 | |
| 0.125 | 3.18 | 0.075 | 1.91 | 0.010±0.003 | 0.25±0.08 | |
| 0.188 | 4.78 | 0.115 | 2.92 | 0.011±0.004 | 0.28±0.10 | |
If you have questions about our products or want to request a quotation, please feel free to contact us at any time.
