Single Wall Heat Shrink Tubing

Model: RSFR-HCB

Ultra thin wall, very flexible heat shrinkable tubing

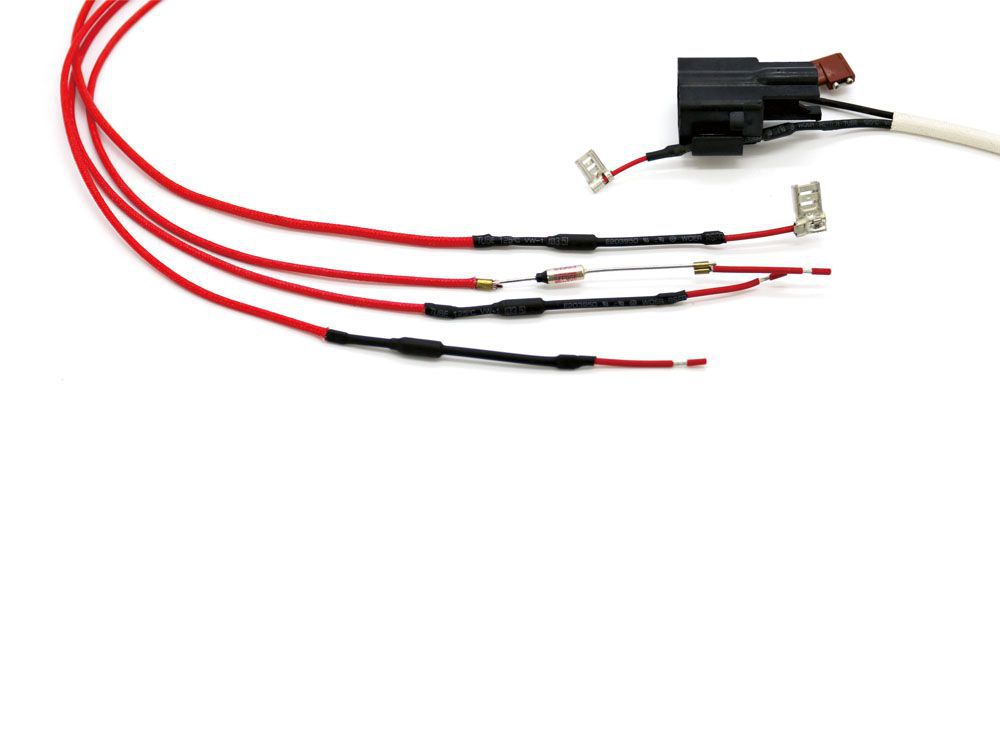

RSFR-HCB heat shrink tubing is a shrinkable tube used to insulate wires, and protect wires and cables from abrasion and mechanical damage. This single wall shrinkable tubing is also suitable for lightweight wire-harness covering and flame-retardant covering.

Features
  • Shrink ratio: 2:1
  • Ultra thin wall
  • Very flexible
  • Flame retardant
  • Continuous operating Temperature: -55℃ to 125℃
  • Fully shrink temperature: ≥110℃
  • RoHS
Typical Applications
  • Electrical insulation
  • Electronic component protection
  • Strain relief for connectors and splices
  • Protection against mechanical damage and abrasion
  • Moisture and corrosion resistance
  • Wire bundling
  • Wire harnessing
Technical Data
Property Test Method Typical Performance
Tensile strength (MPa) ASTM D 2671 ≥10.4
Ultimate elongation (%) ASTM D 2671 ≥200
Tensile strength after heat aging (MPa) 158℃×168h ≥7.3
Ultimate elongation after heat aging (%) 158℃×168h ≥100
Longitudinal change (%) ASTM D 2671 -5%～+5%
Flammability ASTM D 2671 C method VW-1
Dielectric strength (kV/mm) ASTM D 149 ≥15
Volume resistivity (Ω.cm) ASTM D 876 ≥1014
Dimensions
Size As Supplied After Recovery Standard Package
inch mm Internal Diameter (mm) Internal Diameter (mm) Wall Thickness (mm) Spool Length (m/spool)
1/16 1.0 1.40±0.20 ≤0.65 0.20±0.10 200
1.5 1.90±0.20 ≤0.85 0.20±0.10 200
3/32 2.0 2.40±0.20 ≤1.00 0.22±0.10 200
2.5 2.90±0.20 ≤1.30 0.25±0.10 200
1/8 3.0 3.40±0.20 ≤1.50 0.28±0.10 200
3.5 3.90±0.20 ≤1.80 0.28±0.10 200
4.0 4.40±0.20 ≤2.00 0.30±0.10 200
3/16 4.5 4.90±0.20 ≤2.30 0.30±0.10 200
5.0 5.50±0.20 ≤2.50 0.32±0.10 100
1/4 6.0 6.50±0.20 ≤3.00 0.32±0.10 100
5/16 7.0 7.50±0.30 ≤3.50 0.32±0.10 100
8.0 8.50±0.30 ≤4.00 0.32±0.10 100
3/8 9.0 9.50±0.30 ≤4.50 0.35±0.10 100
10.0 10.50±0.30 ≤5.00 0.35±0.10 100
11.0 11.50±0.30 ≤5.50 0.40±0.10 100
1/2 12.0 12.50±0.30 ≤6.00 0.40±0.10 100
13.0 13.50±0.30 ≤6.50 0.40±0.10 100
14.0 14.50±0.30 ≤7.00 0.40±0.10 100
5/8 15.0 15.50±0.40 ≤7.50 0.40±0.10 100
16.0 16.50±0.40 ≤8.00 0.40±0.10 100
17.0 17.50±0.40 ≤8.50 0.40±0.10 100
3/4 18.0 18.50±0.40 ≤9.00 0.42±0.10 100
20.0 20.50±0.50 ≤10.0 0.45±0.10 100
22.0 22.50±0.50 ≤11.0 0.45±0.10 100
1 25.0 25.50±0.50 ≤12.5 0.45±0.10 50
28.0 28.50±0.50 ≤14.0 0.60±0.10 50
