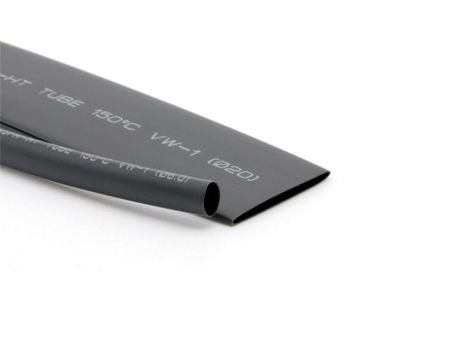

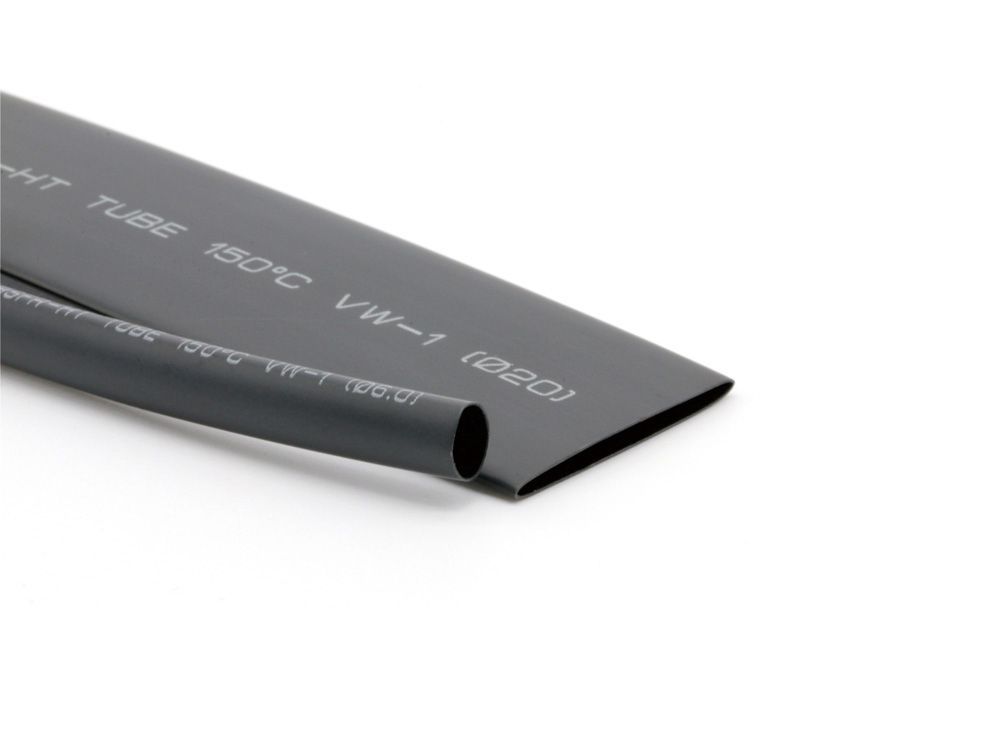

Single Wall Heat Shrink Tubing

Model: RSFR-HT(2X)

150℃ flame retardant heat shrinkable tubing

RSFR-HT(2X) is a highly flame-retardant heat shrink tubing used for insulation and protection of cables, and stress relief on connectors and splices. This single wall heat shrink tubing is especially suitable for applications requiring good abrasion and solvent resistance properties.

Features
  • 2:1 shrink ratio
  • Flame retardant
  • Good resistance to common fluids and solvents
  • UL approved
  • Continuous operating temperature: -55℃～150℃
  • Fully shrink temperature: ≥135℃
  • RoHS compliant

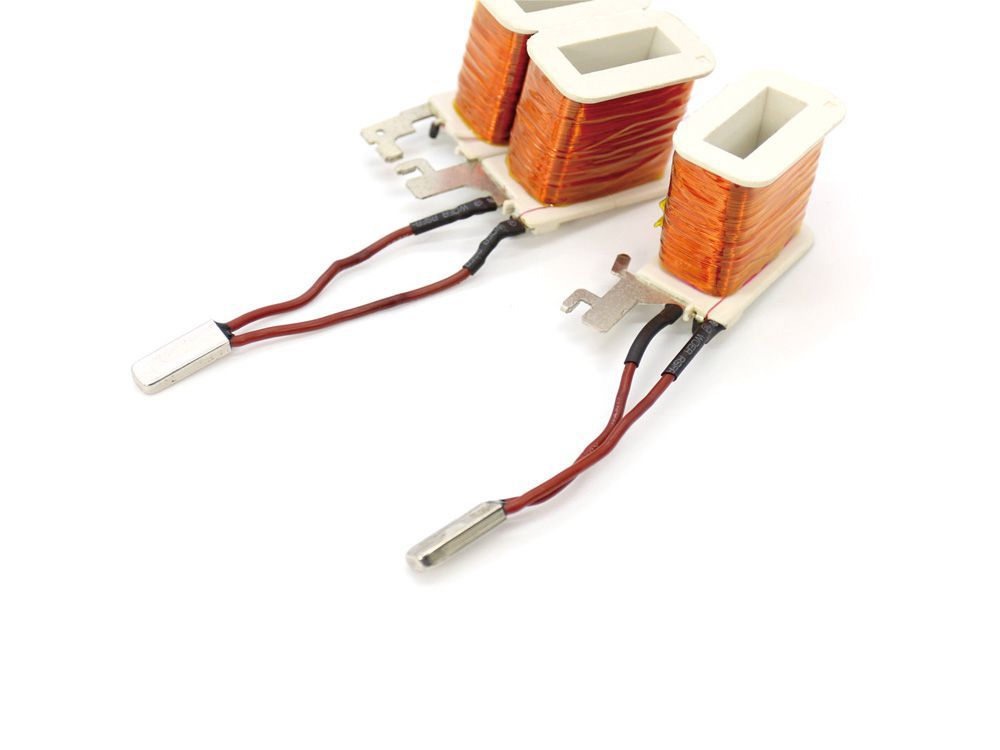

Typical Applications
  • Electrical insulation
  • Strain relief for connectors and splices
  • Protection against mechanical damage and abrasion
  • Moisture and corrosion resistance
  • Wire bundling
  • Wire harnessing
Technical Data
Property Test Method Typical Performance
Tensile strength (MPa) ASTM D 2671 ≥10.4
Ultimate elongation (%) ASTM D 2671 ≥200
Tensile strength after heat aging (MPa) 180℃×168h ≥7.3
Ultimate elongation after heat aging (%) 180℃×168h ≥100%
Corrosion UL 224 Pass
Flammability ASTM D 2671 C method VW-1
Voltage withstand UL 224, 2500V, 60s No breakdown
Heat shock UL 224,250℃×4h No cracks, flowing or dripping
Cold blend UL 224, -30℃×1h No cracks
Dielectric strength (kV/mm) ASTM D 149 ≥15
Volume resistivity (Ω.cm) ASTM D 876 ≥1014
Water absorption (%) UL224 ≤0.5
Dimensions
Size As Supplied After Recovery Standard Package
inch mm Internal Diameter (mm) Internal Diameter, Max (mm) Wall Thickness, Nom (mm) Spool Length (m/spool)
3/64 1.2 ≥1.20 0.6 ≥0.33 200
1/16 1.6 ≥1.60 0.8 ≥0.33 200
3/32 2.4 ≥2.40 1.2 ≥0.44 200
1/8 3.2 ≥3.2 1.6 ≥0.44 200
3/16 4.8 ≥4.80 2.4 ≥0.44 100
1/4 6.4 ≥6.4 3.2 ≥0.56 100
5/16 7.9 ≥7.9 4.0 ≥0.56 100
3/8 9.5 ≥9.5 4.8 ≥0.56 100
1/2 12.7 ≥12.7 6.4 ≥0.56 100
5/8 15.9 ≥15.9 8.0 ≥0.69 100
3/4 19.1 ≥19.1 9.5 ≥0.69 100
1 25.4 ≥25.4 12.7 ≥0.77 50
1-1/4 31.8 ≥31.8 15.9 ≥0.87 50
1-1/2 38.1 ≥38.1 19.1 ≥0.87 50
2 50.8 ≥50.8 25.4 ≥0.97 25
3 76.2 ≥76.2 38.1 ≥1.17 25
4 101.6 ≥101.6 50.8 ≥1.17 25
5 127 ≥127 63.5 ≥1.17 25
6 152.4 ≥152.4 76.2 ≥1.17 25
