Heat Shrink Solder Seal Wire Connector
Model: SWT-125
Heat Shrink Solder Sleeve

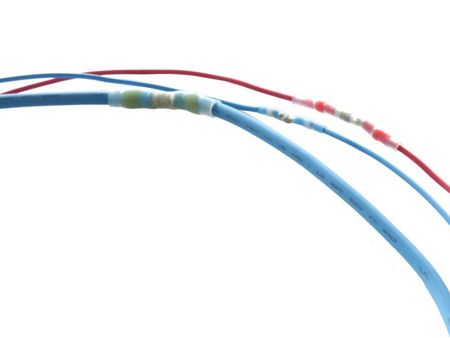

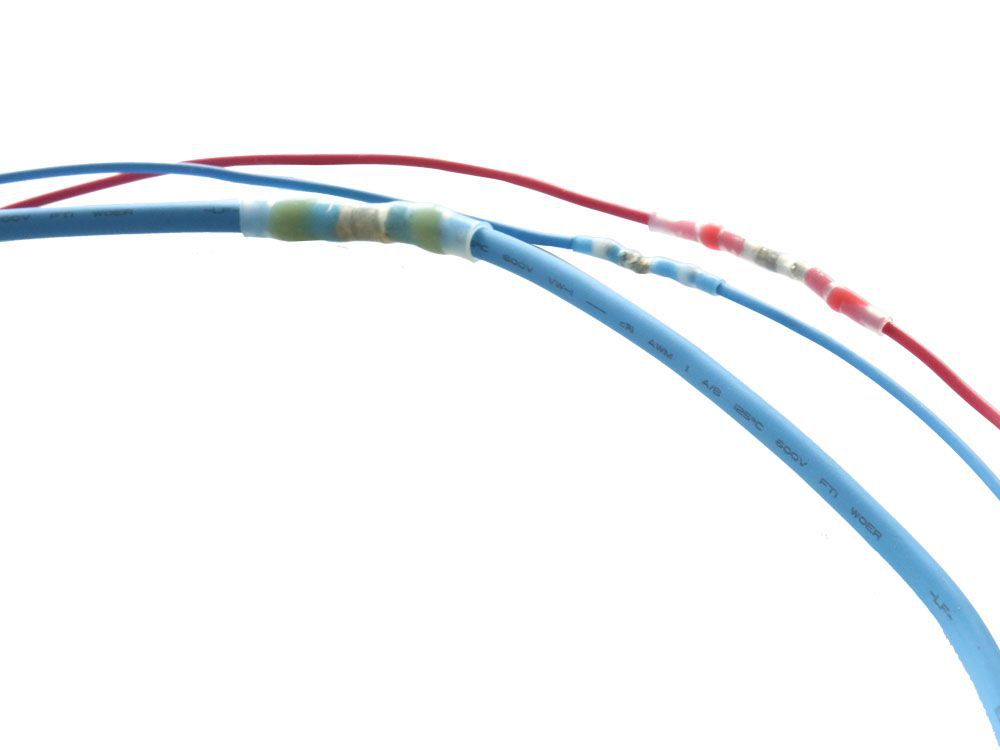

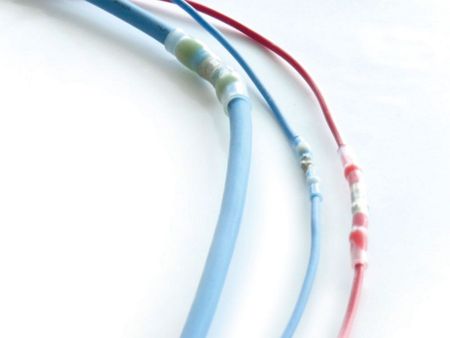

SWT-125 heat shrink solder seal wire connectors are designed to make waterproof connections of wires in various applications requiring resistance to fuels, water and cleaning solvents.
Features
- 2:1 shrink ratio
- Extreme fluid resistance and rub resistance
- High transparency makes assembling more convenient
- Continuous operating temperature: -40˚C~125˚C
- Minimum shrinking temperature:
85˚C for non-flame resistance type (SWT-105/ SWT-125)
135˚C for flame resistance type (SWT-150)
Properties | Requirements | Test Method |
Tensile strength (MPa) | ≥10.3 | ASTM D638 |
Ultimate elongation (%) | ≥200 | ASTM D638 |
Voltage withstand (V) | 2500V, 60s, Pass | ATTM D149 |
Dielectric strength (MV/m) | ≥19.7 | ATTM D149 |
Volume resistivity (Ω.cm) | ≥1014 | IEC 93 |
Corrosion | Pass | ASTM D2671 |

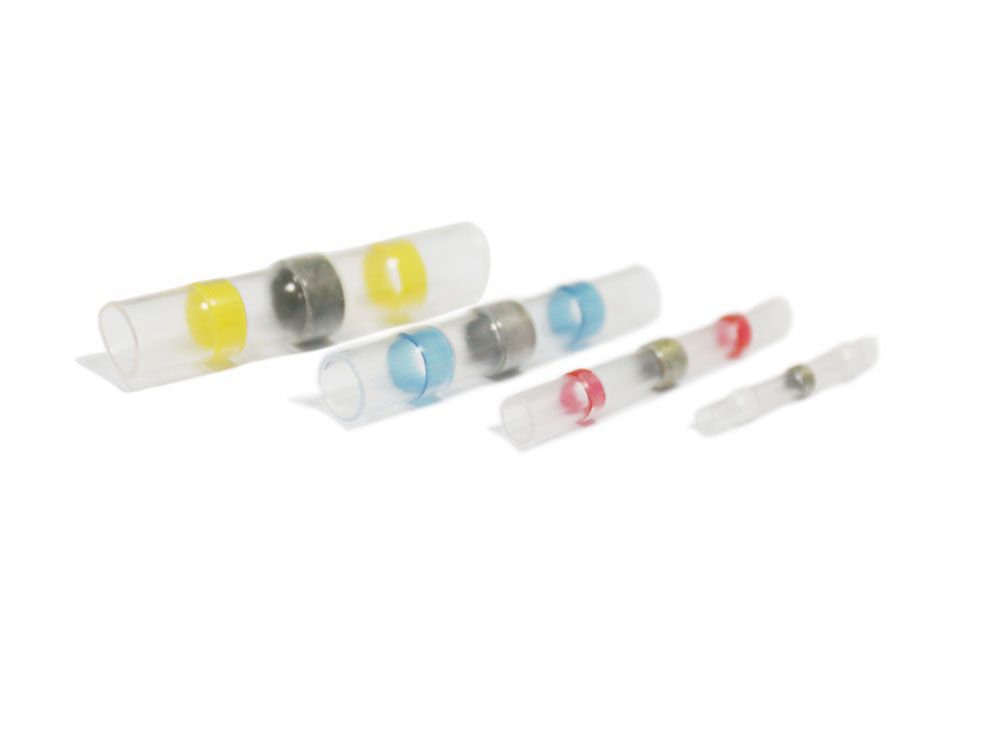

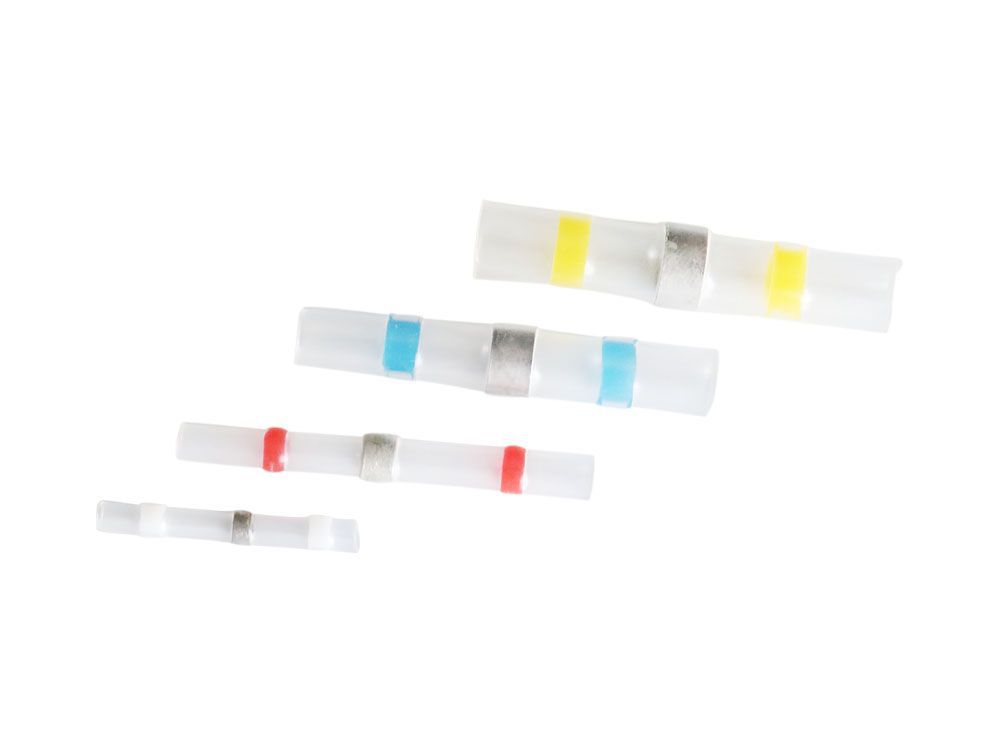

Order Code | Heat Shrinkable Sleeve | Solder Ring | Color | |
ID (ØA)(mm) | Length (L)(mm) | Width (mm) | ||
≥1.7 | 26.0±0.5 | 2.5±0.1 | White | |
≥2.6 | 42.0±0.5 | 3.5±0.1 | Red | |
≥4.5 | 42.0±0.5 | 4.0±0.1 | Blue | |
≥6.0 | 42.0±0.5 | 4.5±0.1 | Yellow |
Note: “SWT-125”: the temperature grade of heat shrinkable sleeve is 125℃ grade.
