Braided Silicone Rubber Tubing / Silicone Coated Fiberglass Sleeving, SRG-N/W

Braided Silicone Rubber Tubing / Silicone Coated Fiberglass Sleeving

Model: SRG-N/W

Non-heat shrinkable tubing

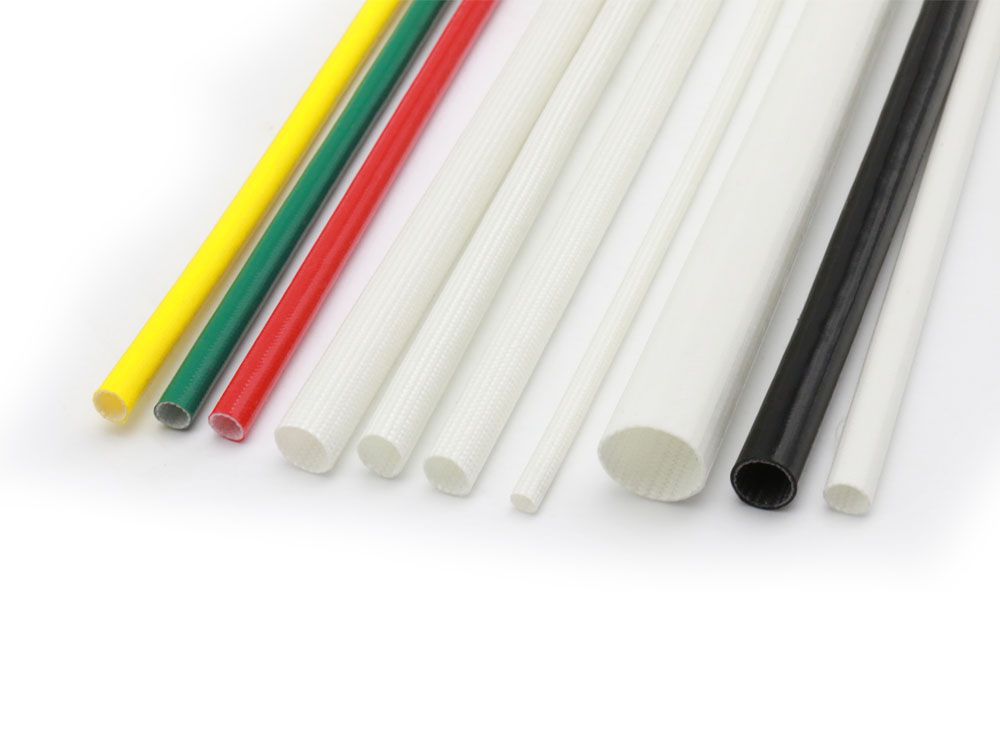

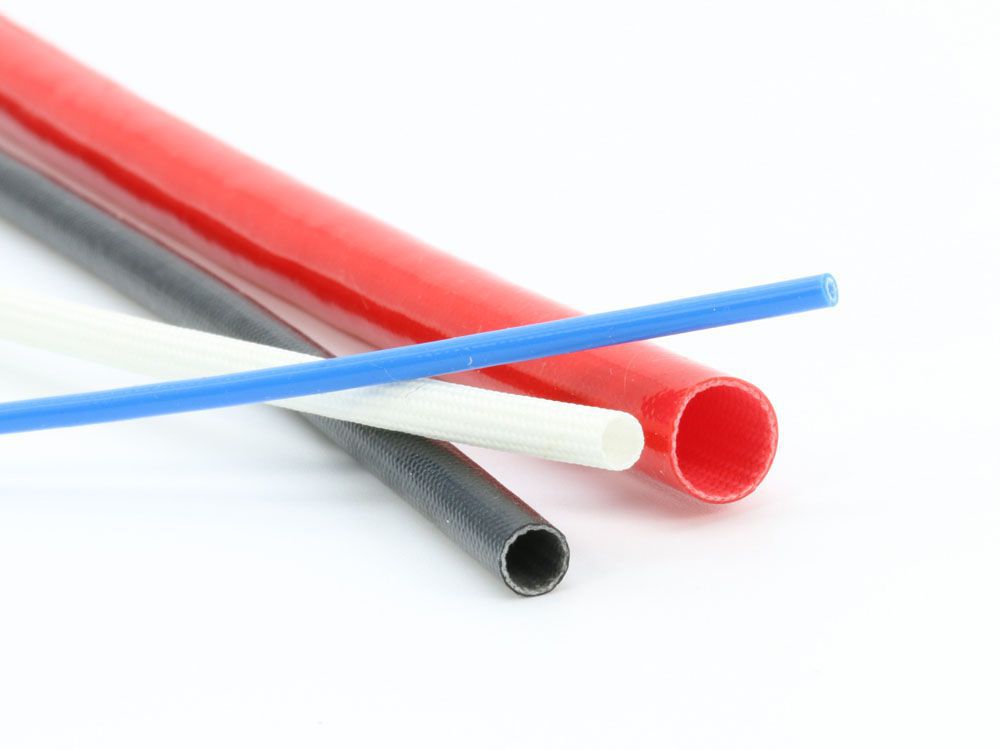

SRG-N/W silicone coated fiberglass sleeving is non-heat shrinkable tubing engineered with a silicone rubber coating over braided fiberglass sleeve. This braided silicone rubber tubing can also be made with composition of inner extruded silicone rubber tube with fiberglass braided, and then coated with silicone resin. The silicone coated fiberglass tubing is suitable for general insulating protection of electrical cables, hoses, pipes and metal tubes for various household appliances, light fitting, machines, electronic instruments, etc.

Features

Two types are available: inner braided fiberglass sleeve with outer silicone rubber coating (SRG-N) and inner extruded silicone rubber tube with fiberglass braided and outer silicone rubber coating (SRG-W)
Operating temperature: -55℃~200℃
RoHS compliant
Good flexibility, arc resistance, corona resistance
Standard color: white (other colors upon request)

SRG-N Silicone Coated Fiberglass Sleeving

Size (mm)	Average Wall Thickness (mm)
Size (mm)	Allowance (mm)	1200V	1500V	2500V	4000V	7000V
0.5	+0.3,-0.1	≥0.20	≥0.23	≥0.25	≥0.35	≥0.37
1.0	+0.3,-0.1	≥0.20	≥0.23	≥0.25	≥0.35	≥0.37
1.5	+0.3,-0.1	≥0.20	≥0.23	≥0.25	≥0.35	≥0.37
2.0	+0.3,-0.1	≥0.20	≥0.23	≥0.25	≥0.35	≥0.37
2.5	+0.3,-0.1	≥0.20	≥0.23	≥0.25	≥0.35	≥0.37
3.0	+0.3,-0.1	≥0.23	≥0.25	≥0.27	≥0.37	≥0.40
3.5	+0.3,-0.1	≥0.23	≥0.25	≥0.27	≥0.37	≥0.40
4.0	+0.3,-0.1	≥0.23	≥0.25	≥0.27	≥0.37	≥0.40
4.5	+0.3,-0.1	≥0.23	≥0.25	≥0.27	≥0.37	≥0.40
5.0	+0.3,-0.1	≥0.25	≥0.30	≥0.32	≥0.40	≥0.45
6.0	+0.3,-0.1	≥0.25	≥0.30	≥0.32	≥0.40	≥0.45
7.0	+0.3,-0.1	≥0.25	≥0.30	≥0.32	≥0.40	≥0.45
8.0	+0.3,-0.1	≥0.25	≥0.30	≥0.32	≥0.40	≥0.45
9.0	+0.3,-0.1	≥0.25	≥0.30	≥0.32	≥0.40	≥0.45
10.0	+0.3,-0.1	≥0.38	≥0.40	≥0.42	≥0.45	≥0.50
12.0	+1.0,-1.0	≥0.38	≥0.40	≥0.42	≥0.45	≥0.50
13.0	+1.0,-1.0	≥0.38	≥0.40	≥0.42	≥0.45	≥0.50
14.0	+1.0,-1.0	≥0.38	≥0.40	≥0.42	≥0.45	≥0.50
18.0	+1.0,-1.0	≥0.38	≥0.40	≥0.42	≥0.45	≥0.50
20.0	+1.0,-1.0	≥0.40	≥0.40	≥0.42	≥0.45	≥0.50
25.00	+1.0,-1.0	≥0.40	≥0.45	≥0.47	≥0.50	≥0.55
30.0	+1.0,-1.0	≥0.40	≥0.45	≥0.47	≥0.50	≥0.55
35.0	+1.0,-1.0	≥0.40	≥0.45	≥0.47	≥0.50	≥0.55
40.0	+1.0,-1.0	≥0.40	≥0.45	≥0.47	≥0.50	≥0.55

SRG-W Braided Silicone Rubber Tubing

Internal Diameter (mm)		Average Wall Thickness (mm)
Size	Tolerance	Average Wall Thickness (mm)
1.0~2.5	0.20±0.00	0.50±0.05
3.0~5.5	0.20±0.00	0.50±0.05
6.0~7.0	0.20±0.00	0.60±0.05
