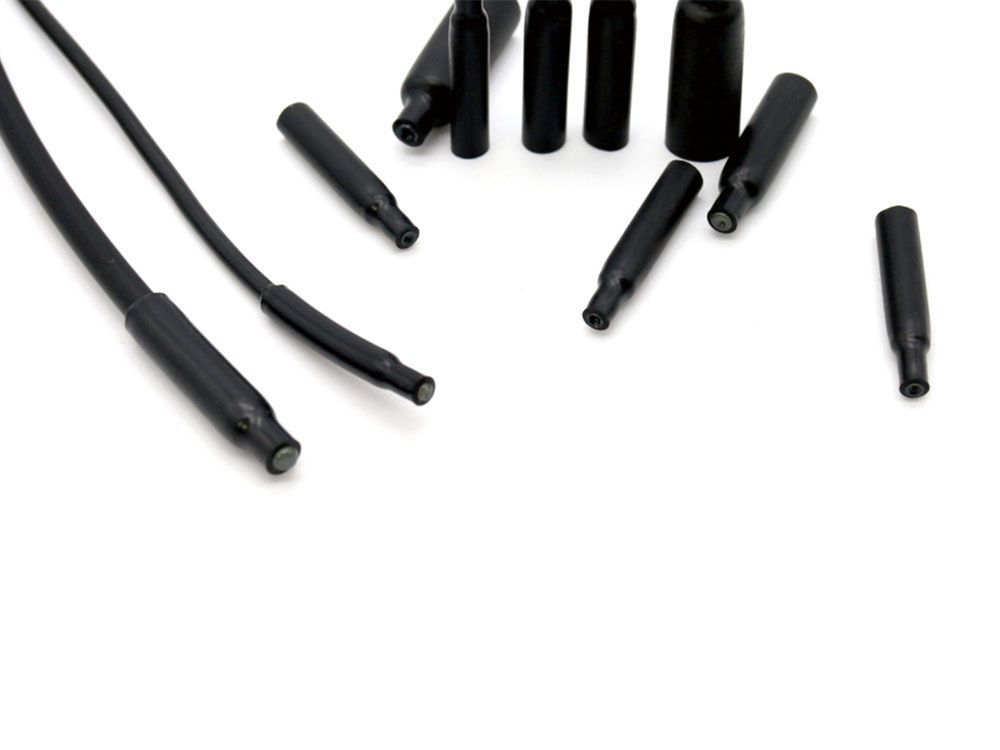

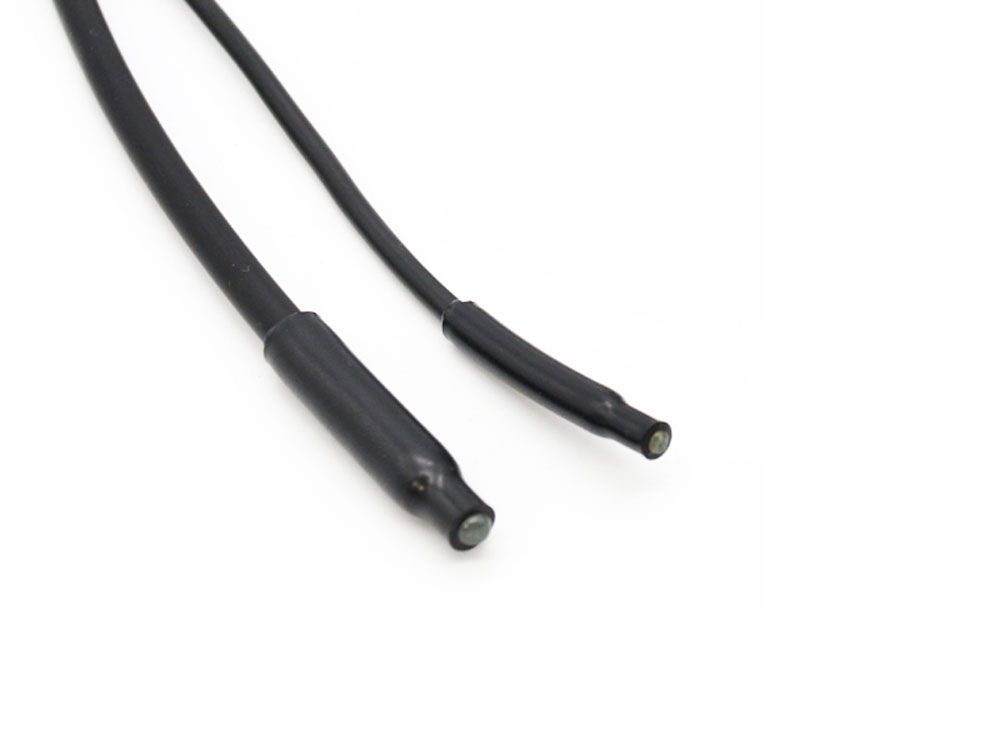

Heat Shrink End Cap

Model: SBRS-CAPS

Adhesive-lined heat shrinkable insulating end cap

SBRS-CAPS heat shrink end cap is an adhesive-lined heat shrinkable insulating end cap with 4:1 shrink ratio, specially designed for insulation, sealing and protection of varying end or stub splices in wiring harnesses and electronic assemblies.

Features
  • 4:1 shrink ratio allows few sizes to cover a wide range of splices
  • Sealing and protection against water, moisture and chemical
  • Adhesive bonds readily to PVC, XLPE and PP-EPDM cable jackets
  • Shrinks rapidly for quick installation
  • Continuous operating temperature: -45℃～125℃
  • Minimum shrinking temperature: 125℃
Technical Data
Property Test Method Standard Performance Typical Performance
Tensile strength (MPa) ASTM D 2671 ≥10.4 11.5
Elongation (%) ASTM D 2671 ≥300 450
Tensile strength after aging (MPa) UL224 158℃×168hr ≥7.3 8.5
Elongation after aging (%) UL224 158℃×168hr ≥200 350
Dielectric strength (kV/mm) IEC 60243 ≥15 17.5
Volume resistivity (Ω.cm) IEC 60093 ≥1×1014 2.5×1014
Dimensions
Order Code Size (mm) Standard Length (mm) Expanded After Recovery
Internal Diameter (mm) Internal Diameter (mm) Total Wall Thickness(mm) Outside Layer Thickness (mm) Adhesive Thickness (mm)
CAPS-1 3.2 22 ≥3.2 ≤0.8 1.20±0.30 0.64±0.20 0.56±0.20
CAPS-2 4.8 25.4 ≥4.8 ≤1.3 1.52±0.30 0.76±0.20 0.76±0.20
CAPS-3 6.4 8.42 ≥6.4 ≤1.52 1.91±0.30 1.00±0.20 0.91±0.20
