High Temperature Heat Shrink Marker Sleeve

High-temperature, Heat Shrinkable Identification Sleeves

Model: PSFR

PSFR-M high temperature heat shrink marker sleeve is a type of heat shrink identification sleeves designed for wire and cable identification in applications with high temperature environments or requiring extreme resistance to fuels, lubricants and cleaning solvents. The PSFR-M high temperature heat shrink marker sleeve is printable using thermal transfer printer, and the identification marks are durable and can remain legible even when exposed to abrasion, aggressive cleaning solvents and industrial fluids.

Standard

AMS-DTL-23053/18, SAE-AS 81531, MIL-STD-202F/Method 215J, UL224, RoHS etc.

Features
  • Material: fabricated from irradiated, thermally stabilized, flame retarded, modified PVDF
  • Application: defense, aerospace, mass transit, etc.
  • Operating temperature range: -55℃～+225℃
  • Minimum recovery temperature: +135℃
  • Maximum storage temperature: +50℃
  • Shrink ratio: 2:1
  • Color: white, yellow, other colors are available upon request
  • Printing: single sided printing or double sided printing

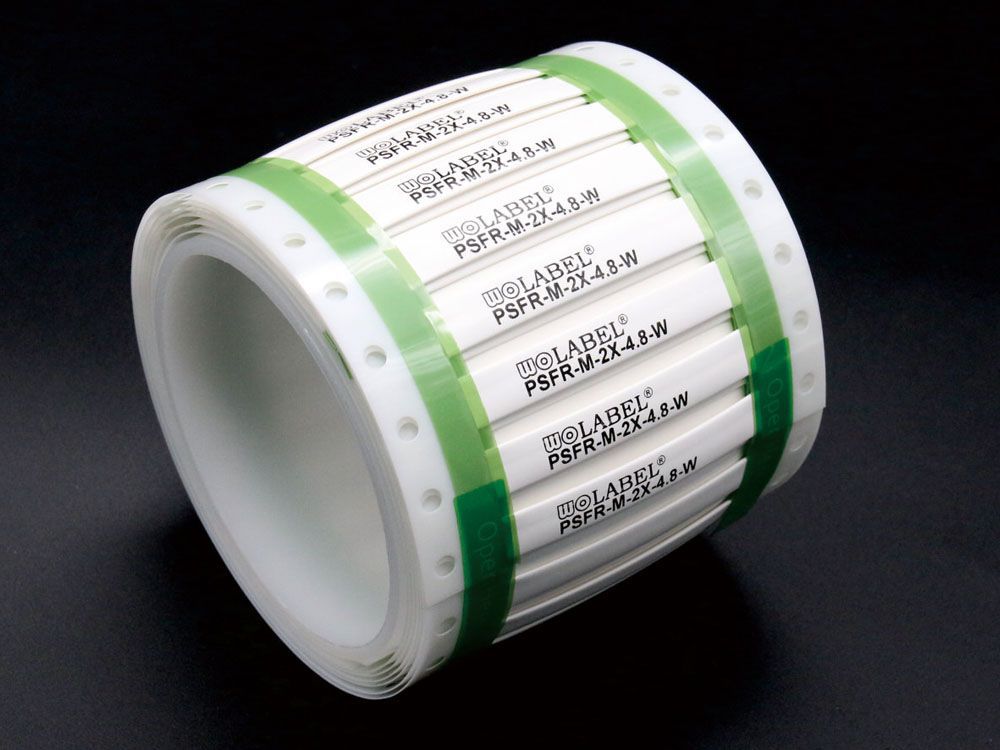

  • Supplied format: ladder-style or continuous sleeve
  • Recommended printer: thermal transfer printer
  • Recommended ribbon: N85 resin ribbon, black, 100mm(width)×300m(length)
Technical Data
Property Testing Requirement WOER Results
Tensile strength (MPa) 24.3 31.3
Ultimate Elongation (%) 200 330
Low temperature flexibility 4 hours at -55±1℃ No cracking Pass(no cracking)
Heat shock 4 hours at 275±3℃ No cracking, flowing or dripping Pass(no cracking, legible after 100 rubs))
Dielectric strength (kV/mm) 15.7 43.0
Volume Resistivity (Ω.cm) 1.0×1012minimum 9.1×1012
Corrosive effect No corrosive Pass
Flammability VW-1 Pass
Heat aging 168 hours at 225±2℃ No cracking, flowing or dripping Pass(no cracking, legible after 100 rubs)
Print performance SAE-AS 81531 Pass(legible after 100 rubs)
Strokes MIL-STD-202F Pass
Dimensions

Shrink ratio-2X

Order Code As Supplied (mm) As Supplied (mm)
ID (D) Flatten Width (W2) Double Wall Thickness ID (d) Single Wall Thickness
AMS-M-2X-1.6 2.00±0.20 3.7±0.3 0.48±0.10 ≤0.79 0.45±0.06
AMS-M-2X-2.4 2.79±0.20 5.0±0.3 0.48±0.10 ≤1.18 0.49±0.06
AMS-M-2X-3.2 3.64±0.23 6.3±0.4 0.48±0.10 ≤1.59 0.51±0.06
AMS-M-2X-4.8 5.26±0.25 8.9±0.4 0.49±0.10 ≤2.36 0.54±0.06
AMS-M-2X-6.4 6.92±0.28 11.5±0.4 0.50±0.10 ≤3.18 0.56±0.06
AMS-M-2X-9.5 10.2±0.32 16.7±0.5 0.51±0.11 ≤4.75 0.59±0.06
AMS-M-2X-12.7 13.5±0.36 21.8±0.6 0.52±0.11 ≤6.35 0.60±0.07
AMS-M-2X-19- 20.1±0.40 32.2±0.6 0.53±0.11 ≤9.53 0.62±0.07
AMS-M-2X-25- 26.7±0.45 42.5±0.7 0.55±0.12 ≤12.7 0.63±0.07
AMS-M-2X-38- 39.8±0.51 63.2±0.8 0.57±0.12 ≤19.1 0.64±0.07
AMS-M-2X-51- 53.0±0.56 83.9±0.9 0.58±0.13 ≤25.4 0.64±0.08
AMS-M-2X-76- 79.4±0.56 125.3±1.0 0.59±0.13 ≤38.1 0.64±0.09

Shrink ratio-3X

Order Code As Supplied (mm) As Supplied (mm)
ID (D) Flatten Width (W2) Double Wall Thickness ID (d) Single Wall Thickness
AMS-M-3X-1.6- 2.00±0.20 3.7±0.3 0.47±0.10 ≤0.53 0.52±0.06
AMS-M-3X-2.4- 2.79±0.20 5.0±0.3 0.47±0.10 ≤0.79 0.57±0.06
AMS-M-3X-3.2- 3.64±0.23 6.3±0.4 0.48±0.10 ≤1.06 0.61±0.06
AMS-M-3X-4.8- 5.26±0.25 8.9±0.4 0.49±0.10 ≤1.59 0.67±0.06
AMS-M-3X-6.4- 6.92±0.28 11.5±0.4 0.50±0.10 ≤2.36 0.71±0.06
AMS-M-3X-9.5- 10.2±0.32 16.7±0.5 0.52±0.11 ≤3.18 0.77±0.06
AMS-M-3X-12.7 13.5±0.36 21.8±0.6 0.53±0.11 ≤4.75 0.80±0.07
AMS-M-3X-19- 20.1±0.40 32.2±0.6 0.55±0.11 ≤6.35 0.84±0.07
AMS-M-3X-25- 26.7±0.45 42.5±0.7 0.56±0.12 ≤8.47 0.86±0.07
AMS-M-3X-38- 39.8±0.51 63.2±0.8 0.57±0.12 ≤12.9 0.89±0.07
AMS-M-3X-51- 53.0±0.56 83.9±0.9 0.57±0.1 ≤17.2 0.90±0.08
AMS-M-3X-76- 79.4±0.56 125.3±1.0 0.57±0.13 ≤25.8 0.92±0.09
