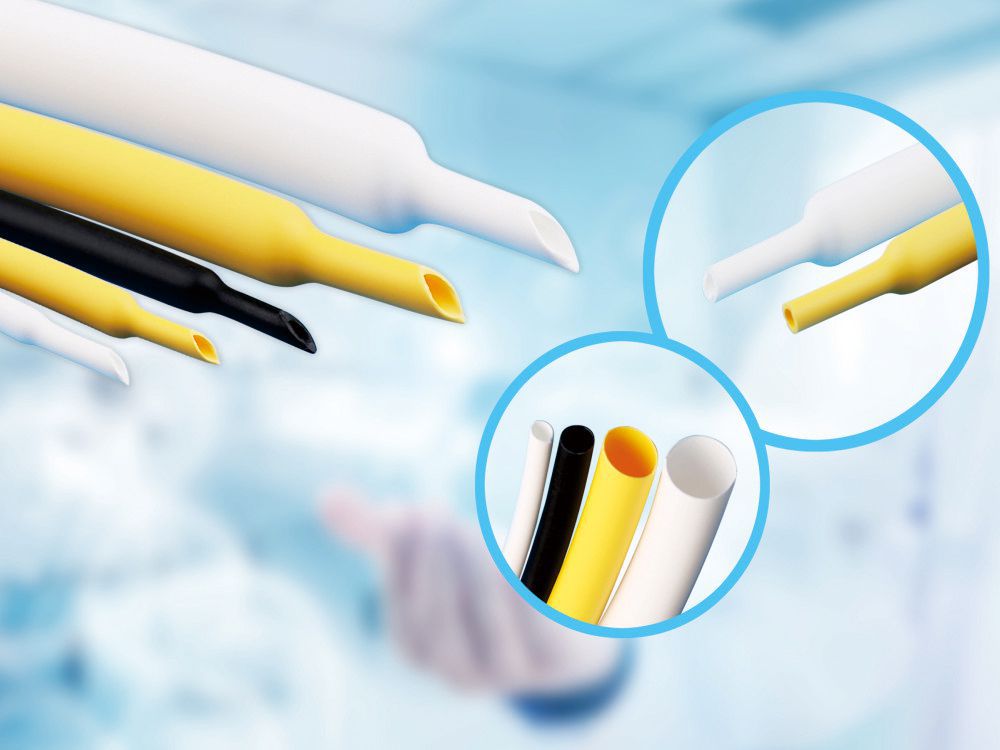

Halogen-free LDPE Heat Shrinkable Tubing
Medical grade heat shrink tubing
Model: RSFR-MT-90H-FZR
RSFR-MT-90H-FZR is a halogen-free medical grade heat shrinkable tubing made from cross-linked low-density polyethylene (LDPE). This halogen-free LDPE heat shrinkable tubing offers excellent flexibility, enabling it an ideal option for strain relief applications. Because of its homogenous structure, which also contributes to its consistency and great performance, the product is less likely to have defects, pinholes, seams, cracks, or flaws.
Features
- Shrink rate: 2:1
- Operating temperature: -45°C ~+90°C
- Initial shrink temperature: ≥+80℃
- Superior electrical insulation
- Abrasion resistance
- Compliant with ISO10993-1
- Environmental standard: RoHS
- Standard color: transparent, black (other colors can be customized)
Properties
| Performance | Test Standard | Standard Performance |
| Longitudinal change rate (%) | ASTM D 2671 | -10~+5 |
| Tensile strength (MPa) | ASTM D 2671 | ≥10.4 |
| Elongation at break (%) | ASTM D 2671 | ≥200 |
| Low temperature bending (-30℃, 1h) | ASM-DTL-23053 | No cracks |
| Dielectric strength (kV/mm) | ASTM D 149 | ≥15.7 |
| Volume Resistivity (Ω.cm) | IEC 60093 | ≥1015 |
| Part No. | As Supplied I.D (mm) | Recovered Size | |
| Inside Diameter, Max (d) | Wall Thickness (W) | ||
| (mm) | (mm) | ||
| RSFR-MT-90H-1.2-* | 1.40±0.20 | 0.60 | 0.40±0.08 |
| RSFR-MT-90H-1.6-* | 1.80±0.20 | 0.80 | 0.43±0.08 |
| RSFR-MT-90H-2.4-* | 2.70±0.30 | 1.20 | 0.50±0.08 |
| RSFR-MT-90H-3.2-* | 3.60±0.30 | 1.60 | 0.50±0.08 |
| RSFR-MT-90H-4.8-* | 5.20±0.30 | 2.40 | 0.50±0.08 |
| RSFR-MT-90H-6.4-* | 7.00±0.30 | 3.20 | 0.64±0.08 |
| RSFR-MT-90H-9.5-* | 10.00±0.30 | 4.80 | 0.64±0.08 |
| RSFR-MT-90H-12.7-* | 13.50±0.40 | 6.40 | 0.64±0.08 |
| RSFR-MT-90H-19.1-* | 20.10±0.40 | 9.50 | 0.76±0.08 |
If you have questions about our products or want to request a quotation, please feel free to contact us at any time.
