Single Wall Heat Shrink Tubing, RSFR-(2X)125HPF
Single Wall Heat Shrink Tubing, RSFR-(2X)125HPF
Single Wall Heat Shrink Tubing, RSFR-(2X)125HPF Single Wall Heat Shrink Tubing, RSFR-(2X)125HPF Single Wall Heat Shrink Tubing, RSFR-(2X)125HPF
Request a Quote

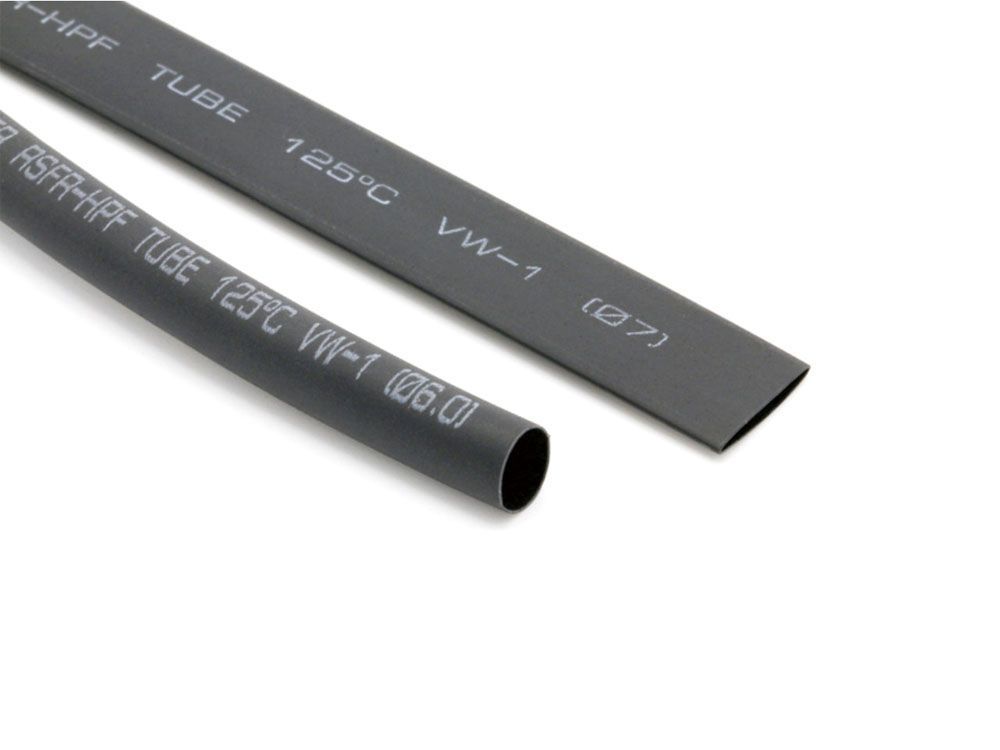

Single Wall Heat Shrink Tubing

Model: RSFR-(2X)125HPF

Halogen free, red phosphorus free, flame-retardant heat shrinkable tube

RSFR-(2X)125HPF single wall heat shrink tubing is halogen free and red phosphorus free heat shrinkable tube. Made from radiation cross-linked polyolefin, this heat shrink tubing has great performance, less smoke and low toxicity when it burns, primarily suitable for wire insulation, corrosion and mechanical protection, as well as cable harnessing and protection.


Features
  • 2:1 shrink ratio
  • Flame retardant
  • Resistant to acid and alkali
  • Can be used in applications with strict requirement of environmental protection
  • Continuous operating temperature: -55℃~125℃
  • Fully shrink temperature: ≥125℃

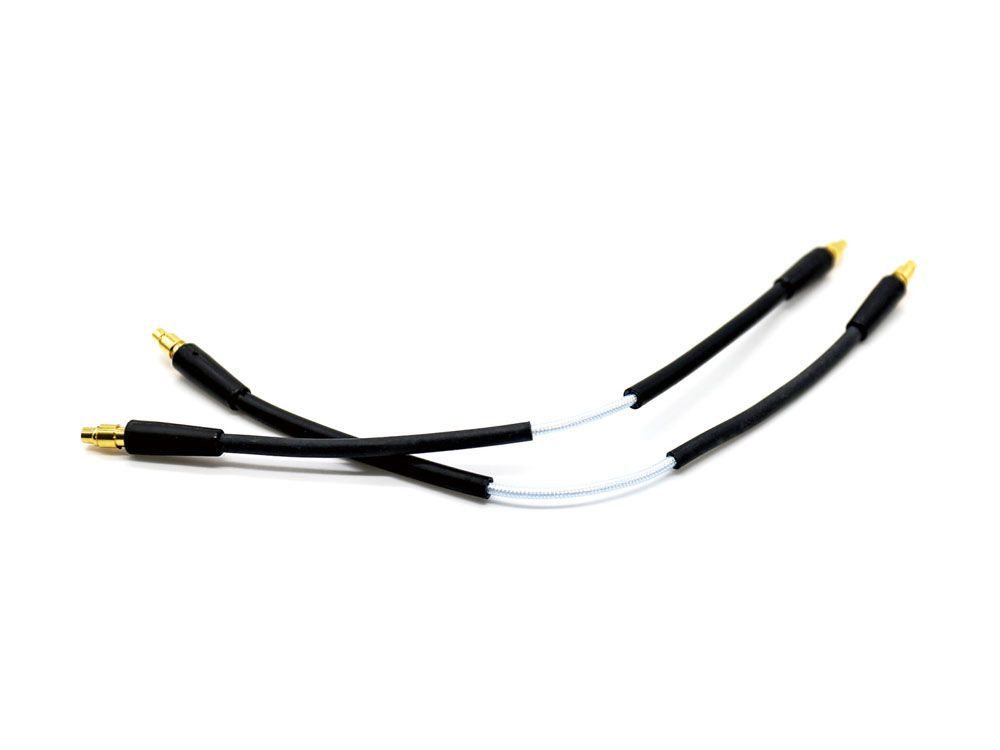

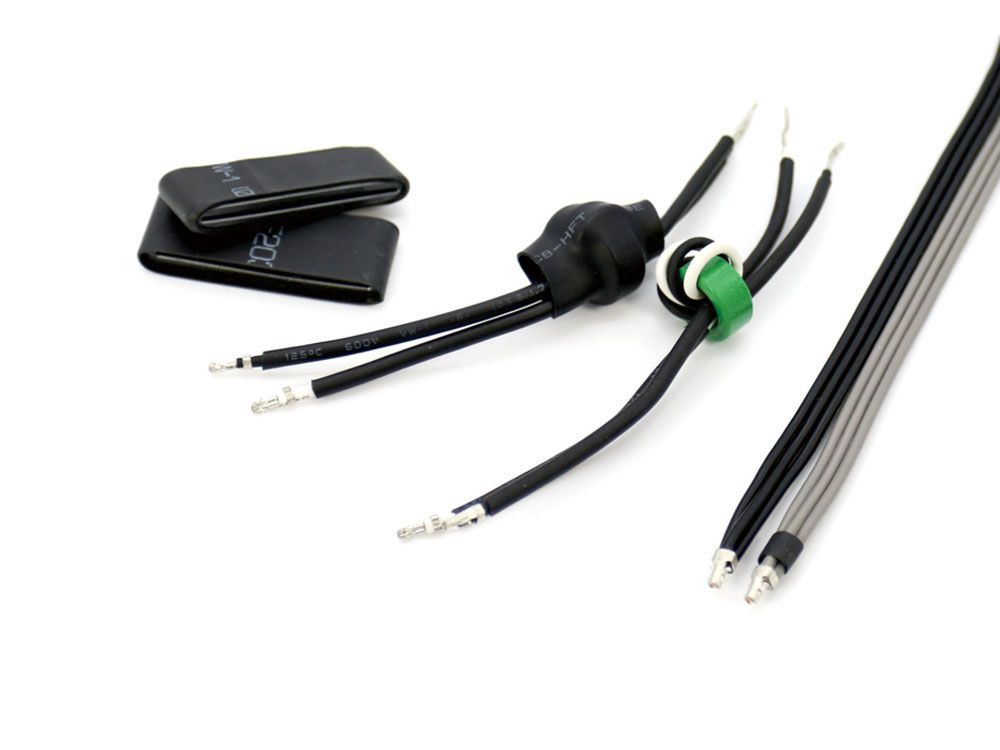

Typical Applications
  • Electrical insulation
  • Strain relief for connectors and splices
  • Protection against mechanical damage and abrasion
  • Moisture and corrosion resistance
  • Wire bundling
  • Cable harnessing
Technical Data
Item Test Method Requirement
Physical Property Tensile strength (MPa) GB/T1040 ≥10.4
Elongation (%) GB/T1040 ≥200
Tensile strength after aging UL224; 158℃×168hr ≥7.3
Elongation after aging (%) UL224; 158℃×168hr ≥100
Heat resistance UL224; 200℃×4hr No viscidity, no cracking
Cold blend UL224; -30℃×1hr No cracking
Electrical Property Dielectric withstand 300V UL224 No breakdown at 1500V
600V UL224 No breakdown at 2500V
Dielectric GB/T1408 ≥15
Volume resistance (Ω.cm) GB/T1410 ≥1×1014
Chemical Property Anti corrosion UL224; 158℃×168hr Pass
Copper stability UL224; 158℃×168hr Pass
Flammability UL224 VW-1
Dimensions
Size (mm) As supplied (mm) After recovery (mm) Standard packaging (m/spool) Application (mm)
I.D W.T. I.D W.T.
Ø0.6 0.9±0.2 0.18±0.05 ≤0.40 0.33±0.10 200 0.4~0.7
Ø0.8 1.1±0.2 0.18±0.05 ≤0.50 0.33±0.10 200 0.6~0.8
Ø1.0 1.5±0.2 0.20±0.05 ≤0.65 0.36±0.10 200 0.75~0.9
Ø1.5 2.0±0.2 0.20±0.05 ≤0.85 0.36±0.10 200 0.95~1.4
Ø2.0 2.5±0.2 0.20±0.05 ≤1.00 0.45±0.10 200 1.1~1.8
Ø2.5 3.0±0.2 0.20±0.05 ≤1.30 0.45±0.10 200 1.35~2.3
Ø3.0 3.5±0.2 0.23±0.05 ≤1.50 0.45±0.10 200 1.6~2.7
Ø3.5 4.0±0.2 0.23±0.05 ≤1.80 0.45±0.10 200 1.85~3.2
Ø4.0 4.5±0.2 0.25±0.05 ≤2.00 0.45±0.10 200 2.1~3.6
Ø4.5 5.0±0.2 0.28±0.05 ≤2.30 0.56±0.10 100 2.35~4.0
Ø5.0 5.5±0.2 0.28±0.05 ≤2.50 0.56±0.10 100 2.6~4.5
Ø6.0 6.5±0.2 0.28±0.05 ≤3.00 0.56±0.10 100 3.1~5.4
Ø7.0 7.5±0.3 0.30±0.05 ≤3.50 0.56±0.10 100 3.7~6.3
Ø8.0 8.5±0.3 0.30±0.08 ≤4.00 0.56±0.10 100 4.2~7.2
Ø9.0 9.5±0.3 0.30±0.08 ≤4.50 0.56±0.10 100 4.7~8.0
Ø10 10.5±0.3 0.30±0.08 ≤5.00 0.56±0.10 100 5.2~9.0
Ø12 12.5±0.3 0.30±0.08 ≤6.00 0.56±0.10 100 6.2~11
Ø14 14.5±0.3 0.35±0.08 ≤7.00 0.70±0.10 100 7.3~13
Ø15 15.5±0.4 0.35±0.08 ≤7.50 0.70±0.10 100 7.8~14
Ø16 16.5±0.4 0.35±0.10 ≤8.00 0.70±0.10 100 8.3~15
Ø18 19.0±0.5 0.35±0.10 ≤9.00 0.70±0.10 100 9.3~17
Ø20 22.0±0.5 0.40±0.10 ≤10.00 0.83±0.15 100 10.4~19
Ø22 24.0±0.5 0.40±0.10 ≤11.00 0.83±0.15 100 11.4~21
Ø25 26.0±0.5 0.45±0.10 ≤12.50 0.90±0.15 50 12.8~24
Ø28 29.0±0.5 0.45±0.10 ≤14.00 0.90±0.15 50 14.4~29
Ø30 31.5±1.0 0.45±0.12 ≤15.00 1.00±0.15 50 16~29
Ø35 36.5±1.0 0.45±0.12 ≤17.50 1.00±0.15 50 18~34
Ø40 41.5±1.0 0.50±0.12 ≤20.00 1.00±0.15 50 21~39
