Single Wall Heat Shrink Tubing

Model: RSFR-H

Universal heat shrinkable tubing with excellent physical and mechanical properties

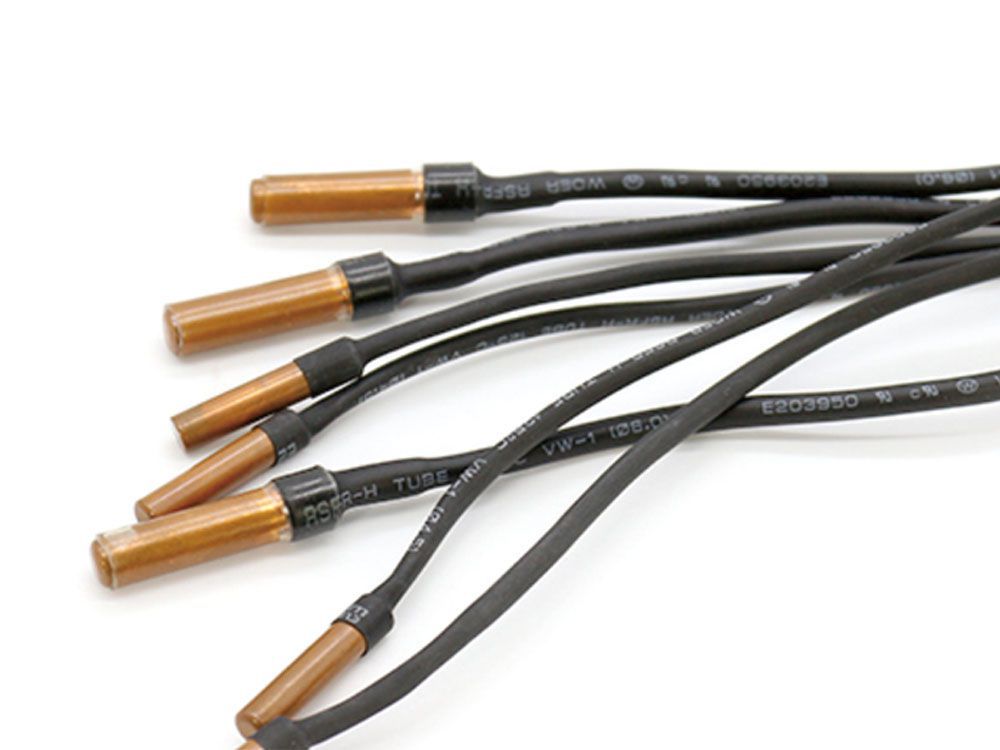

RSFR-H single wall heat shrink tubing is flexible flame-retardant heat shrinkable tubing used for electrical insulation, wire bundling and moisture resistance. It offers excellent physical and mechanical properties.

Features
  • Shrink ratio: 2:1
  • Flexible
  • Flame retardant
  • Continuous operating temperature: -55℃~125℃
  • Fully shrink temperature: ≥125℃
  • RoHS compliant
Typical Applications
  • Electrical insulation
  • Strain relief for connectors and splices
  • Protection against mechanical damage and abrasion
  • Moisture and corrosion resistance
  • Wire bundling
  • Wire harnessing
Technical Data
Property Test Method Typical Performance
Tensile strength (MPa) ASTM D 2671 ≥10.4
Ultimate elongation (%) ASTM D 2671 ≥200
Tensile strength after heat aging (MPa) 158℃×168h ≥7.3
Ultimate elongation after heat aging (%) 158℃×168h ≥100
Longitudinal change (%) ASTM D 2671 -5%～+5%
Flammability ASTM D 2671 C method VW-1
Voltage withstand UL 224, 2500V, 60s No breakdown
Dielectric strength (kV/mm) ASTM D 149 ≥15
Volume resistivity (Ω.cm) ASTM D 876 ≥1014
