Tie-on Cable Label

Model: PUR

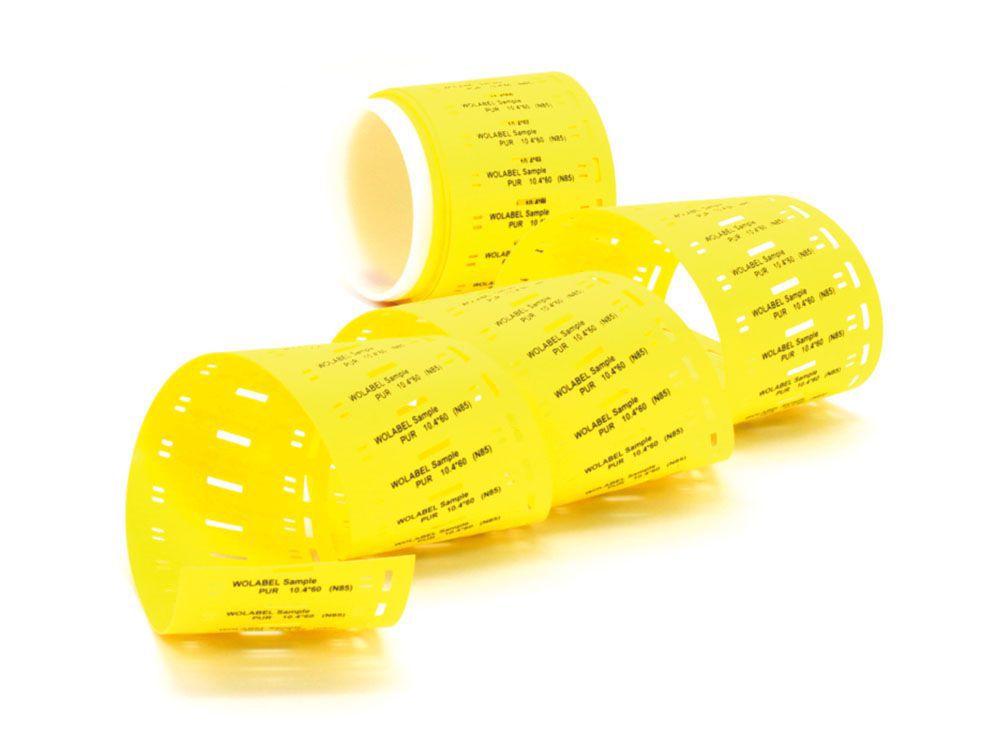

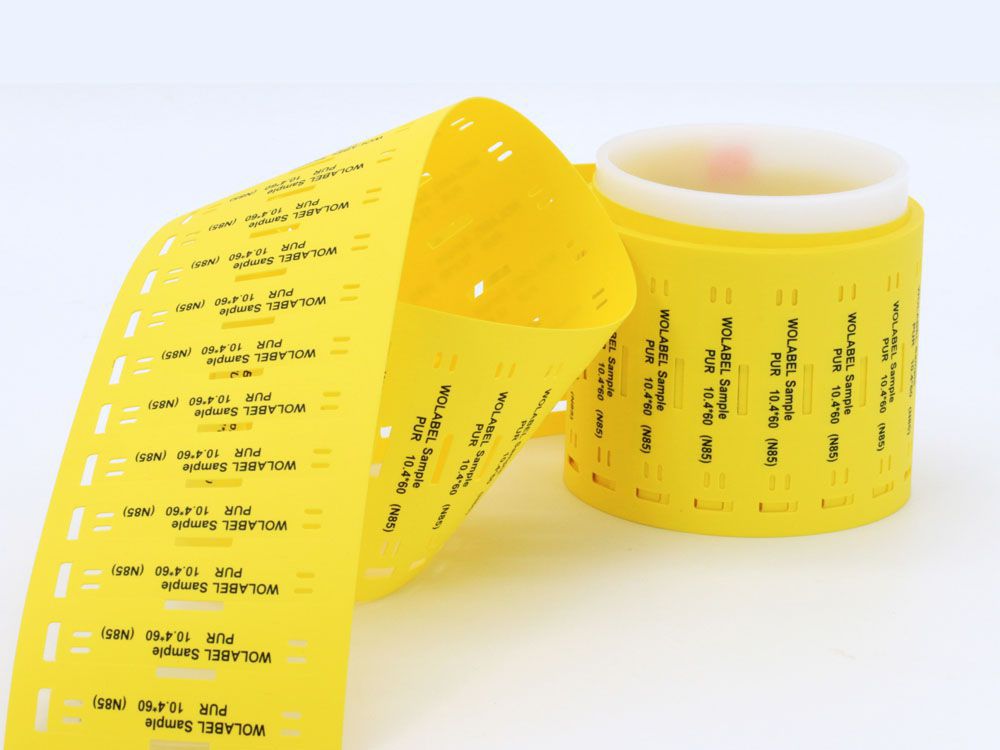

This tie-on cable label is a kind of cable identification markers made from thermoplastic polyether polyurethane (PUR), used to identify cables and wire bundles. The tie-on cable label is halogen free, flame retardant, hydrolysis and micro-organism resistant. Our tie-on cable labels adopt raw materials in full compliance with the requirements of UL94-V0, and are provided in form of rolls, facilitating for printing process with thermal transfer printer.

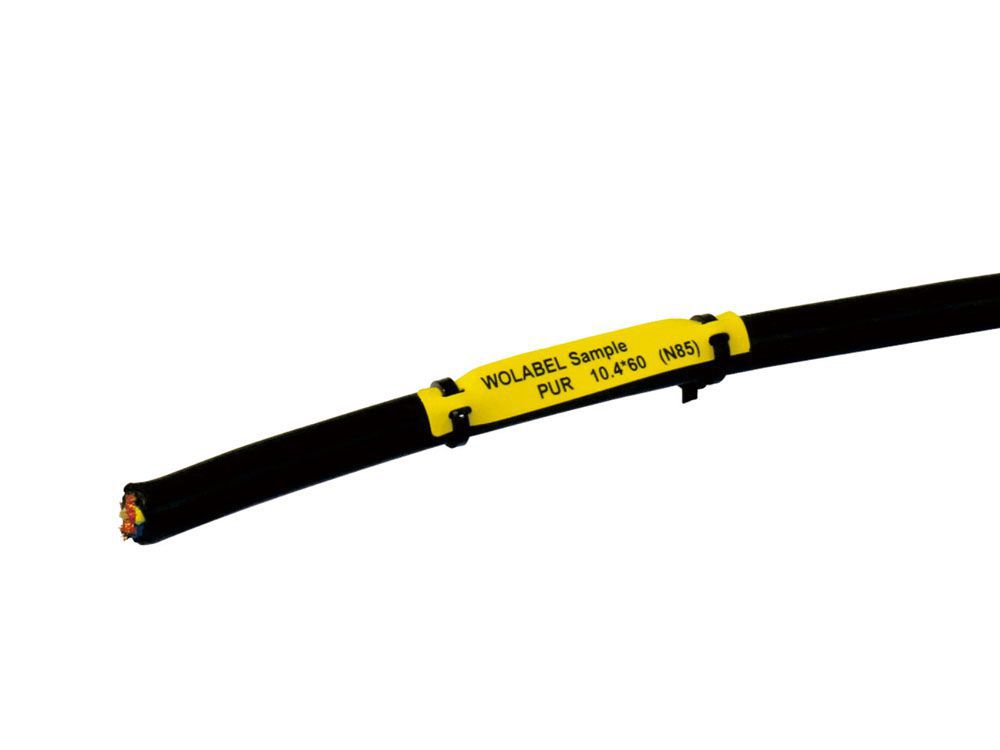

The cable labels can be simply attached to cables and wire bundles by means of cable ties after being removed from the carrier. It is recommended to use thermal transfer printer and WO-80500BK thermal transfer ribbon to satisfy the SAE AS 81531 and MIL-STD-202F printing standards.

Features
  • Color: yellow, white
  • Material: thermoplastic polyether polyurethane (PUR)
  • Operating temperature: -25°C up to +80°C
  • Storage: cool and dry in original packaging
Dimensions
Order Code Color Pack Size (pcs/coil) Marker High (mm) Marker Length (mm) Printable Range (mm)
High Length
PUR-M-4H-10-60-1K-W White 1000 10 60 6 42
PUR-M-4H-15-75-1K-W White 1000 15 75 11 52
PUR-M-4H-25-75-0.5K-W White 500 25 75 21 52
PUR-M-4H-10-60-1K-Y Yellow 1000 10 60 6 42
PUR-M-4H-15-75-1K-Y Yellow 1000 15 75 11 52
PUR-M-4H-25-75-0.5K-Y Yellow 500 25 75 21 52
Technical Data
Properties Test Method Typical Value
Hardness DIN 53505 58 Shore D
Density DIN 53475 1.27g/cm3
Tensile strength DIN 53504 30MPa
Ultimate elongation DIN 53504 400%
Stress at 20% elongation DIN 53504 13MPa
Stress at 100% elongation DIN 53504 19MPa
Stress at 300% elongation DIN 53504 33MPa
Tear strength DIN 53515 110N/mm
Abrasion loss DIN 53516 30mm3
Compression set at room DIN EN ISO 815 30%
Temperature
Compression set at 70°C DIN EN ISO 815 45%
Notched impact strength (Charpy) +23°C DIN EN ISO 179 50kj/m2
