Halogen-free HDPE Heat Shrinkable Tubing
Medical grade heat shrink tubing
Model: RSFR-MT-105H

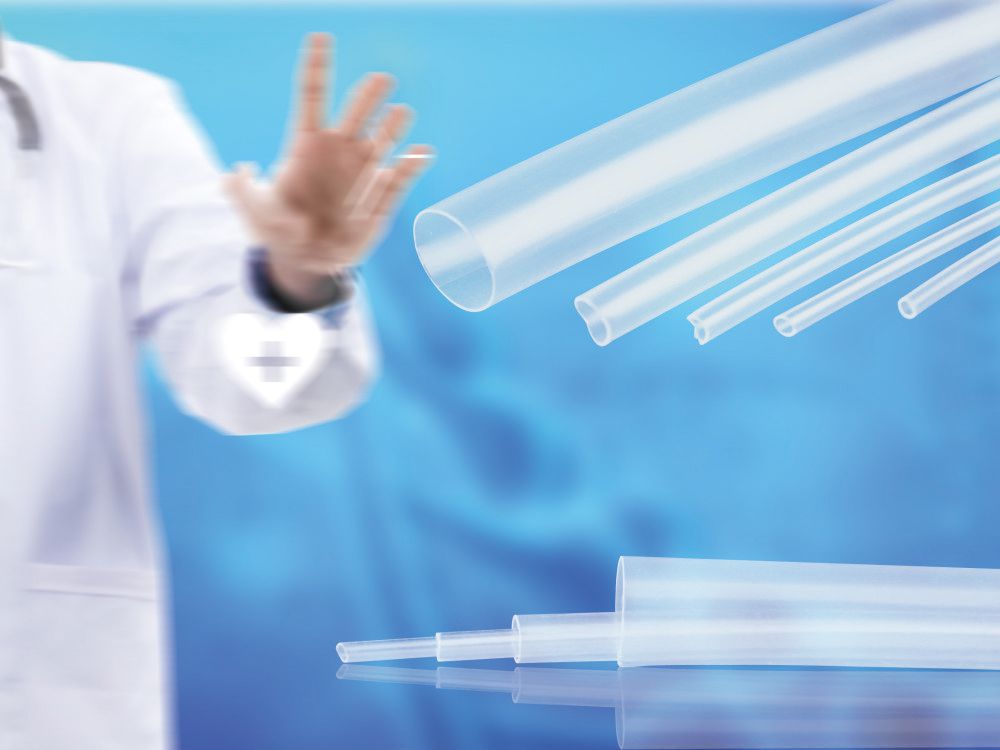

RSFR-MT-90H-FZR-X is halogen-free medical grade heat shrinkable tubing made from cross-linked high-density polyethylene (HDPE), featuring excellent abrasion resistance and good insulation properties. The consistency and high performance of the medical grade heat shrink tubing are a result of the homogeneous structure, enabling the product essentially free from defects, pinholes, seams, cracks or flaws.
Our halogen-free HDPE heat shrinkable tubing is semi-rigid and mechanically tough, making it perfect for use in electrosurgical units.
Features
- Shrink rate: 2.5:1
- Operating temperature: -40°C ~105°C
- Initial shrink temperature: 100℃~150℃
- Superior electrical insulation
- Compliant with ISO 10993-1
- Environmental standard: RoHS
- Standard color: transparent, black (other colors can be customized)
Properties
| Performance | Test Standard | Standard Performance |
| Longitudinal change rate (%) | ASTM D 2671 | -10~+5 |
| Tensile strength (MPa) | ASTM D 2671 | ≥10.4 |
| Elongation at break (%) | ASTM D 2671 | ≥200 |
| cold bending (-30℃, 1h) | ASM-DTL-23053 | No cracks |
| Withstand voltage | UL224 | 4000V,1min, no breakdown |
| Volume resistivity (Ω.cm) | IEC 60093 | ≥1015 |
| Part No. | As Supplied I.D (mm) | Recovered Size | |
| Inside Diameter, Max (d) | Wall Thickness (W) | ||
| (mm) | (mm) | ||
| RSFR-MT-105H-1.0-* | 1.00 | 0.45 | 0.25±0.05 |
| RSFR-MT-105H-2.0-* | 2.00 | 0.80 | 0.25±0.05 |
| RSFR-MT-105H-3.0-* | 3.00 | 1.20 | 0.25±0.05 |
| RSFR-MT-105H-4.5-* | 4.50 | 2.00 | 0.25±0.05 |
| RSFR-MT-105H-6.0-* | 6.00 | 2.40 | 0.25±0.05 |
| RSFR-MT-105H-10.0-* | 10.00 | 4.00 | 0.36±0.05 |
If you have questions about our products or want to request a quotation, please feel free to contact us at any time.
