Halogen-free Heat Shrink Marker Sleeve

Model: RSFR

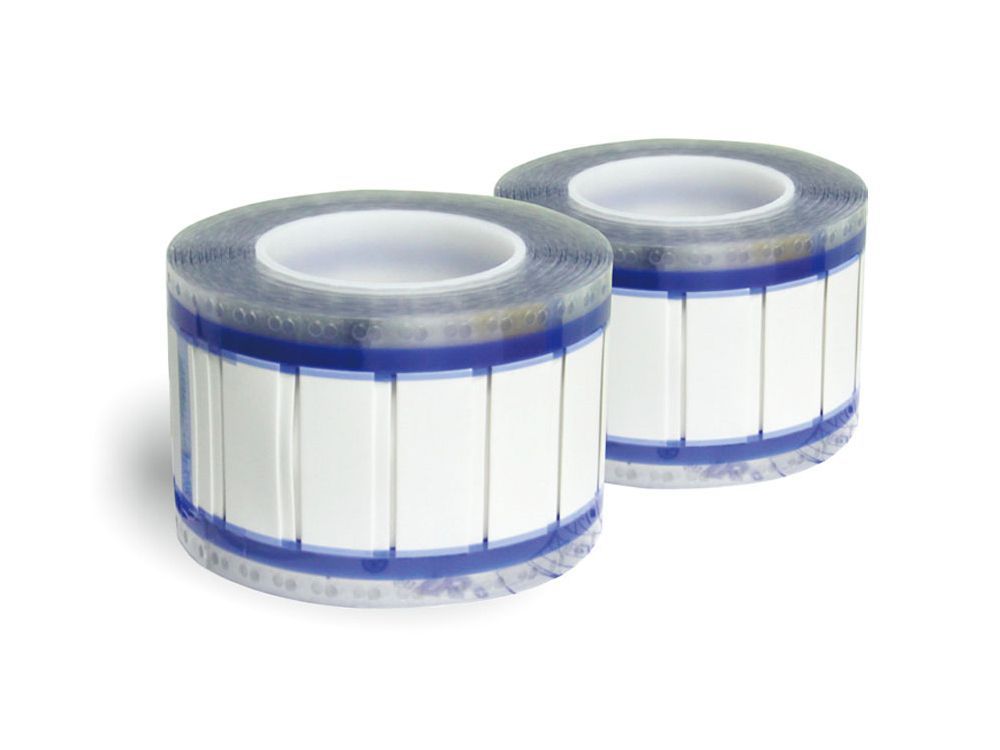

RSFR-M halogen-free heat shrink marker sleeve is a flattened heat-shrinkable tubing designed for wiring harness identification. This heat shrink marker sleeve is ideal for applications where limited fire hazard characteristics are necessary. The RSFR-M halogen-free heat shrink marker sleeve is printable using thermal transfer printer, and the identification marks are durable and can remain legible even when exposed to abrasion, aggressive cleaning solvents and industrial fluids.

Standard

SAE-AS 81531, MIL-STD-202F/Method 215J, UL224, RoHS etc.

Features
  • Material: fabricated from irradiated, thermally stabilized, flame retarded, modified polyolefin compound without halogens or cadmium in formulation
  • Application: commercial, industrial, etc.
  • Operating temperature range: -40℃～+125℃
  • Minimum recovery temperature: +85℃
  • Maximum storage temperature: +50℃
  • Shrink ratio: 2:1, 3:1
  • Color: white, yellow, other colors are available upon request
  • Printing: single sided printing or double sided printing
  • Supplied format: ladder-style or continuous sleeve
  • Recommended printer: thermal transfer printer
  • Recommended ribbon: N85 resin ribbon, black, 100mm(width)×300m(length)
Dimensions

Shrink ratio-2X

Order Code As Supplied (mm) As Supplied (mm)
ID (D) Flatten Width (W2) Double Wall Thickness ID (d) Single Wall Thickness
AMS-M-2X-1.6 2.00±0.20 3.7±0.3 0.48±0.10 ≤0.79 0.45±0.06
AMS-M-2X-2.4 2.79±0.20 5.0±0.3 0.48±0.10 ≤1.18 0.49±0.06
AMS-M-2X-3.2 3.64±0.23 6.3±0.4 0.48±0.10 ≤1.59 0.51±0.06
AMS-M-2X-4.8 5.26±0.25 8.9±0.4 0.49±0.10 ≤2.36 0.54±0.06
AMS-M-2X-6.4 6.92±0.28 11.5±0.4 0.50±0.10 ≤3.18 0.56±0.06
AMS-M-2X-9.5 10.2±0.32 16.7±0.5 0.51±0.11 ≤4.75 0.59±0.06
AMS-M-2X-12.7 13.5±0.36 21.8±0.6 0.52±0.11 ≤6.35 0.60±0.07
AMS-M-2X-19- 20.1±0.40 32.2±0.6 0.53±0.11 ≤9.53 0.62±0.07
AMS-M-2X-25- 26.7±0.45 42.5±0.7 0.55±0.12 ≤12.7 0.63±0.07
AMS-M-2X-38- 39.8±0.51 63.2±0.8 0.57±0.12 ≤19.1 0.64±0.07
AMS-M-2X-51- 53.0±0.56 83.9±0.9 0.58±0.13 ≤25.4 0.64±0.08
AMS-M-2X-76- 79.4±0.56 125.3±1.0 0.59±0.13 ≤38.1 0.64±0.09

Shrink ratio-3X

Order Code As Supplied (mm) As Supplied (mm)
ID (D) Flatten Width (W2) Double Wall Thickness ID (d) Single Wall Thickness
AMS-M-3X-1.6- 2.00±0.20 3.7±0.3 0.47±0.10 ≤0.53 0.52±0.06
AMS-M-3X-2.4- 2.79±0.20 5.0±0.3 0.47±0.10 ≤0.79 0.57±0.06
AMS-M-3X-3.2- 3.64±0.23 6.3±0.4 0.48±0.10 ≤1.06 0.61±0.06
AMS-M-3X-4.8- 5.26±0.25 8.9±0.4 0.49±0.10 ≤1.59 0.67±0.06
AMS-M-3X-6.4- 6.92±0.28 11.5±0.4 0.50±0.10 ≤2.36 0.71±0.06
AMS-M-3X-9.5- 10.2±0.32 16.7±0.5 0.52±0.11 ≤3.18 0.77±0.06
AMS-M-3X-12.7 13.5±0.36 21.8±0.6 0.53±0.11 ≤4.75 0.80±0.07
AMS-M-3X-19- 20.1±0.40 32.2±0.6 0.55±0.11 ≤6.35 0.84±0.07
AMS-M-3X-25- 26.7±0.45 42.5±0.7 0.56±0.12 ≤8.47 0.86±0.07
AMS-M-3X-38- 39.8±0.51 63.2±0.8 0.57±0.12 ≤12.9 0.89±0.07
AMS-M-3X-51- 53.0±0.56 83.9±0.9 0.57±0.1 ≤17.2 0.90±0.08
AMS-M-3X-76- 79.4±0.56 125.3±1.0 0.57±0.13 ≤25.8 0.92±0.09
