Special Purpose Heat Shrink Tubing
Model: RSFR-VT200

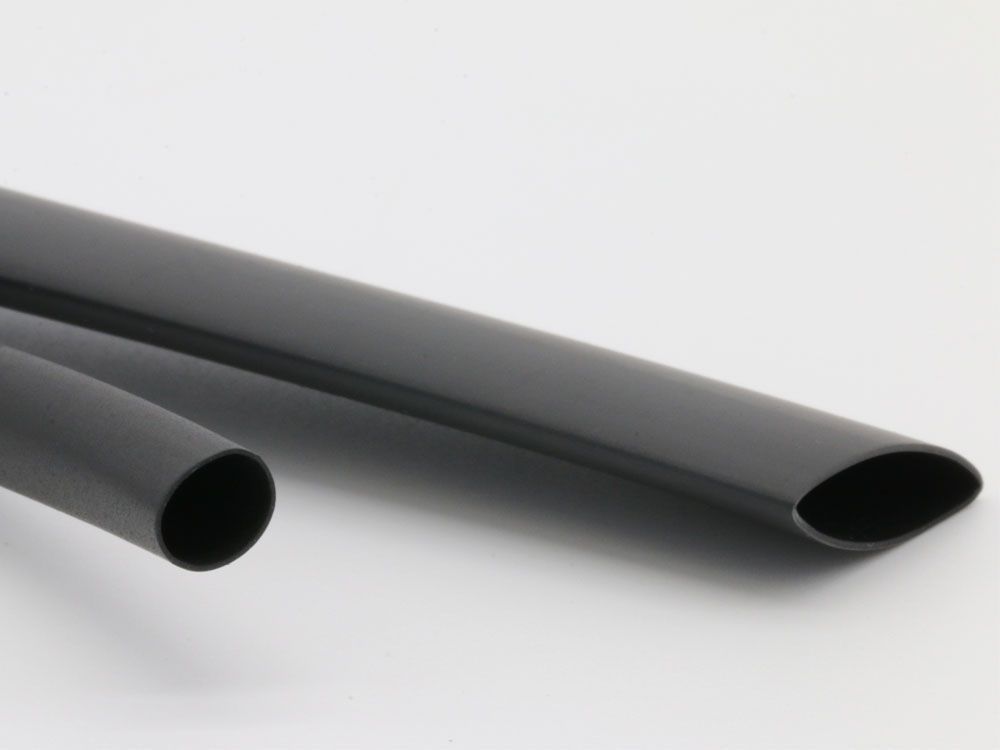

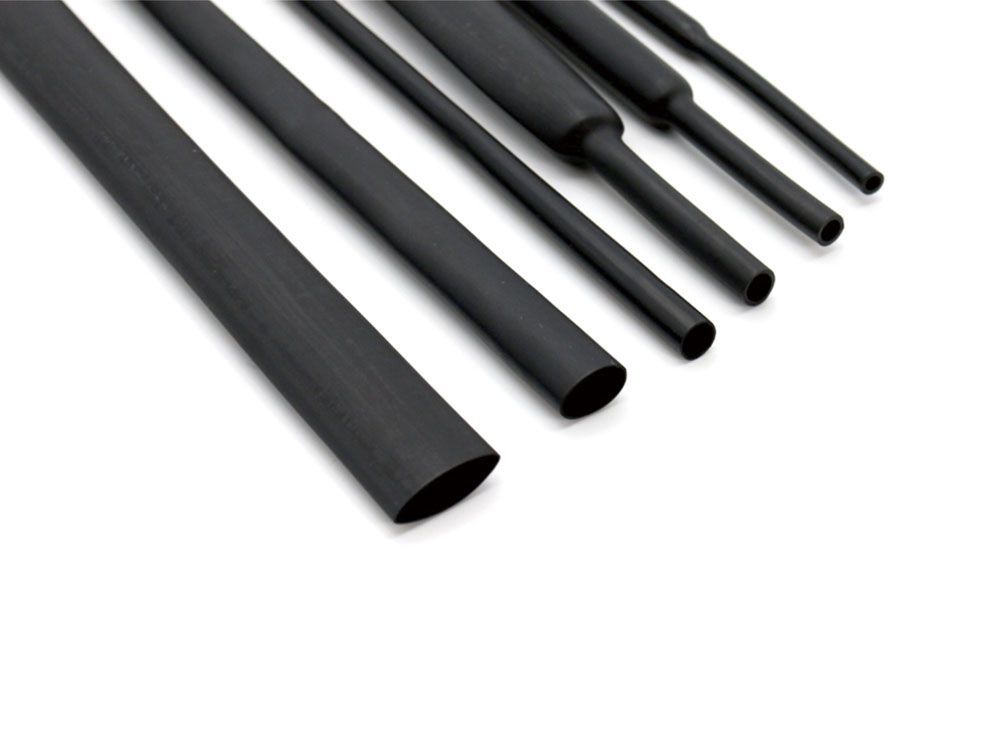

Thin wall fluoroelastomer heat shrinkable tubing
RSFR-VT200 thin-wall heat shrink tubing is made of fluoroelastomer (Viton), which provides premium protection against heat and fluids. This thin wall fluoroelastomer heat shrinkable tubing is suitable for the protection of cables and electronic components in automotive, military, aerospace and industrial applications requiring outstanding heat and fluid resistance.
Features
- 2:1 shrink ratio
- High resistance to corrosive fluids in extreme temperatures
- Flame retardant
- Very flexible
- Easy to stamped
- Continuous operating temperature: -55℃～200℃
- Fully shrink temperature: 175℃
- Meet 23053/ 13
| Size | Expanded | Recovered | Standard Package (m/spool) | Round/Flat | ||
| inch | mm | Internal Diameter (mm) | Internal Diameter (mm) | Wall Thickness (mm) | ||
| 3/32 | 2.4 | 2.4 | 1.2 | 0.70±0.20 | 200 | Round |
| 1/8 | 3.2 | 3.2 | 1.6 | 0.75±0.20 | 200 | Round |
| 3/16 | 4.8 | 4.8 | 2.4 | 0.89±0.20 | 100 | Round |
| 1/4 | 6.4 | 6.4 | 3.2 | 0.89±0.20 | 100 | Round |
| 3/8 | 9.5 | 9.5 | 4.8 | 0.89±0.20 | 50 | Flat |
| 1/2 | 12.7 | 12.7 | 6.4 | 0.89±0.20 | 25 | Flat |
| 3/4 | 19.1 | 19.1 | 9.5 | 1.07±0.30 | 25 | Flat |
| 1 | 25.4 | 25.4 | 12.7 | 1.25±0.30 | 25 | Flat |
| 1-1/2 | 38.1 | 38.1 | 19 | 1.40±0.30 | 25 | Flat |
| 2 | 50.8 | 51 | 25.4 | 1.65±0.30 | 15 | Flat |
| Property | Method Test | Standard | Typical Performance |
| Tensile strength (MPa) | ASTMD 2671 | ≥8.5 | 10 |
| Elongation (%) | ASTMD 2671 | ≥250 | 300 |
| Tensile strength after aging (MPa) | UL224 158℃×168hr | ≥7.3 | 8.5 |
| Elongation after aging (%) | UL224 158℃× 168hr | ≥200 | 250 |
| Dielectric strength (kV/mm) | IEC 60243 | ≥15 | 17.5 |
| Volume resistivity (Ω) | IEC 60093 | ≥1.0×109 | 2.5×109 |
| Flammability | UL224 VW-1 | Pass | Pass |
