Dual Wall Heat Shrink Tubing, SBRS-(4X)G
Dual Wall Heat Shrink Tubing, SBRS-(4X)G
Dual Wall Heat Shrink Tubing, SBRS-(4X)G Dual Wall Heat Shrink Tubing, SBRS-(4X)G Dual Wall Heat Shrink Tubing, SBRS-(4X)G
Request a Quote

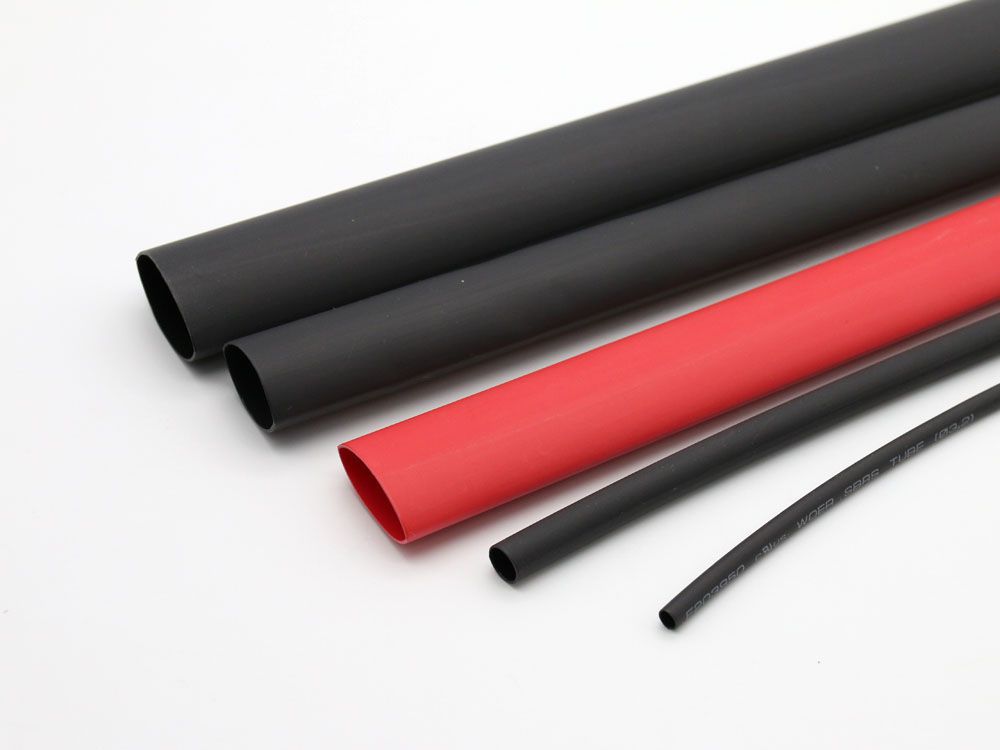

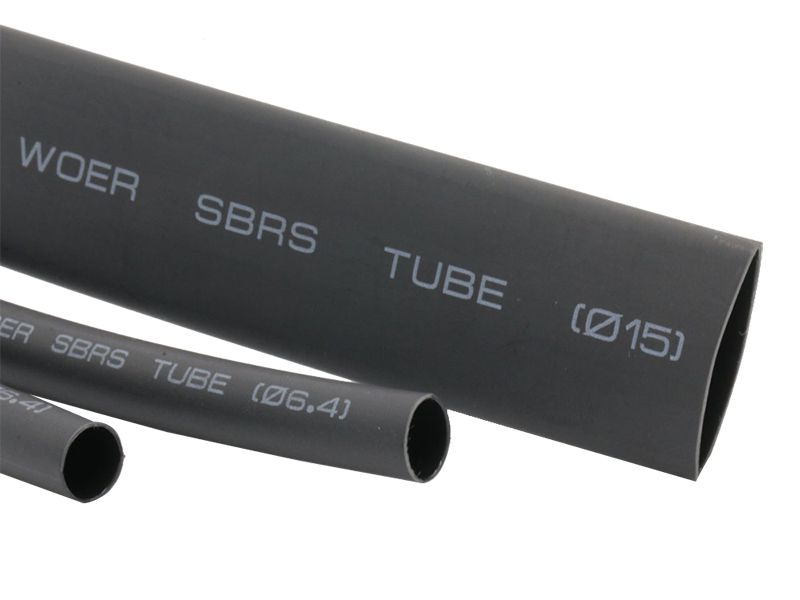

Dual Wall Heat Shrink Tubing

Model: SBRS-(4X)G

Adhesive-lined heat shrinkable polyolefin tubing

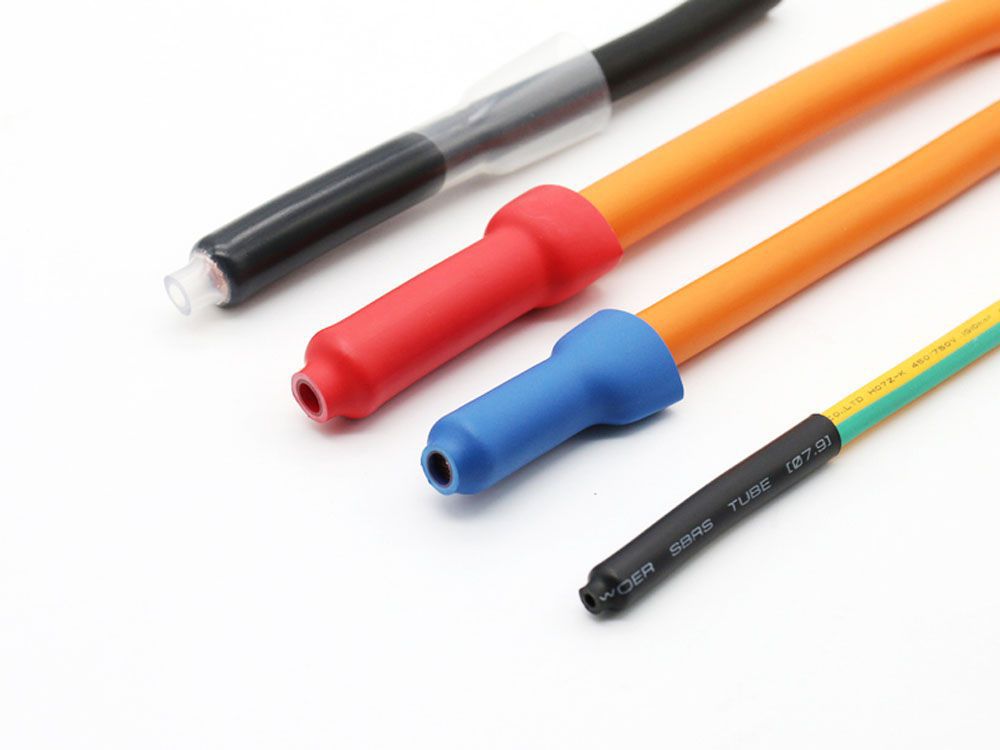

SBRS-(4X)G dual wall heat shrink tubing is adhesive-lined shrinkable polyolefin tubing with ability to provide corrosion protection and environmental sealing electrical insulation of wire splices, wire harness bundles, breakouts and connector-to-cable transitions in automotive and marine electrical applications.


Features
  • 4:1 shrink ratio
  • Low longitudinal shrinkage
  • Superior sealing against water, moisture or other contaminants
  • Ideal for sealing and covering of connectors with large diameter differences
  • Inner adhesive bonds to plastics, steel and polyethylene
  • Flame retardant (outer jacket only)
  • Continuous operating temperature: -45℃~125℃
  • Fully shrink temperature: ≥125℃
Technical Data
Property Test Method Standard Performance Typical Performance
Tensile strength (MPa) ASTM D 2671 ≥10.4 11.5
Elongation (%) ASTM D 2671 ≥200 450
Tensile strength after aging (MPa) UL224 158℃×168hr ≥7.3 8.5
Elongation after aging (%) UL224 158℃×168hr ≥100 350
Flammability ASTM D 2671 B Self-extinguish within 30s Self-extinguish within 30s
Dielectric strength (kV/mm) IEC 60243 ≥15 17.5
Volume resistivity (Ω.cm) IEC 60093 ≥1×1014 2.5×1014
Adhesive
Property Test Method Standard Performance
Water absorption ASTM D 570 <0.2%
Softening point(℃) ASTM E8 95
Peel strength (PE) ASTMD 1000 120N/25mm
Peel strength (AL) ASTMD 1000 80N/25mm
Dimensions
Size Expanded After Recovery Standard Package
inch mm Internal Diameter (mm) Internal Diameter (mm) Total Wall Thickness (mm) Adhesive Thickness (mm) Spool Length (m/spool)
5/32 4.0 4.0 1.0 1.00±0.15 0.40±0.15 200
1/4 6.0 6.0 1.5 1.10±0.15 0.40±0.15 100
5/16 8.0 8.0 2.0 1.50±0.15 0.50±0.15 50
1/2 12.0 12.0 3.0 1.70±0.15 0.50±0.15 1.22 or 25m/roll
5/8 16.0 16.0 4.0 2.00±0.15 0.60±0.15 1.22 or 25m/roll
25/32 20.0 20.0 5.0 2.30±0.25 0.60±0.15 1.22 or 25m/roll
1 24.0 24.0 6.0 2.60±0.25 0.60±0.15 1.22 or 25m/roll
1-1/4 32.0 32.0 8.0 3.00±0.30 0.70±0.15 1.22 or 25m/roll
1-1/2 40.0 40.0 10.0 3.00±0.30 0.70±0.15 1.22 or 25m/roll
2 52.0 52.0 13.0 3.30±0.30 0.70±0.15 1.22 or 25m/roll
