Single Wall Heat Shrink Tubing, RSFR-135G(2X)
Single Wall Heat Shrink Tubing, RSFR-135G(2X)
Single Wall Heat Shrink Tubing, RSFR-135G(2X) Single Wall Heat Shrink Tubing, RSFR-135G(2X) Single Wall Heat Shrink Tubing, RSFR-135G(2X)
Request a Quote

Single Wall Heat Shrink Tubing

Model: RSFR-135G(2X)

Flame retardant, multi-purpose heat shrinkable tubing

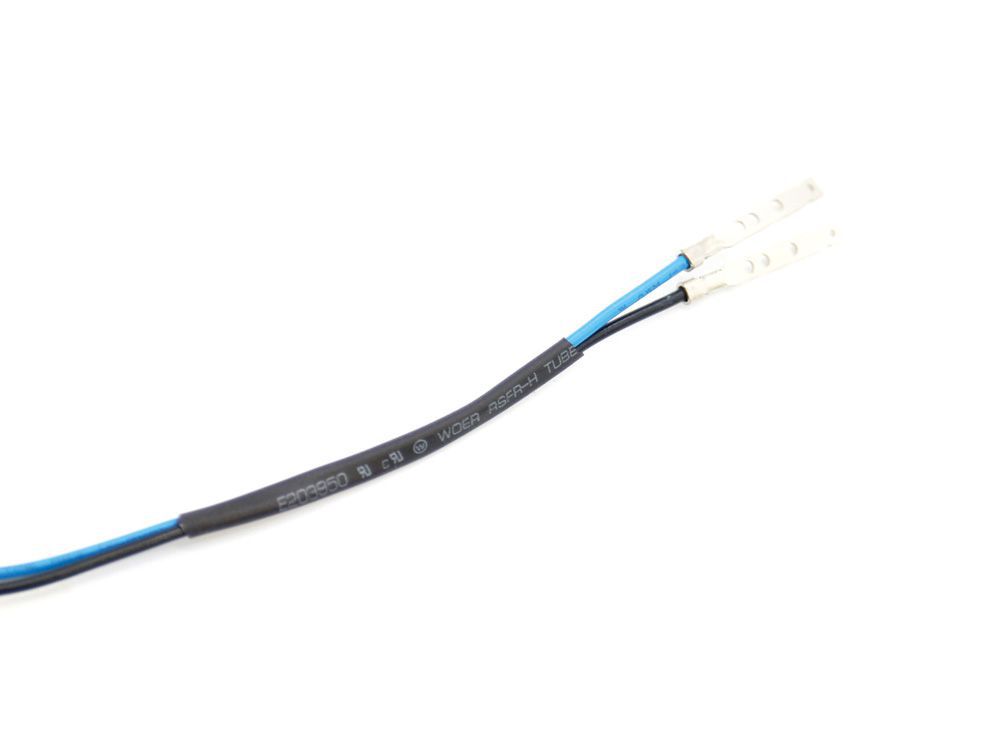

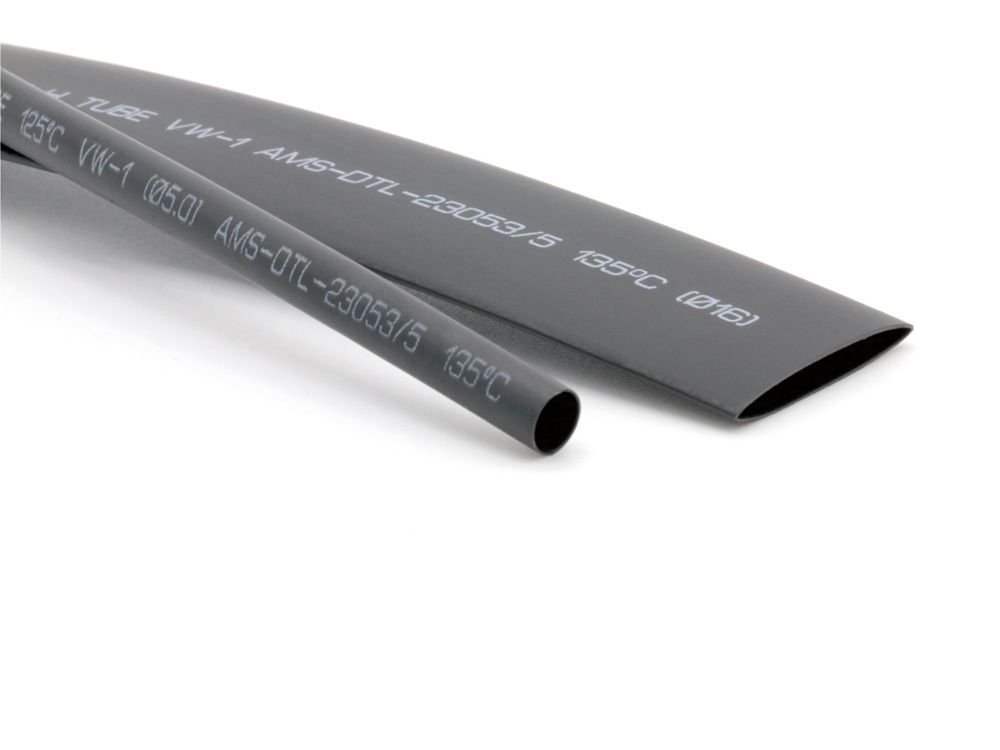

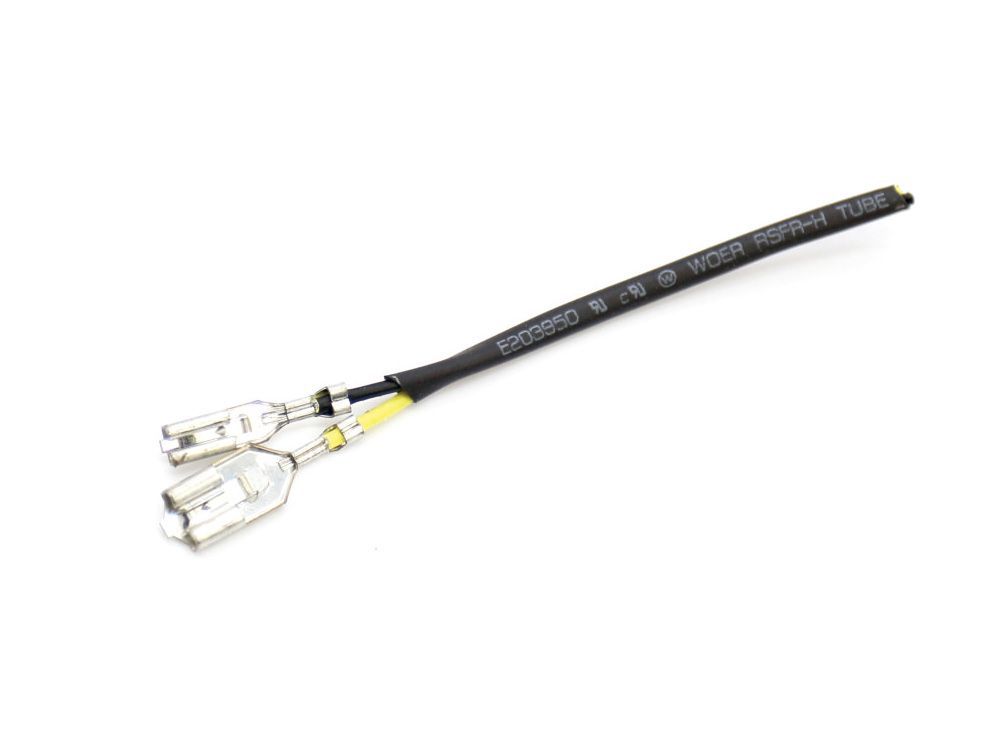

RSFR-135G(2X) single wall heat shrink tubing is flexible and flame-retardant heat shrinkable tube suitable for various industrial and military applications, it can electrically insulate and protect in-line components, wire splices and electrical connections.


Features
  • Shrink ratio: 2:1
  • Flexible
  • Suitable for various applications
  • Continuous Operating Temperature: -55℃ to 135℃
  • Fully shrink temperature: 120℃
  • RoHS compliant
  • Meet SAE-AMS-DTL-23053/5, Class 1 and 3
Typical Applications
  • Electrical insulation
  • Strain relief for connectors and splices
  • Protection against mechanical damage and abrasion
  • Moisture and corrosion resistance
  • Wire bundling
  • Wire harnessing
Technical Data
Property Test Method Typical Performance
Tensile strength (MPa) ASTM D 2671 ≥10.4
Ultimate elongation (%) ASTM D 2671 ≥200
Tensile strength after heat aging (MPa) 175℃×168h ≥7.3
Ultimate elongation after heat aging (%) 175℃×168h ≥100
Longitudinal change (%) ASTM D 2671 -5%~+5%
Flammability ASTM D 2671C method VW-1
Voltage withstand UL 224, 2500V, 60s No breakdown
Heat shock UL 224,250℃×4h No cracks, flowing or dripping
Dielectric strength (kV/mm) ASTM D 149 ≥15
Volume resistivity (Ω.cm) ASTM D 876 ≥1014
Size As Supplied After Recovery Standard Package
inch mm Internal Diameter (mm) Internal Diameter, Max (mm) Wall Thickness, Nom (mm) Spool Length (m/spool)
3/64 0.8 1.30±0.10 ≤0.58 0.41±0.07 305
1/16 1.2 1.70±0.10 ≤0.79 0.43±0.07 305
3/32 2.0 2.50±0.10 ≤1.17 0.51±0.07 305
1/8 3.0 3.50±0.10 ≤1.58 0.51±0.07 305
3/16 4.5 5.00±0.10 ≤2.36 0.51±0.07 152.5
1/4 6.0 6.60±0.10 ≤3.18 0.64±0.07 152.5
3/8 9.0 9.65±0.10 ≤4.75 0.64±0.07 76.25
1/2 12.0 13.00±0.20 ≤6.35 0.64±0.07 76.25
3/4 18.0 19.50±0.30 ≤9.53 0.76±0.07 76.25
1 25.0 26.00±0.30 ≤12.7 0.89±0.07 100
5/4 30.0 31.00±0.50 ≤15.0 0.89±0.07 61
3/2 38 .0 39.00±0.50 ≤19.1 1.00±0.07 50
2 50.0 52.50±1.50 ≤25.4 1.15±0.07 50
3 75.0 79.00±2.0 ≤38.1 1.27±0.07 50
4 100.0 104.0±2.0 ≤50.8 1.40±0.07 50
