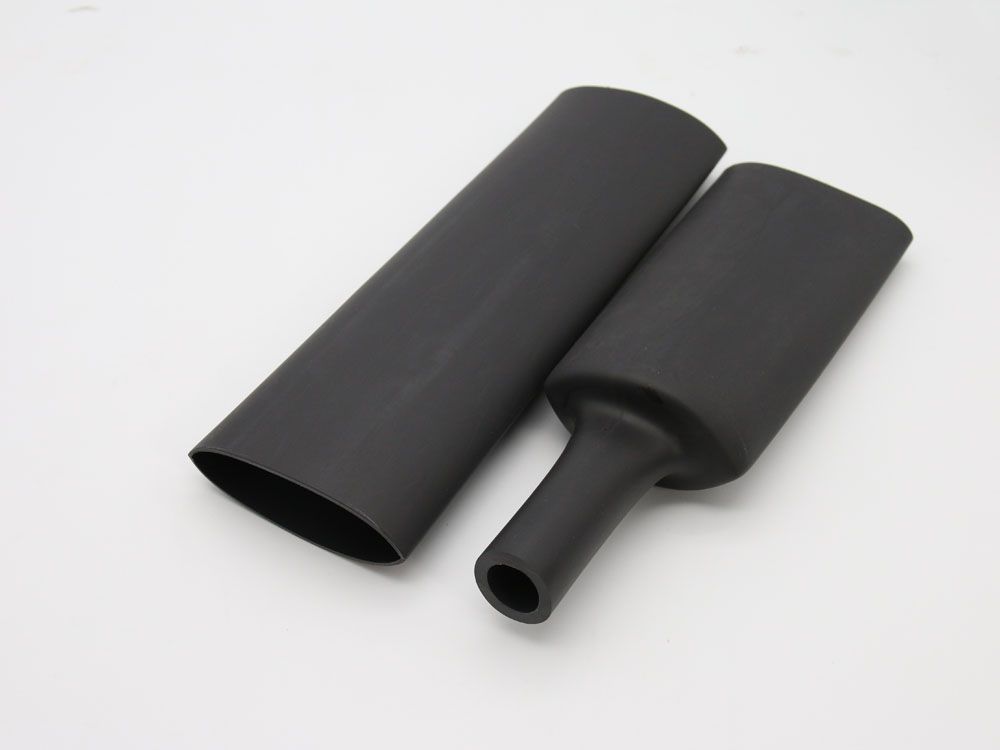

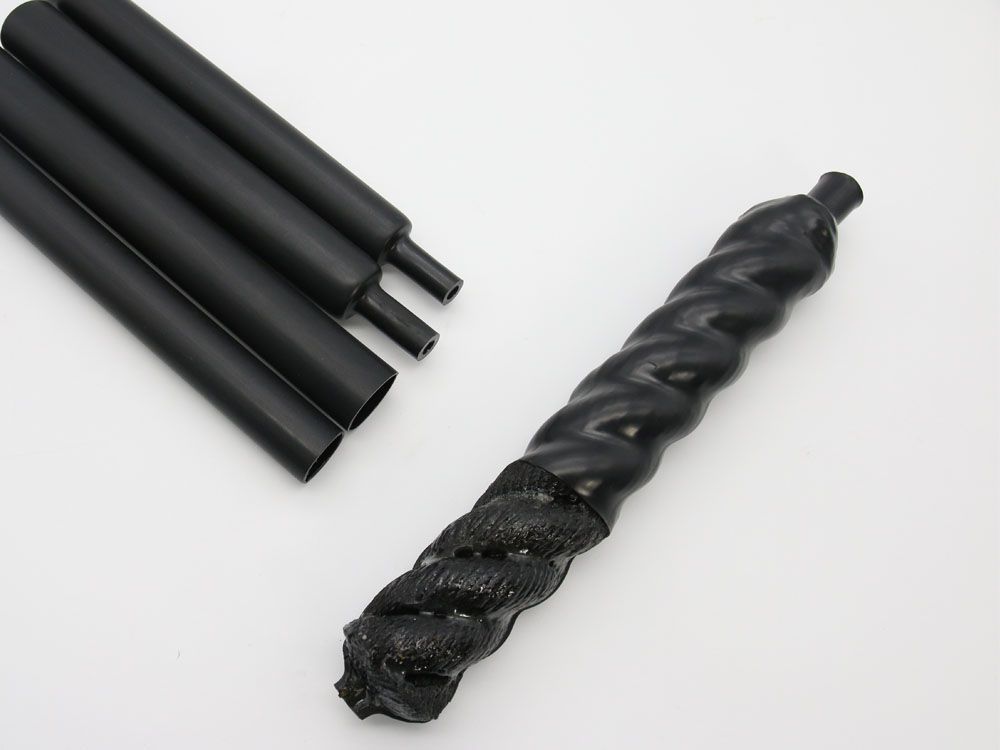

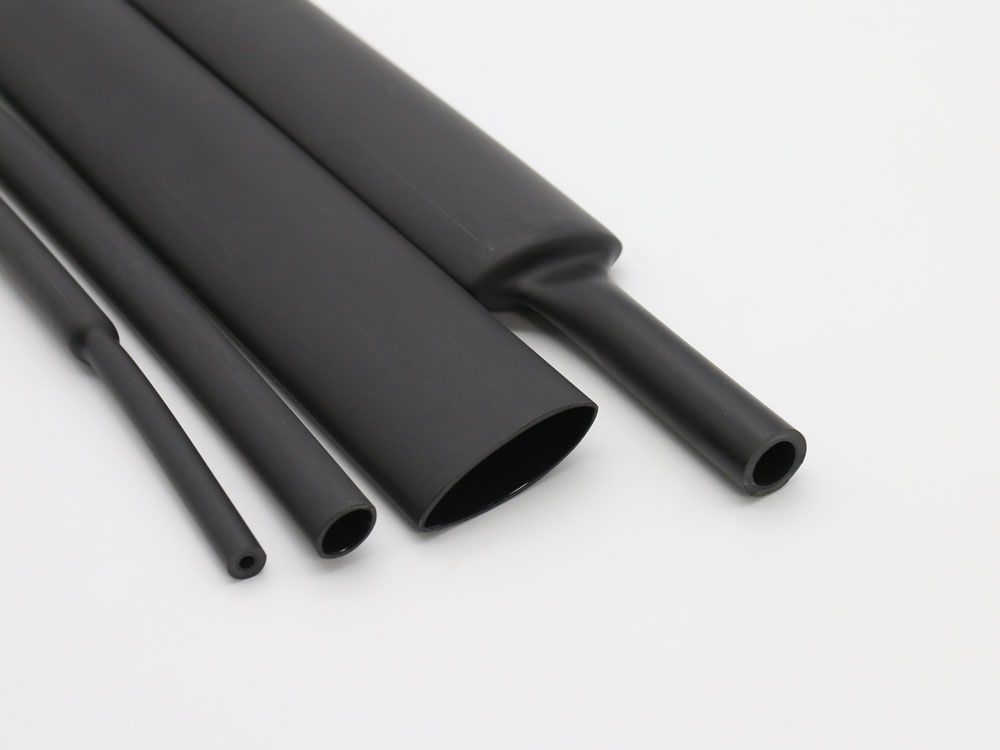

Heavy Wall Heat Shrink Tubing
Model: SBRSW
Flame retardant, adhesive-lined cross-linked polyolefin heat shrinkable tubing
SBRSW heavy wall heat shrink tubing is flame-retardant adhesive-lined heat shrink tubing made from cross-linked polyolefin. This heat shrink tubing is ideal for insulation and protection of electrical splices and terminations where maximum flame retardancy and exceptional environmental sealing capabilities are required.
Features
- 3:1 shrink ratio
- Flame retardant
- SBRSW heavy wall heat shrink tubing will not split or rupture during installation, when overheated
- Thermoplastic adhesive liner for complete environmental protection and insulation
- Continuous operating temperature: -45℃～125℃
- Fully shrink temperature: 125℃
| Size (mm) | Expanded | After Recovery | Standard Package (m/pc) | |||
| Internal Diameter (mm) | Internal Diameter (mm) | Jacket Thickness (mm) | Adhesive Thickness (mm) | Total Wall Thickness (mm) | ||
| 9.0/3.0 | 9.0 | 3.0 | 2.00±0.35 | 0.45±0.20 | 2.45±0.35 | 1.22 |
| 13.0/4.0 | 13.0 | 4.0 | 2.30±0.35 | 0.45±0.20 | 2.80±0.35 | 1.22 |
| 20.0/6.0 | 20.0 | 6.0 | 2.30±0.35 | 0.60±0.20 | 2.90±0.35 | 1.22 |
| 28.0/9.0 | 28.0 | 9.0 | 2.30±0.35 | 0.70±0.20 | 3.00±0.40 | 1.22 |
| 33.0/10.2 | 33.0 | 10.2 | 2.80±0.35 | 0.70±0.20 | 3.60±0.40 | 1.22 |
| 38.1/12.0 | 38.1 | 12.0 | 3.10±0.35 | 0.70±0.20 | 3.85±0.50 | 1.22 |
| 43.2/12.7 | 43.2 | 12.0 | 3.50±0.35 | 0.70±0.20 | 4.20±0.50 | 1.22 |
| 51.0/16.0 | 55.0 | 16.0 | 3.85±0.40 | 0.70±0.20 | 4.50±0.50 | 1.22 |
| 70.0/21.0 | 75.0 | 22.0 | 3.65±0.40 | 0.70±0.20 | 4.40±0.50 | 1.22 |
| 85.0/25.0 | 85.0 | 25.0 | 3.65±0.40 | 0.70±0.20 | 4.40±0.50 | 1.22 |
| 105.0/30.0 | 105.0 | 30.0 | 3.85±0.40 | 0.70±0.20 | 4.50±0.50 | 1.22 |
| 120.0/36.0 | 120.0 | 36.0 | 3.85±0.40 | 0.70±0.20 | 4.50±0.50 | 1.22 |
| 130.0/36.0 | 130.0 | 36.0 | 3.85±0.40 | 0.70±0.20 | 4.50±0.50 | 1.22 |
| 140.0/42.0 | 140.0 | 42.0 | 3.85±0.40 | 0.70±0.20 | 4.50±0.50 | 1.22 |
| Property | Test Method | Standard Performance | Typical Performance |
| Tensile strength (MPa) | ASTM D2671 | ≥10.4 | 11.5 |
| Elongation (%) | ASTM D2671 | ≥300 | 450 |
| Tensile strength after aging (MPa) | UL224 158℃×168hr | ≥7.3 | 8.5 |
| Elongation after aging (%) | UL224 158℃×168hr | ≥200 | 350 |
| Dielectric strength (kV/mm) | IEC 60243 | ≥15 | 17.5 |
| Volume resistivity (Ω.cm) | IEC 60093 | ≥1×1014 | 2.5×1014 |
| Property | Test Method | Standard Performance |
| Water absorption | ASTM D570 | ＜0.2% |
| Softening point (℃) | ASTM E28 | 95±5 |
| Peel strength (PE) | ASTM D 1000 | 120N/25mm |
| Peel strength (AL) | ASTM D 1000 | 80N/25mm |
