Special Purpose Heat Shrink Tubing

Model: RSFR-VDF175

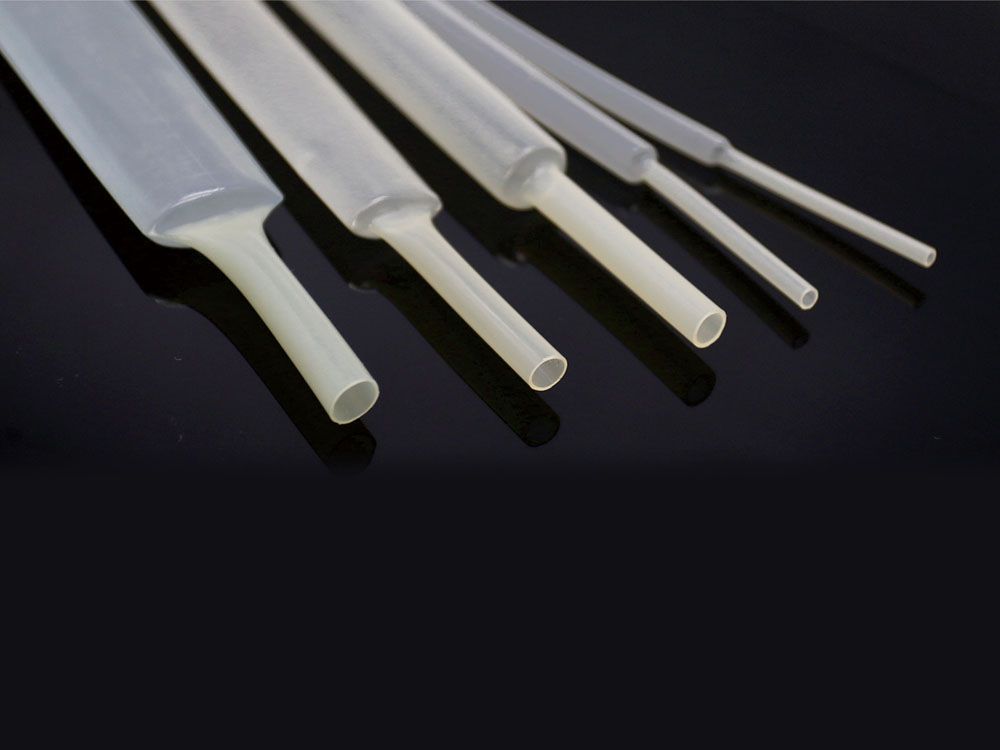

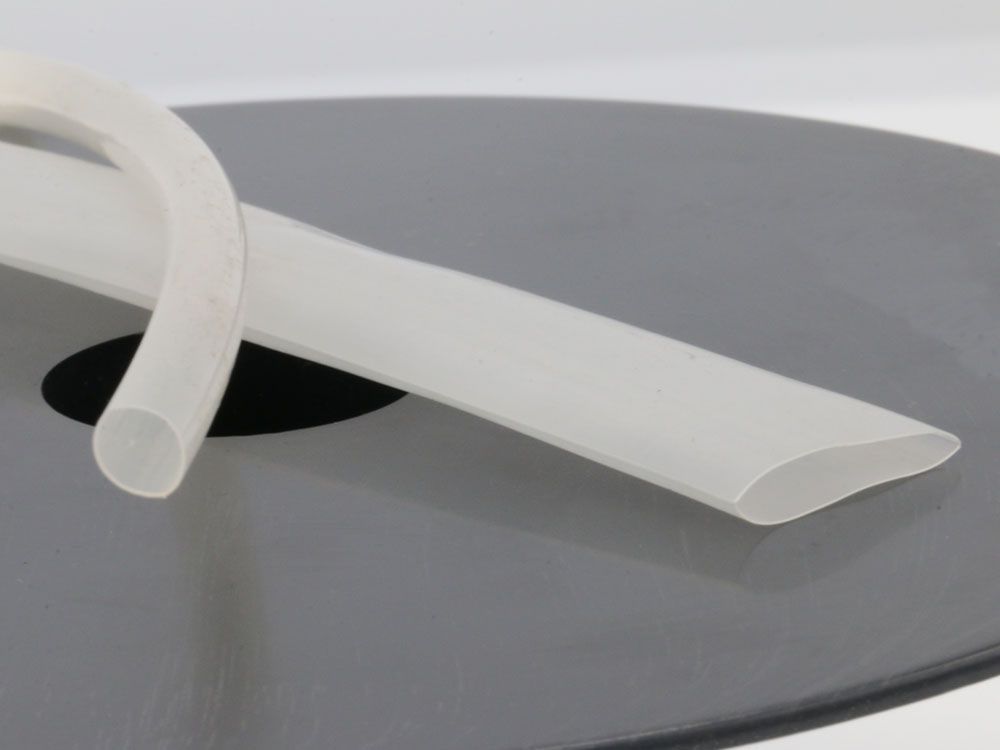

Thin wall PVDF heat shrinkable tubing

RSFR-VDF175 thin wall PVDF heat shrinkable tubing is semi-rigid transparent heat shrink tubing perfect for electronic, automotive, and military applications that need protection and see-through inspection in aggressive environments.

Features
  • 2:1 shrink ratio
  • Long term resistance to diesel, hydraulic fluids and chemicals
  • Semi-rigid
  • Flame retardant
  • High abrasion and cut resistance
  • Continuous operating temperature: -55℃～175℃
  • Fully shrink temperature: 175℃
  • Meet 23053/18
Dimensions
Size Expanded Recovered Standard Package (m/spool) Round/Flat
inch mm Internal Diameter (mm) Internal Diameter (mm) Wall Thickness (mm)
3/64 1.2 1.2 0.6 0.25±0.05 200 Round
1/16 1.6 1.6 0.8 0.25±0.05 200 Round
3/32 2.4 2.4 1.2 0.25±0.05 200 Round
1/8 3.2 3.2 1.6 0.25±0.05 200 Round
3/16 4.8 4.8 2.4 0.25±0.05 100 Round
1/4 6.4 6.4 3.2 0.30±0.05 100 Round
3/8 9.5 9.5 4.8 0.30±0.05 50 Round
1/2 12.7 12.7 6.4 0.30±0.05 50 Round
3/4 19.1 19.1 9.5 0.42±0.05 50 Round
1 25.4 25.4 12.7 0.50±0.05 50 Round
1-1/2 38.1 38.1 19.1 0.50±0.05 50 Round

Note: 3:1 shrink ratio is available upon request

Technical Data
Property Method Test Typical Performance
Tensile strength (MPa) ASTMD 2671 ≥30
Elongation (%) ASTMD 2671 ≥150
Tensile 250×168hr ≥100
Cold bend No cracking ≥220
Flammability ASTM D 2671 VW-1
Volume resistivity (Ω) IEC 60093 ≥1014
