Special Purpose Heat Shrink Tubing

Model: WEPDM

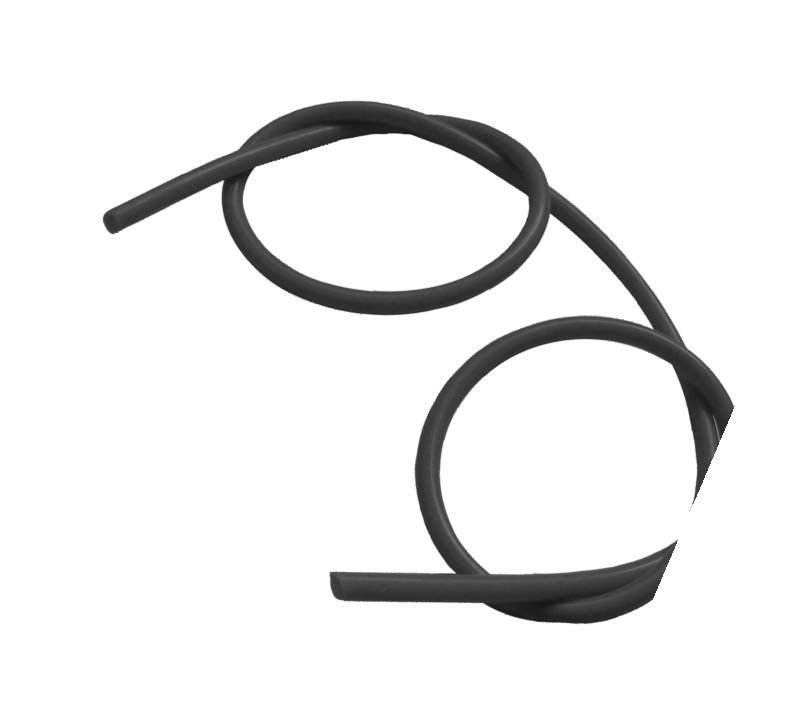

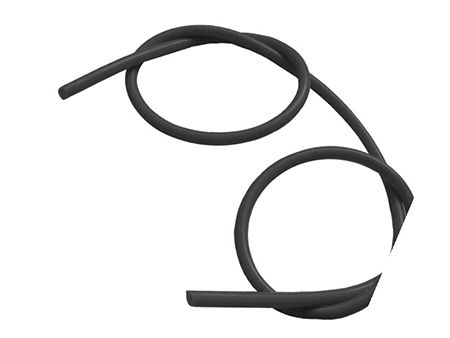

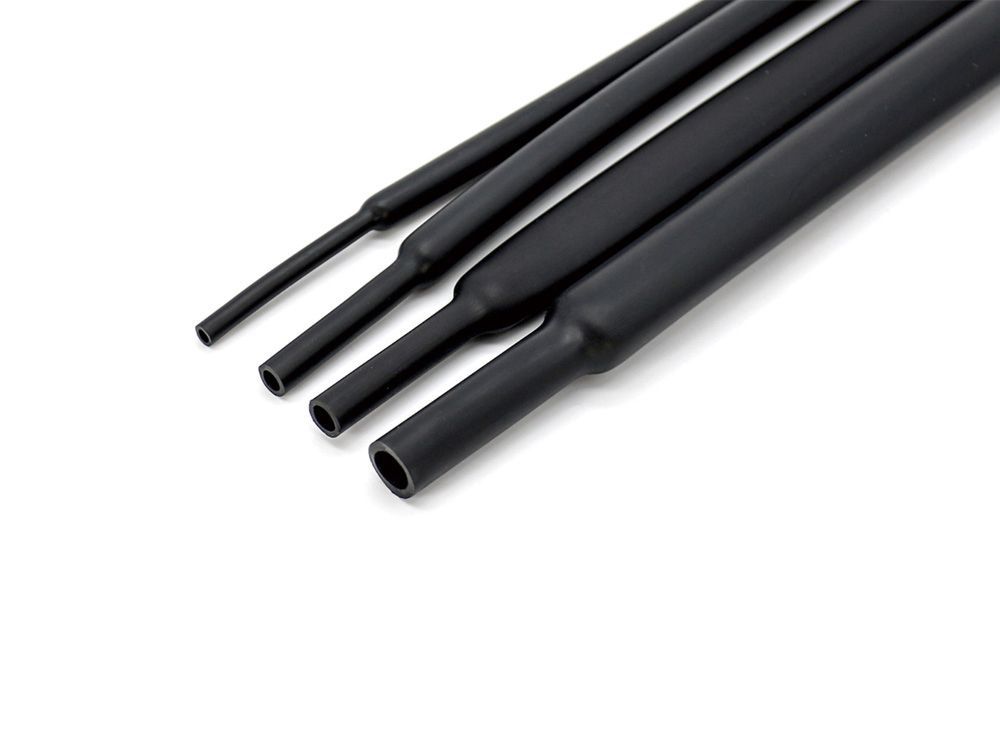

Flexible EPDM heat shrinkable tubing

WEPDM flexible EPDM heat shrinkable tubing is suitable for jacketing and protection of solder joints, wires, cables, terminals, connectors and various electronic apparatus.

Features
  • 2:1 shrink ratio
  • Environmental friendly
  • Outstanding low and high-temperature
  • Resistance to acids and alkalis
  • Resistance to chemical solvent
  • Resistance to ultraviolet light and weather aging
  • Resistance to ozone
  • Minimum shrink temperature:100℃
  • Minimum full recovery temperature: 135℃
  • Continuous operating temperature: -45℃～125℃
  • Standard color: black
Dimensions
Size (mm) Expanded After Recovery Standard Package (m/spool)
Internal Diameter, Min (mm) Internal Diameter, Max (mm) Adhesive Thickness (mm)
6 6.5 3 0.80±0.10 50
8 8.5 4 0.90±0.10 50
10 10 5 1.20±0.10 50
12 12 6 1.20±0.10 20
16 16 8 1.50±0.15 20
20 20 10 1.50±0.15 20
30 30 15 1.80±0.15 20
40 40 20 2.00±0.15 20
50 50 25 2.00±0.20 10
60 60 30 2.00±0.30 10
70 70 35 2.00±0.30 10
Technical Data
Property Test Method Typical Performance
Tensile strength (MPa) GB/T 528 ≥14
Elongation (%) GB/T 528 ≥400
Dielectric strength (kV/mm) ASTM D 149 ≥12
Volume resistivity (Ω.cm) ASTM D 257 ≥2×1013
