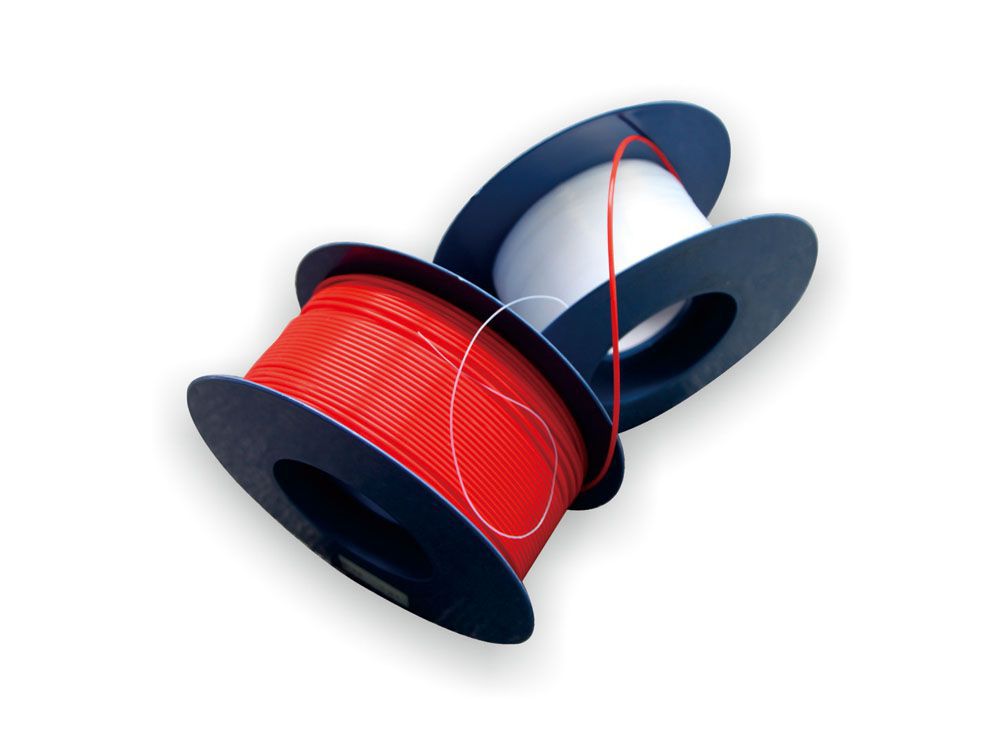

PTFE Teflon Tubing

Model: WF

Non-heat shrinkable tubing

WF PTFE Teflon tubing is a kind of non-heat shrinkable tubing specially designed for chemical and electrical product protection in automotive, chemical, electrical and medical applications with electrical chemical and thermal conditions.

Features
  • Chemical resistance
  • Corrosion resistance (acid, alkali, corrosive reagents)
  • High temperature resistance
  • High pressure resistance
  • Continuous operating temperature: -65℃~200℃
  • Standard: UL224 VW-1 C-UL CSA22.20FT
  • UL file number: E203950
Dimensions
Size AWG Expanded External Diameter Standard Package (m/spool)
Internal Diameter (mm) (S) (T) (L)
30 0.30±0.10 0.80±0.10 0.70±0.10 0.60±0.10 305
28 0.38±0.10 0.88±0.10 0.78±0.10 0.68±0.10 305
26 0.46±0.10 0.96±0.10 0.86±0.10 0.76±0.10 305
24 0.56±0.10 1.16±0.10 1.06±0.10 0.86±0.10 305
23 0.66±0.10 1.26±0.10 1.16±0.10 0.96±0.10 305
22 0.71±0.10 1.31±0.10 1.21±0.10 1.01±0.10 305
21 0.81±0.10 1.41±0.10 1.31±0.10 1.11±0.10 305
20 0.86±0.10 1.66±0.10 1.46±0.10 1.16±0.10 305
19 0.96±0.20 1.76±0.20 1.56±0.20 1.26±0.20 200
18 1.07±0.20 1.87±0.20 1.67±0.20 1.37±0.20 200
17 1.19±0.20 1.99±0.20 1.79±0.20 1.49±0.20 200
16 1.34±0.20 2.14±0.20 1.94±0.20 1.64±0.20 153
15 1.50±0.20 2.30±0.20 2.10±0.20 1.80±0.20 153
14 1.68±0.20 2.48±0.20 2.28±0.20 2.08±0.20 100
13 1.93±0.20 2.73±0.20 2.53±0.20 2.33±0.20 100
12 2.16±0.25 2.96±0.25 2.76±0.25 2.56±0.25 100
11 2.41±0.25 3.21±0.25 3.01±0.25 2.81±0.25 150
10 2.86±0.25 3.49±0.25 3.29±0.25 3.09±0.25 150
9 3.00±0.25 4.00±0.25 3.80±0.25 3.40±0.25 150
8 3.38±0.25 4.38±0.25 4.18±0.25 3.78±0.25 100
7 3.76±0.25 4.76±0.25 4.56±0.25 4.16±0.25 100
6 4.22±0.25 5.22±0.25 5.02±0.25 4.80±0.25 100
5 4.72±0.25 5.72±0.25 5.52±0.25 5.32±0.25 50
4 5.28±0.30 6.28±0.30 6.08±0.30 5.88±0.25 50
3 5.94±0.30 6.94±0.30 6.74±0.30 6.54±0.25 1.00
2 6.68±0.30 7.68±0.30 7.48±0.30 7.28±0.25 1.00
1 7.46±0.30 8.46±0.30 8.26±0.30 8.06±0.25 1.00
0 8.38±0.30 9.38±0.30 9.18±0.30 8.98±0.25 1.00
Technical Data
Property Method Test Standard Performance
Tensile strength (MPa) ASTMD 2671 ≥25
Elongation (%) ASTMD 2671 ≥300
Flammability VW-1 Pass
Dielectric strength (kV/mm) IEC 60243 ≥26
Volume resistivity (Ω.cm) IEC 60093 ≥1×1014
