Heat Shrink End Cap, SBRS-CAPS-RL
Heat Shrink End Cap, SBRS-CAPS-RL
Heat Shrink End Cap, SBRS-CAPS-RL Heat Shrink End Cap, SBRS-CAPS-RL Heat Shrink End Cap, SBRS-CAPS-RL
Request a Quote

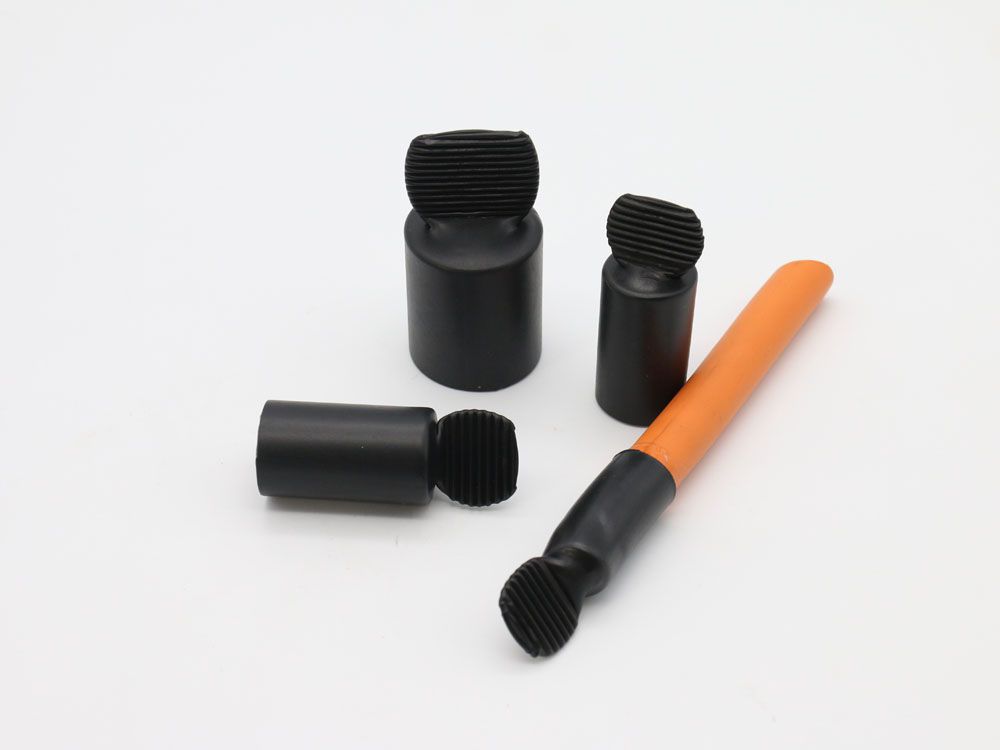

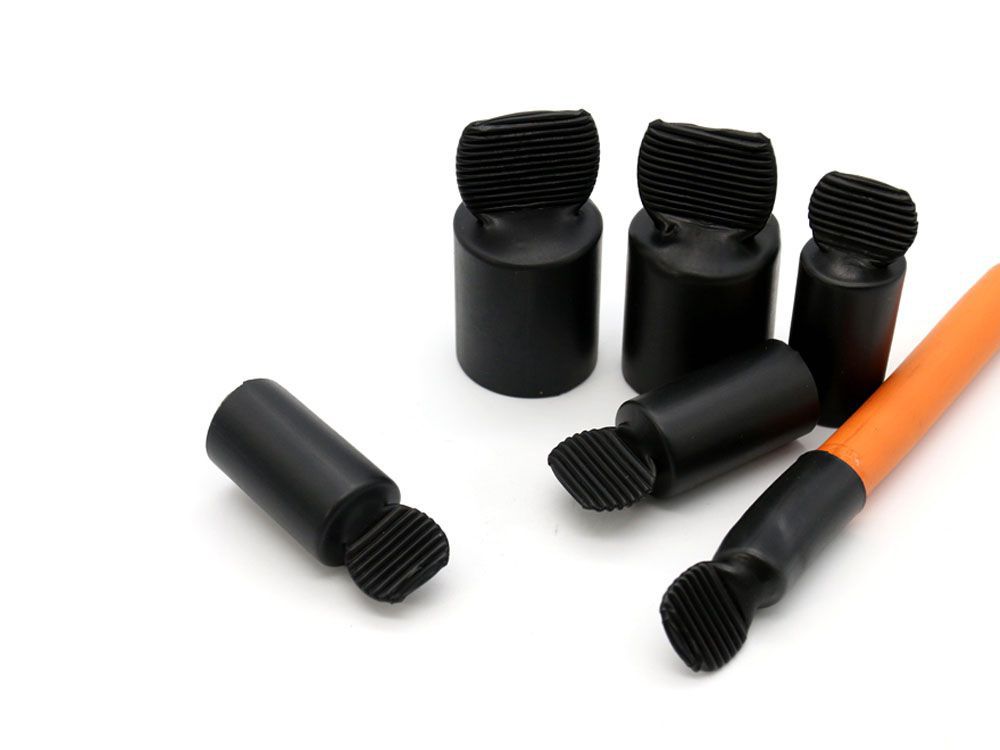

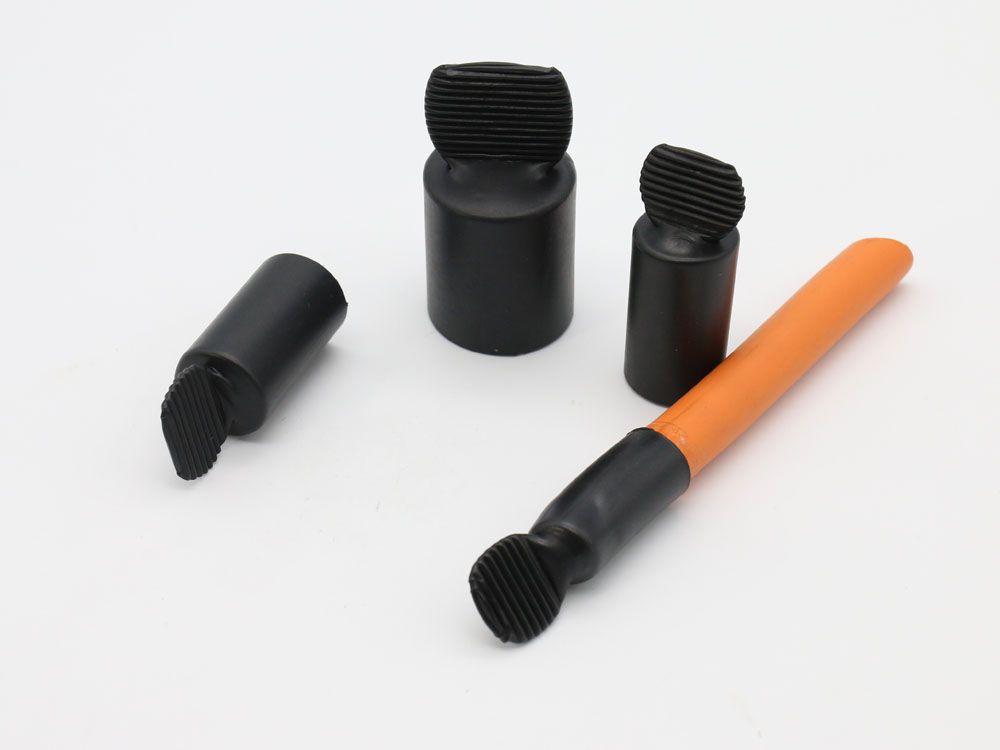

Heat Shrink End Cap

Model: SBRS-CAPS-RL

Semi-rigid, adhesive-lined heat shrinkable insulating end cap

SBRS-CAPS-RL heat shrink end cap is adhesive-lined heat shrinkable insulating end cap manufactured from semi-rigid cross-linked polyolefin. The heat shrink end caps are a simple effective method for sealing cable ends, pipes and conduits, and providing moisture and mechanical.


Features
  • 3:1 shrink ratio
  • Resistant to common fluids and solvents
  • Superior resistance to weathering, moisture contamination and adverse environmental conditions
  • Standard adhesive liner for complete environmental protection and insulation
  • Heat indicating lines
  • Resistant to common fluids and solvents
  • Coated hot melt adhesive for protection against pull-off
  • Fully shrink temperature: 125℃
  • Continuous operating temperature: -55℃~110℃
  • Standards rating: 600/1000V
Typical Applications

Watertight sealing of cable ends and pipe conduit

Technical Data
Property Test Method Standard Performance Typical Performance
Tensile strength (MPa) ASTM D 2671 ≥10.4 11.5
Elongation (%) ASTM D 2671 ≥300 450
Tensile strength after aging (MPa) UL224 158℃×168hr ≥7.3 8.5
Elongation after aging (%) UL224 158℃×168hr ≥200 350
Dielectric strength (kV/mm) IEC 60243 ≥15 17.5
Volume resistivity (Ω.cm) IEC 60093 ≥1×1014 2.5×1014
