Heat Shrinkable Fiber Optic Splice Protector, WRSGX
Heat Shrinkable Fiber Optic Splice Protector, WRSGX
Request a Quote

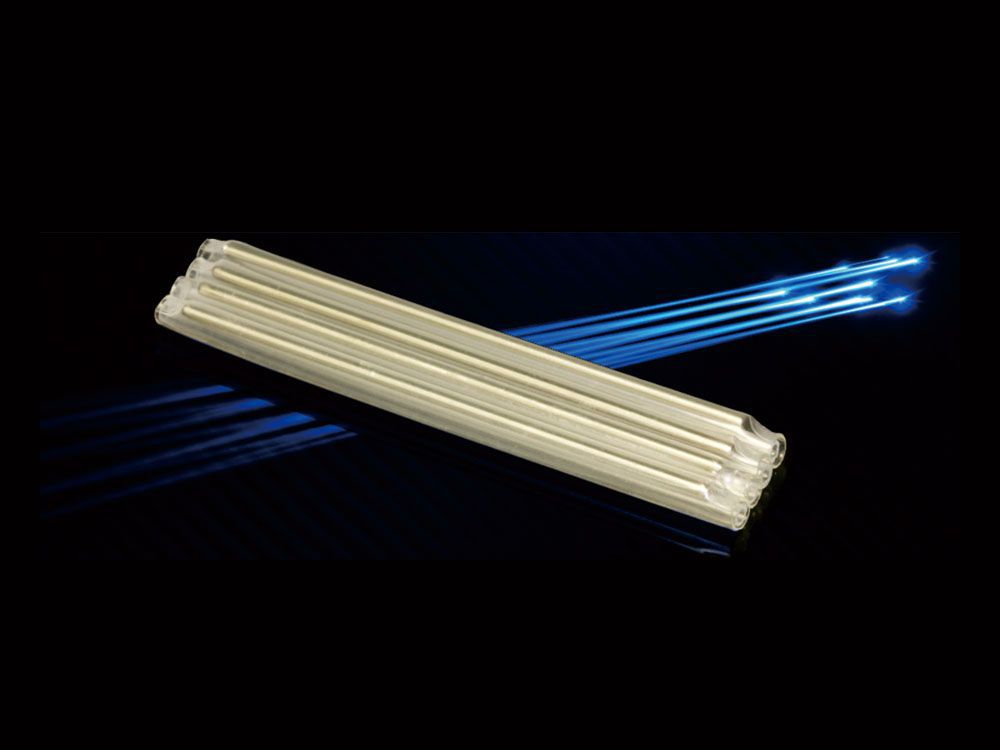

Heat Shrinkable Fiber Optic Splice Protector

Heat Shrink Splice Protection Sleeve

Model: WRSGX

WRSGX heat shrink tubing is heat shrinkable fiber optic splice protector designed to protect the bare fiber portion of a fusion splice, guaranteeing mechanical and environmental protection of fusion splices.


Applications
  • Optical distribution frame
  • Fiber optic splice closure
  • Fiber optic termination box
Components
  • Clear outer heat-shrink tube
  • Low temperature hot-melt adhesive sleeve to encapsulate the splice
  • Stainless steel rod for single fiber splices to ensure proper alignment and rigidity
Features
  • Excellent reinforcement of fusion splicing portion
  • Reliable protection under any environmental conditions
  • Fits into most splice holders
  • Attenuation is almost zero, the signal transfer is more stable and faster
  • Quick shrink-down time and easy installation, reducing damage risk to optical fiber

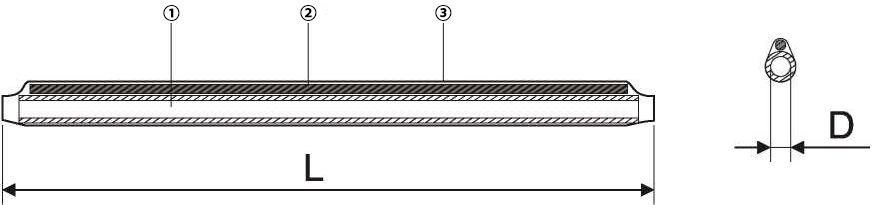

Construction
① Hot-melt adhesive
② Stainless steel rod
③ Heat-shrinkable tube
Construction
Type Stainless Steel Hot-Melt Adhesive Sleeve After Recovery Total Length
O.D Length I.D. (D) O. D L
Small Size 1.0 55 0.5 2.0 60
1.0 50 0.5 2.0 55
1.0 45 0.5 2.0 50
1.0 40 0.5 2.0 45
1.0 35 0.5 2.0 40
Normal Size 1.2 55 1.3 2.5 60
1.2 50 1.3 2.5 55
1.2 45 1.3 2.5 50
1.2 40 1.3 2.5 45
1.2 35 1.3 2.5 40
Large Size 1.5 55 1.5 3.0 60
1.5 50 1.5 3.0 55
1.5 45 1.5 3.0 50
1.5 40 1.5 3.0 45
1.5 35 1.5 3.0 40
