Dual Wall Heat Shrink Tubing, SBRS-(4X)GRO
Dual Wall Heat Shrink Tubing, SBRS-(4X)GRO
Dual Wall Heat Shrink Tubing, SBRS-(4X)GRO Dual Wall Heat Shrink Tubing, SBRS-(4X)GRO Dual Wall Heat Shrink Tubing, SBRS-(4X)GRO
Request a Quote

Dual Wall Heat Shrink Tubing

Model: SBRS-(4X)GRO

Semi-rigid adhesive-lined cross-linked polyolefin heat shrinkable tubing

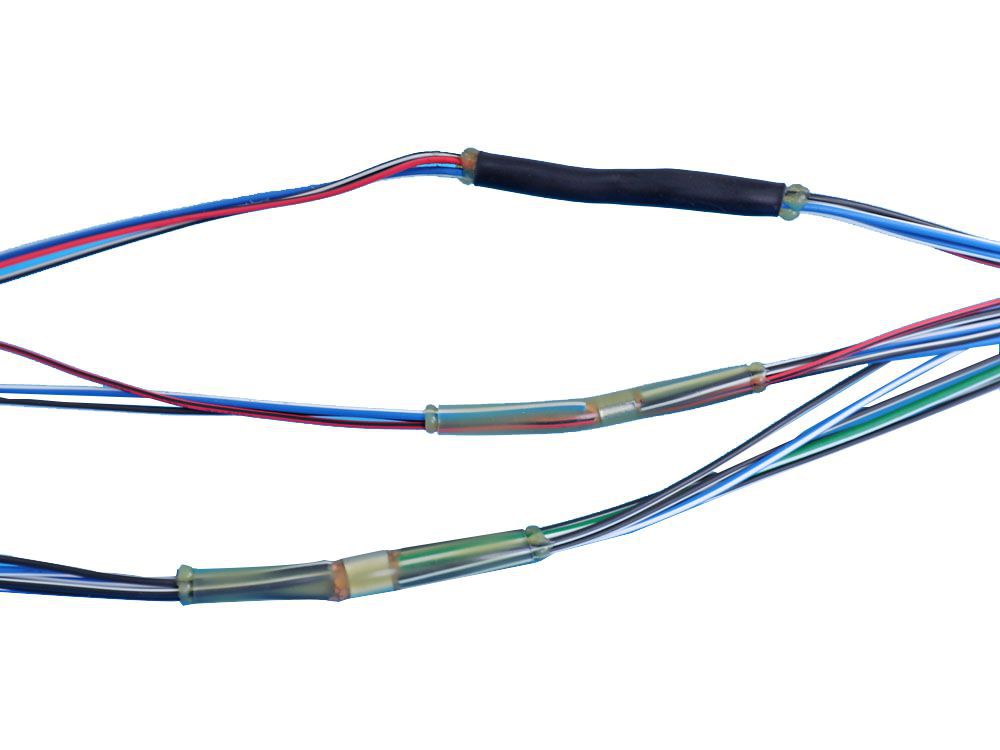

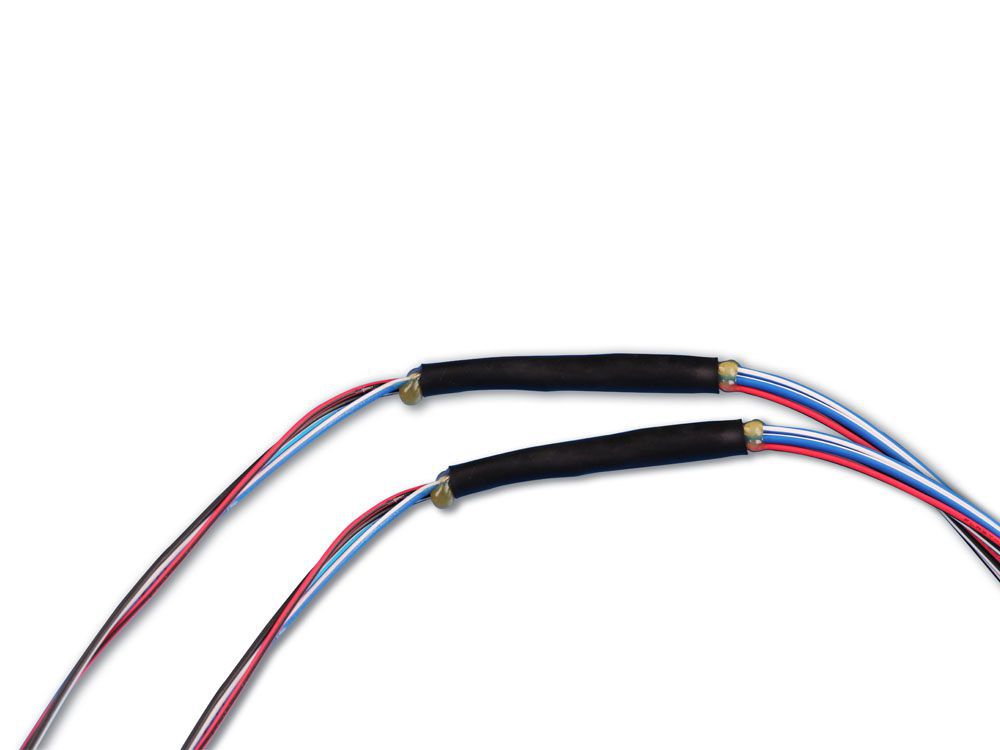

SBRS-(4X)GRO dual wall heat shrink tubing is 4:1 semi-rigid adhesive-lined heat shrinkable tubing designed for insulating, sealing and protecting wire splices, terminals, connectors and in-line electronic components from fluids, moisture, corrosion and abrasion.


Features
  • 4:1 shrink ratio
  • Super sealing against water, moisture or other contaminates
  • Continuous operating temperature: -45℃~125℃
  • Fully shrink temperature: ≥125℃
Technical Data
Property Test Method Standard Performance Typical Performance
Tensile strength (MPa) ASTM D2671 ≥10.4 11.5
Elongation (%) ASTM D2671 ≥300 450
Tensile strength after aging (MPa) UL224 158℃×168hr ≥7.3 8.5
Elongation after aging (%) UL224 158℃×168hr ≥200 350
Dielectric strength (kV/mm) IEC 60243 ≥15 17.5
Volume resistivity (Ω.cm) IEC 60093 ≥1×1014 2.5×1014
Adhesive
Property Test Method Standard Performance
Water absorption ASTM D570 <0.2%
Softening point (℃) ASTM E28 95±5
Peel strength (PE) ASTM D 1000 120N/25mm
Peel strength (AL) ASTM D 1000 80N/25mm
Dimensions
Size (mm) As Supplied (mm) After Recovery (mm) Standard Package (m/spool)
Min I.D. Max I.D. Total W.T. Adhesive Thickness
Ø4.0 ≥4.0 ≤1.00 1.40±0.30 0.70±0.20 200
Ø5.75 ≥5.8 ≤1.27 1.70±0.30 0.80±0.20 100
Ø7.4 ≥7.4 ≤1.65 2.00±0.30 0.95±0.20 100
Ø10.8 ≥10.8 ≤2.41 2.45±0.40 1.20±0.20 50
Ø12.0 ≥12.0 ≤2.41 2.45±0.40 1.20±0.20 50
Ø14.0 ≥14.0 ≤3.50 2.50±0.40 1.20±0.30 1.22
Ø16.0 ≥16.0 ≤4.00 2.60±0.40 1.35±0.30 1.22
Ø17.78 ≥17.80 ≤4.20 2.60±0.40 1.35±0.30 1.22
