Special Purpose Heat Shrink Tubing

Model: WRSJD

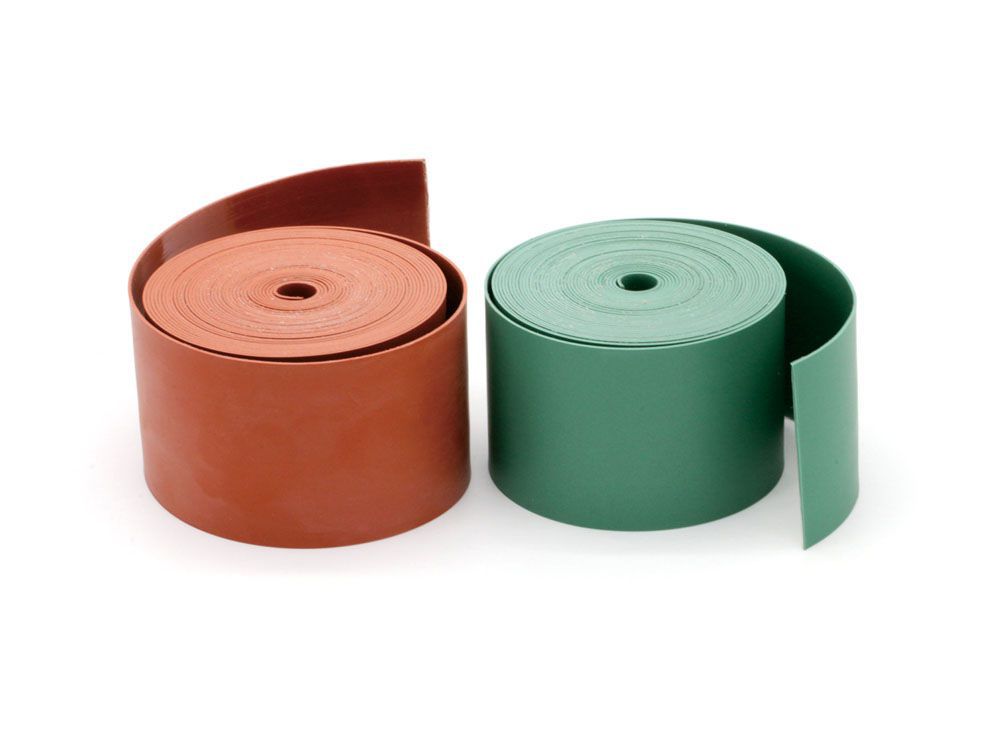

Adhesive lined cross-linked polyolefin heat shrink tape

WRSJD is adhesive lined cross-linked polyolefin heat shrink tape specifically designed for sealing joints on spiral, flexible or flat oval ducts used in heating, ventilating, air conditioning and exhaust recovery systems.

Features
  • Shrink ratio: 1.4:1
  • Eliminating air leakage in vacuum and ventilation systems
  • Sealing against moisture ingress and other contaminants
  • Strong adhesive bonding to galvanized steel, aluminum and stainless steel
  • Effective and reproducible sealing ensures resistance to bending, vibrations and other mechanical stresses over a wide range of temperatures
  • Application process is quick, simple and clean
  • Continuous operating temperature: -45℃～125℃
  • Fully shrink temperature: 120℃
  • Color: black, red, green, yellow
Dimensions
Order Code Width Wall Thickness Standard Length (m)
WRSJD-0825 25 0.80±0.10 5,10
WRSJD-0850 50 0.80±0.10 5,10
WRSJD-08100 100 0.80±0.10 5,10
WRSJD-1025 25 1.00±0.10 5,10
WRSJD-1050 50 1.00±0.10 5,10
WRSJD-10100 100 1.00±0.10 5,10
Technical Data
Property Test Method Standard Performance Typical Performance
Tensile strength (MPa) ASTM D2671 ≥10.4 11.5
Elongation (%) ASTM D2671 ≥300 450
Tensile strength after aging (MPa) Ul224 158℃×168hr ≥7.3 8.5
Elongation after aging (%) Ul224 158℃×168hr ≥200 350
Dielectric strength (kV/mm) IEC243 ≥15 17.5
Volume resistivity (Ω.cm) ASTM D876 ≥1×1014 2.5×1014
Adhesive
Property Test Method Standard Performance
Water absorption ASTM D570 ≦0.2%
Softening point (℃) ASTM E28 95
Peel strength (PE) ASTM D 1000 120N/25mm
Peel strength (AL) ASTM D 1000 80N/25mm
