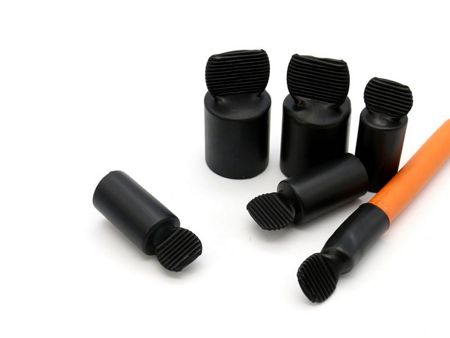

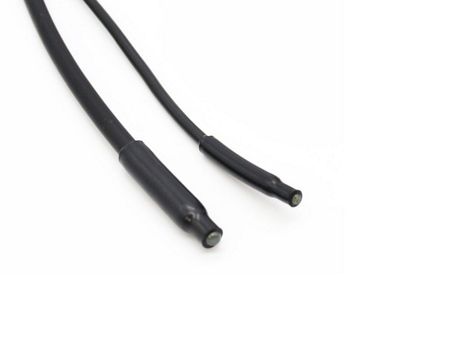

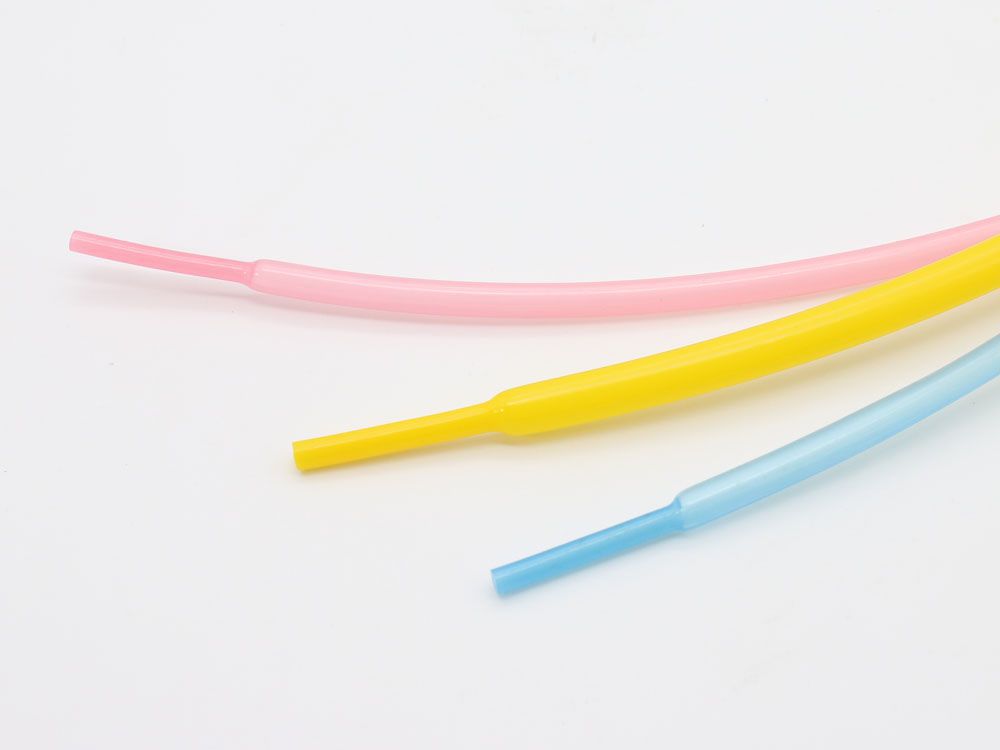

Heat Shrink End Cap
Model: SBRS-DZ
Semi-rigid, adhesive-lined heat shrinkable insulation connector

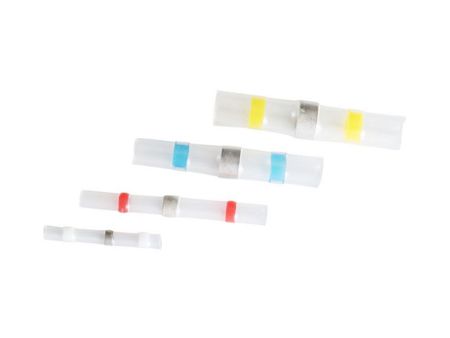

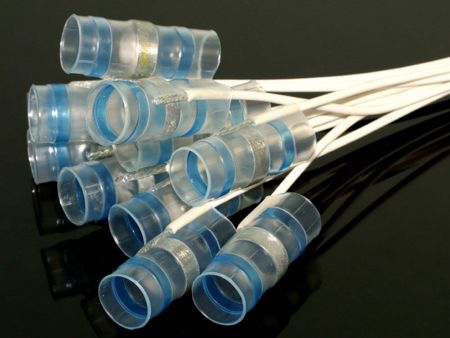

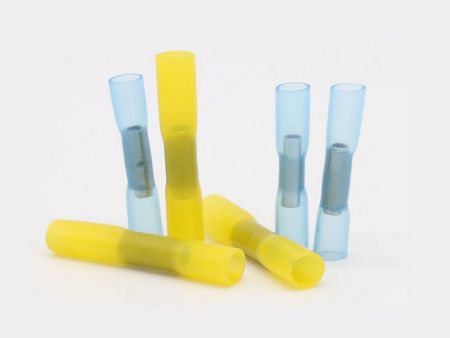

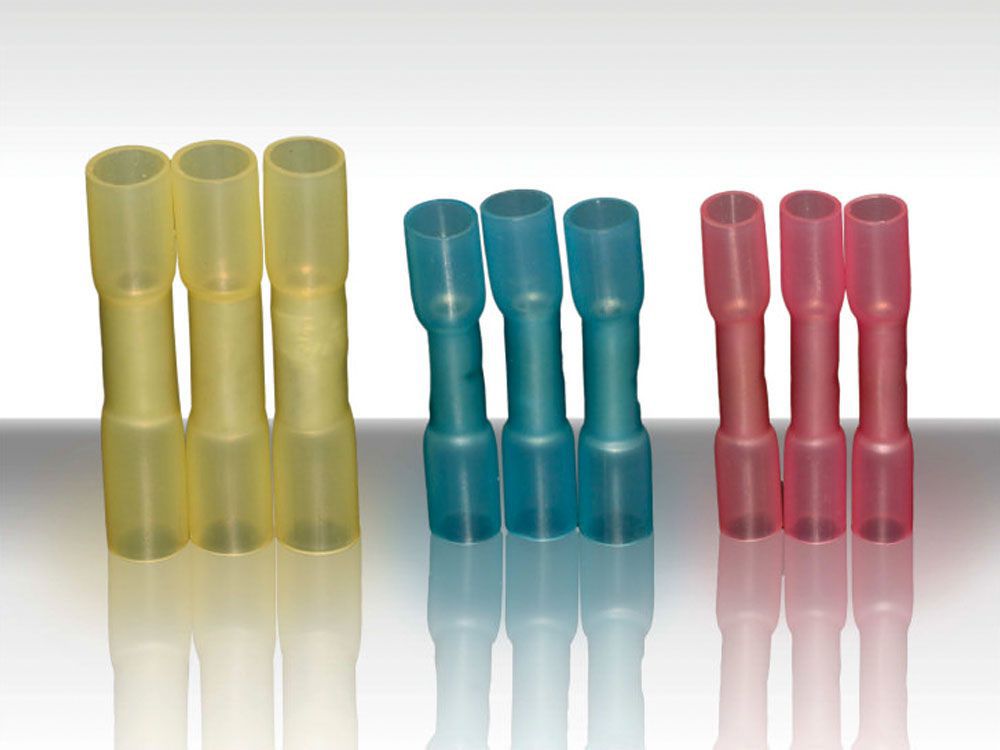

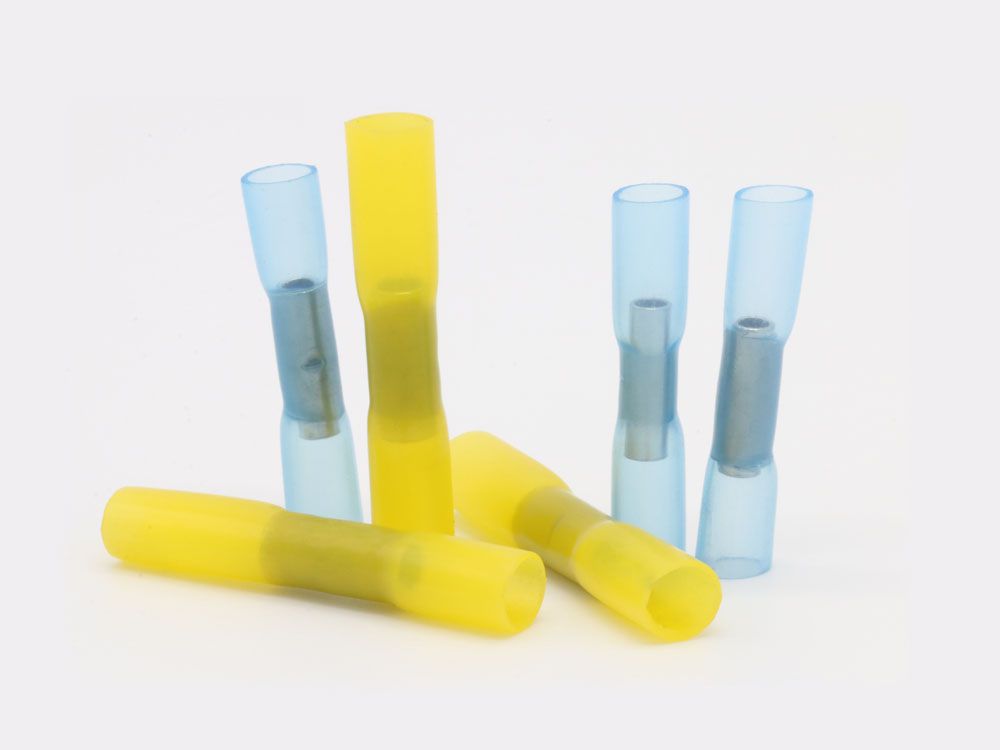

SBRS-DZ heat shrink butt connector is clear semi-rigid adhesive-lined tubing with integral solderless splice connector. These heat shrink butt connectors ensure an airtight seal with ideal fit, providing entirely waterproof and corrosion resistant connection.
Features
- 4:1 shrink ratio
- Exceptional clarity for visual confirmation of seal
- Sealing and protection against water, corrosive compounds, moisture and contaminants
- Durable heat shrink tubing resists abrasion, crimp tool damage and splitting
- Shrinks 40% faster than nylon, preventing wire damage
- Inner adhesive bonds to plastics, rubbers and metals
- In compliance with OEM wiring specifications for installation and repair
- Continuous operating temperature: -45℃~125℃
- Minimum shrinking temperature: 80℃
Order Code | Size | Tube Diameter | Color | Standard Package | |||
AWG | mm2 | Expanded, Min (mm) | Recovered, Max (mm) | Length (mm) | |||
| 22-18 | 0.5-1.0 | 3.8 | 1.7 | 35.0 | Red | 1000pc/bag |
| 16-14 | 1.5-2.5 | 4.8 | 2.4 | 35.0 | Blue | 1000pc/bag |
| 12-10 | 4.0-6.0 | 5.7 | 3.6 | 42.0 | Yellow | 500pc/bag |
Property | Test Method | Standard Performance | Typical Performance |
Tensile strength (MPa) | ASTM D 2671 | ≥14 | 16 |
Elongation (%) | ASTM D 2671 | ≥200 | 450 |
Tensile strength after aging (MPa) | UL224 158℃×168hr | ≥7.3 | 15 |
Elongation after aging (%) | UL224 158℃×168hr | ≥100 | 350 |
Dielectric strength (kV/mm) | IEC 60243 | ≥15 | 17.5 |
Volume resistivity (Ω.cm) | IEC 60093 | ≥1×1014 | 2.5×1014 |
Property | Test Method | Standard Performance |
Water absorption | ASTM D 570 | <0.5% |
Softening point (℃) | ASTM E28 | 95±5 |
Peel strength (PE) | ASTM D 1000 | 120N/25mm |
Peel strength (AL) | ASTM D 1000 | 80N/25mm |
