Halogen-free Flame-retardant Heat Shrinkable Tubing, RSFR-MT-125H-ZR
Halogen-free Flame-retardant Heat Shrinkable Tubing, RSFR-MT-125H-ZR
Request a Quote

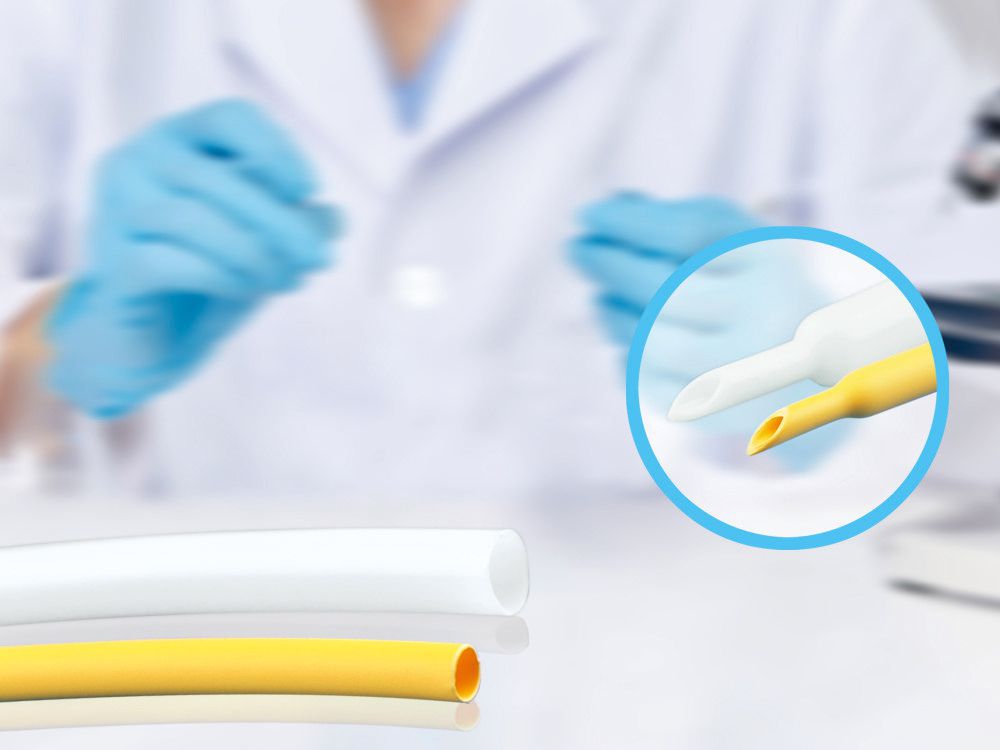

Halogen-free Flame-retardant Heat Shrinkable Tubing

Medical grade heat shrink tubing

Model: RSFR-MT-125H-ZR

RSFR-MT-125H-ZR medical grade heat shrink tubing is halogen-free flame-retardant heat shrinkable tubing made of cross-linked polyolefin, which meets the safety requirements of medical standards for human skin touch. This halogen-free flame-retardant heat shrinkable tubing offers excellent physical and chemical electrical properties and good flame retardancy, and can meet the needs of wire and cable permanent marking.


Features
  • Shrink rate: 2:1, 3:1
  • Operating temperature: -55°C ~+125°C
  • Initial shrink temperature: ≥+80℃
  • Superior electrical insulation
  • Thin wall, high flexibility, flame retardant
  • Compliant with ISO 10993-1
  • Environmental standard: RoHS
  • Standard color: black, white (other colors can be customized)

Properties
Performance Test Standard Standard Performance
Longitudinal change rate (%) ASTM D 2671 -10~+5
Tensile strength (MPa) ASTM D 2671 ≥10.4
Elongation at break (%) ASTM D 2671 ≥200
Tensile strength after heat aging (%) ASTM D 2671 ≥6.9
Elongation at break after heat aging (%) ASTM D 2671 ≥100
Low temperature bending (-55°C,4h) ASM-DTL-223053 No cracking
Thermal shock (225°C,4h) — No cracking, no flow, no dripping
Dielectric strength (kV/mm) ASTM D 149 ≥15.7
Volume resistivity (Ω.cm) IEC 60093 ≥1012
Flame retardant ASTM D 2671 B method Pass
Water absorption (%) (23°C, 24h) ASTM D 2671 ≤0.5
Size Chart(2:1 Table)
Part No. As Supplied Inside Diameter, Min (D) Recovered Size
Inside Diameter, Max (d) Wall Thickness (W)
(mm) (mm) (mm)
RSFR-MT-125H-2X-1.6-* 1.6 ≤0.79 0.44±0.06
RSFR-MT-125H-2X-2.4-* 2.4 ≤1.18 0.46±0.06
RSFR-MT-125H-2X-3.2-* 3.2 ≤1.59 0.58±0.06
RSFR-MT-125H-2X-4.8-* 4.8 ≤2.36 0.58±0.06
RSFR-MT-125H-2X-6.4-* 6.4 ≤3.18 0.62±0.06
RSFR-MT-125H-2X-9.5-* 9.5 ≤4.75 0.63±0.06
RSFR-MT-125H-2X-12.7-* 12.7 ≤6.35 0.65±0.07
RSFR-MT-125H-2X-19.0-* 19.1 ≤9.53 0.68±0.07
RSFR-MT-125H-2X-25.0-* 25.4 ≤12.70 0.70±0.07
RSFR-MT-125H-2X-38.0-* 38.1 ≤19.10 0.75±0.08
RSFR-MT-125H-2X-51.0-* 50.8 ≤25.40 0.75±0.08
RSFR-MT-125H-2X-76.0-* 76.2 ≤38.10 0.75±0.09
Size Chart(3:1 Table)
Part No. As Supplied Inside Diameter, Min (D) Recovered Size
Inside Diameter, Max (d) Wall Thickness (W)
(mm) (mm) (mm)
RSFR-MT-125H-3X-1.6-* 1.6 ≤0.57 0.57±0.06
RSFR-MT-125H-3X-2.4-* 2.4 ≤0.86 0.61±0.06
RSFR-MT-125H-3X-3.2-* 3.2 ≤1.10 0.61±0.06
RSFR-MT-125H-3X-4.8-* 4.8 ≤1.70 0.70±0.06
RSFR-MT-125H-3X-6.4-* 6.4 ≤2.36 0.75±0.06
RSFR-MT-125H-3X-9.5-* 9.5 ≤3.18 0.80±0.06
RSFR-MT-125H-3X-12.7-* 12.7 ≤4.75 0.84±0.07
RSFR-MT-125H-3X-19.0-* 19.1 ≤6.35 0.90±0.07
RSFR-MT-125H-3X-25.0-* 25.4 ≤8.47 0.90±0.07
RSFR-MT-125H-3X-38.0-* 38.1 ≤12.90 0.94±0.08
RSFR-MT-125H-3X-51.0-* 50.8 ≤17.20 0.95±0.08
RSFR-MT-125H-3X-76.0-* 76.2 ≤25.80 1.03±0.09
